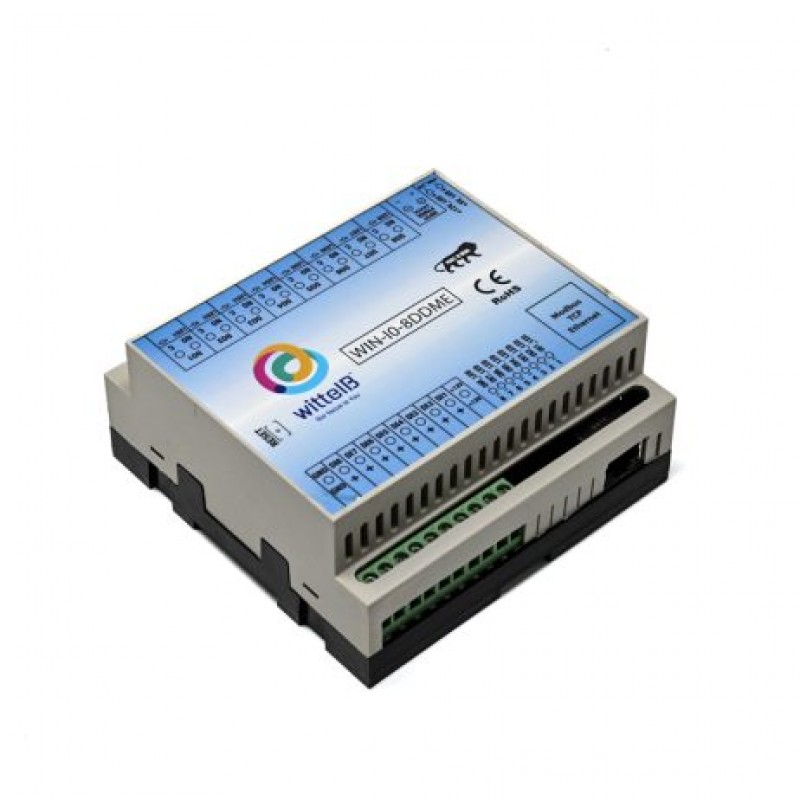

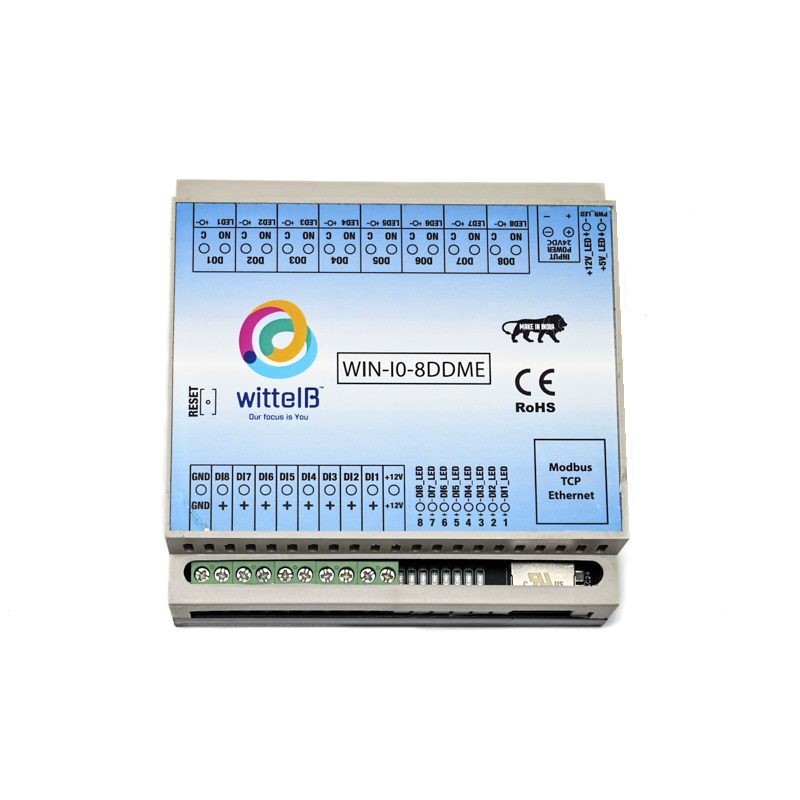

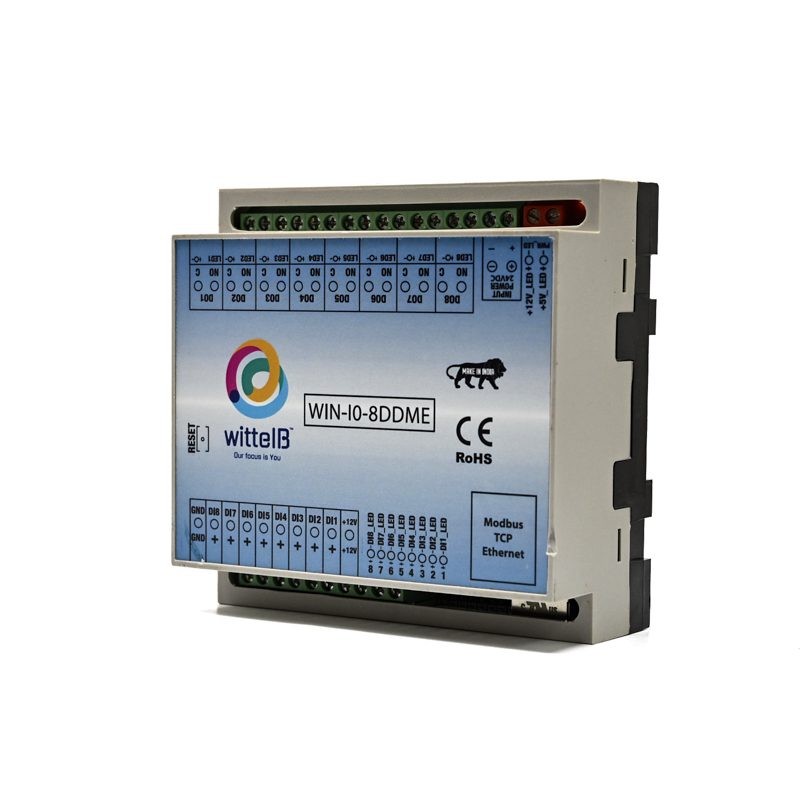

WittelB -WIN-IO-8DDME-IO Module with 16 Digital Inputs with Modbus TCP Ethernet

The WIN-IO-8DDME-IO Module with 16 Digital Inputs is a reliable I/O device designed for Modbus TCP communication over Ethernet. It features 8 digital inputs (DI) with a voltage range of 3.3V to 30V DC and 8 relay outputs (DO) capable of handling up to 10A at 240VAC and 28VDC. The module is DIN rail mountable with LED indicators for each port and incorporates protection against reverse polarity. It operates with a 12-24 VDC or 24 V AC/DC power supply and supports communication speeds of 10/100 Mbps. The device is ideal for industrial automation and control systems, providing fast response times and easy configuration via a web interface.

Features:

1. Modbus TCP Communication for easy integration.
2. 8 Digital Inputs (3.3V to 30V DC, optically isolated).
3. 8 Relay Outputs (10A, 240VAC/28VDC).
4. Reverse Polarity Protection with resettable fuses.
5. Power Supply: 12-24V DC or 24V AC/DC.
6. Communication Speed: 10/100 Mbps Ethernet.
7. Web Interface Configuration for easy setup.
8. Operating Temp: 060C, Storage Temp: -2070C.

Package Includes:

1 x WIN IO 8DDME-IO Module with 16 Digital Inputs with Modbus TCP Ethernet
