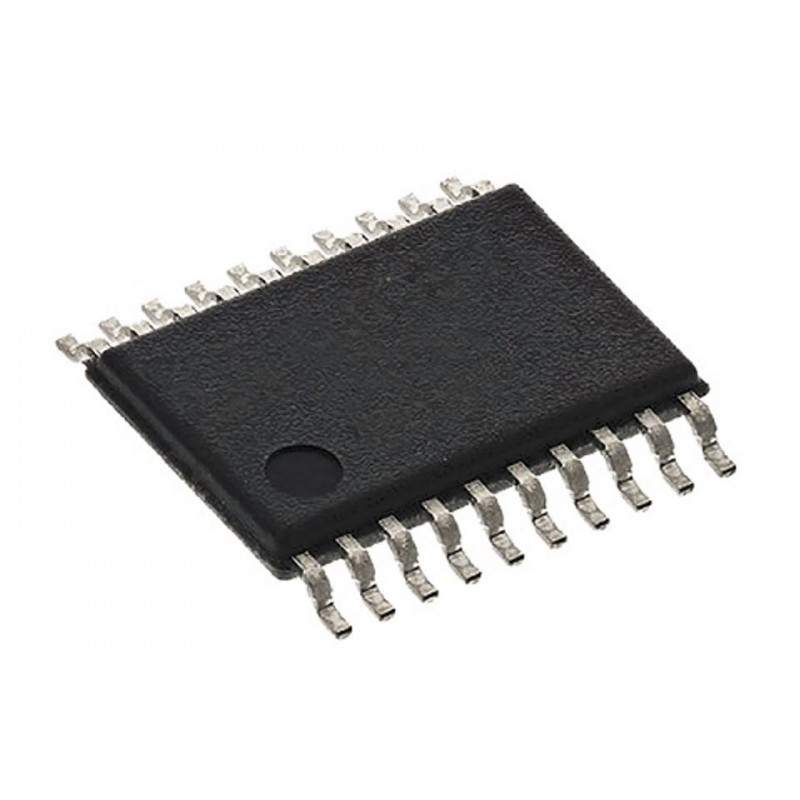

74HC540 IC - (SMD Package) - Octal 3-state Inverting Buffer IC (74540 IC)

  • Product Code: EPI4143
  • Availability: 213

0 reviews Write a review

  • Rs.35.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The 74HC540 is identical in pinout to the LS540. The device inputs are compatible with Standard CMOS outputs. External pull−up resistors make them compatible with LSTTL outputs. The HC540A is an octal inverting buffer/line driver/line receiver designed to be used with 3−state memory address drivers, clock drivers, and other bus−oriented systems. This device features inputs and outputs on opposite sides of the package and two ANDed active−low output enables.

Features:-

• Output Drive Capability: 15 LSTTL Loads

• Outputs Directly Interface to CMOS, NMOS, and TTL

• Operating Voltage Range: 2.0 to 6.0 V

• Low Input Current: 1 A

• High Noise Immunity Characteristic of CMOS Devices

• In Compliance With the JEDEC Standard No. 7 A Requirements

• Chip Complexity: 124 FETs or 31 Equivalent Gates

• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

• These Devices are Pb−Free and are RoHS Compliant

Specification:-

Symbol Parameter Value Unit
VCC Supply Voltage − 0.5 to + 7.0V V
VI DC Input Voltage  –0.5 to VCC + 0.5 V
VO DC Output Voltage −0.5 ≤ VO ≤ VCC + 0.5 V
IIK DC Input Diode Current ±20 mA
IOK DC Output Diode Current ±35 mA
IO Output Current ± 35 mA
ICC or IGND DC VCC or GND Current, per pin ± 75 mA
TSTG Storage Temperature Range − 65°C to + 150 °C
PD Power Dissipation 500  mW
TL Lead Temperature 260 °C
