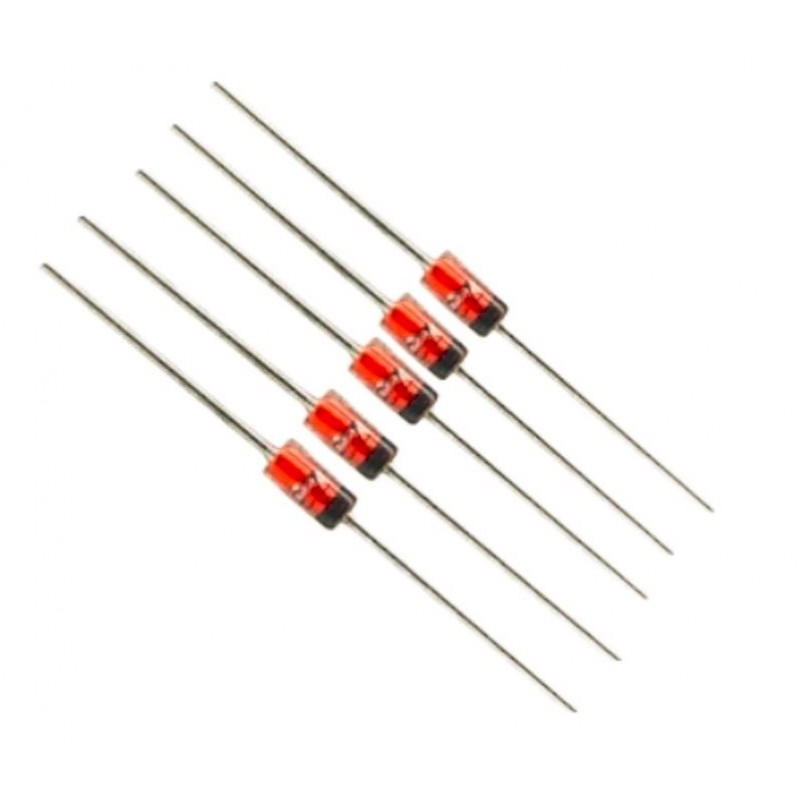

24V 1W Zener Diode - 5 Pieces Pack

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

Features:-

• Silicon Planar Power Zener Diodes

• For use in stabilizing and clipping circuits with high power rating.

• Standard Zener voltage tolerance is ±10%. Add suffix “A” for ±5% tolerance. Other Zener voltages and tolerances are available upon request.

• These diodes are also available in the MELF case with type designation ZM4728 thru ZM4764

Mechanical Data:-

• Case: DO-41 Glass Case

• Weight: approx. 0.35 g

Specification:-

Symbol	Parameter	Values	Units
Ptot	Power Dissipation at Tamb = 25°C	1.0	Watts
RΘJA	Thermal Resistance Junction to Ambient Air	170	°C/W
VF	Forward Voltage at IF = 200 mA	1.2	V
TJ	Maximum Junction Temperature	175	°C
TSTG	Storage Temperature Range	– 65 to +175	°C


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP	Rs. 17.7 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.
