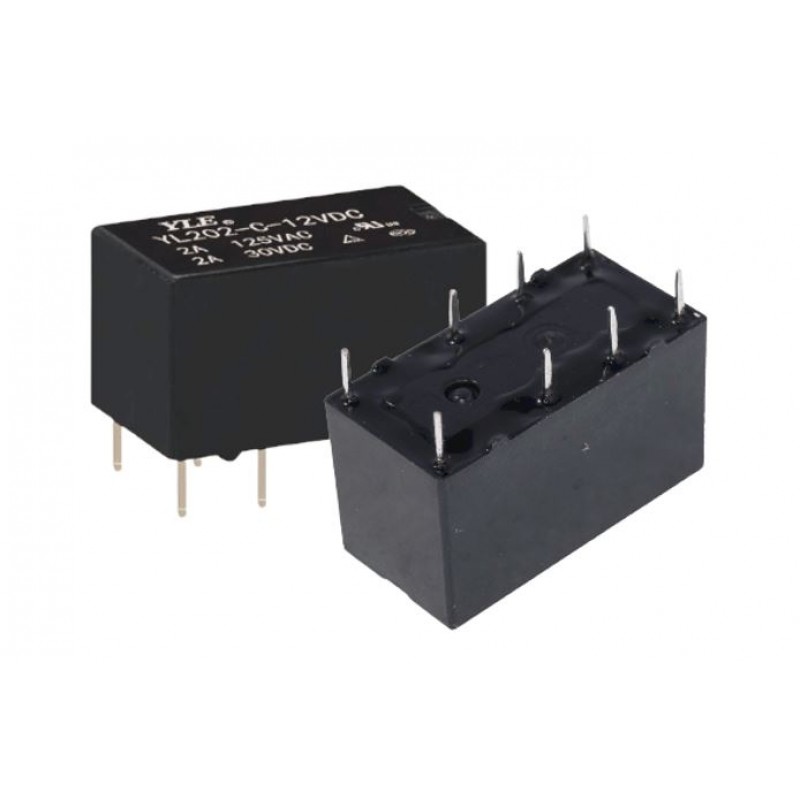

YLE 12V 2A DC YL202-C 8 Pin DPDT PCB Mount Telecom Relay
- Product Code: EPI24000
- Availability: Out Of Stock
-
Rs.48.00
- (Excluding 18% GST)
OR
Miniature high power relay offers low height, 2A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.
Features and Specifications:
- Coil Voltage (DC) : 12 V
- Contact Arrangement : 2 Form C
- Contact Current Rating : 2 A
- Termination : PCB
- Mounting : DIP
- Contact capacity : AgNi+Au plated
- Construction : Plastic sealed
- Release time : < 4ms
- Contact plating : Au plated
- Operate time : < 7ms
- Dielectric strength (between coil & contacts) : 2000VAC 1min
- Ambient temperature : -40~85C
- Insulation resistance : 1000MOhm
- Max Switching Current (AC) : 2A
- Max Switching Voltage (VDC) : 120VDC
- Max Switching Voltage (VAC) : 240VAC
- Size : 20x10x11.5 ( in mm )
- Weight : 5gm
- Mechanical endurance : 100000000
- Electrical endurance : 100000
- Coil Power: Standard : 280mW to 580mW
Package Includes:
1 x YLE 12V 2A DC YL202-C 8 Pin DPDT PCB Mount Telecom Relay
