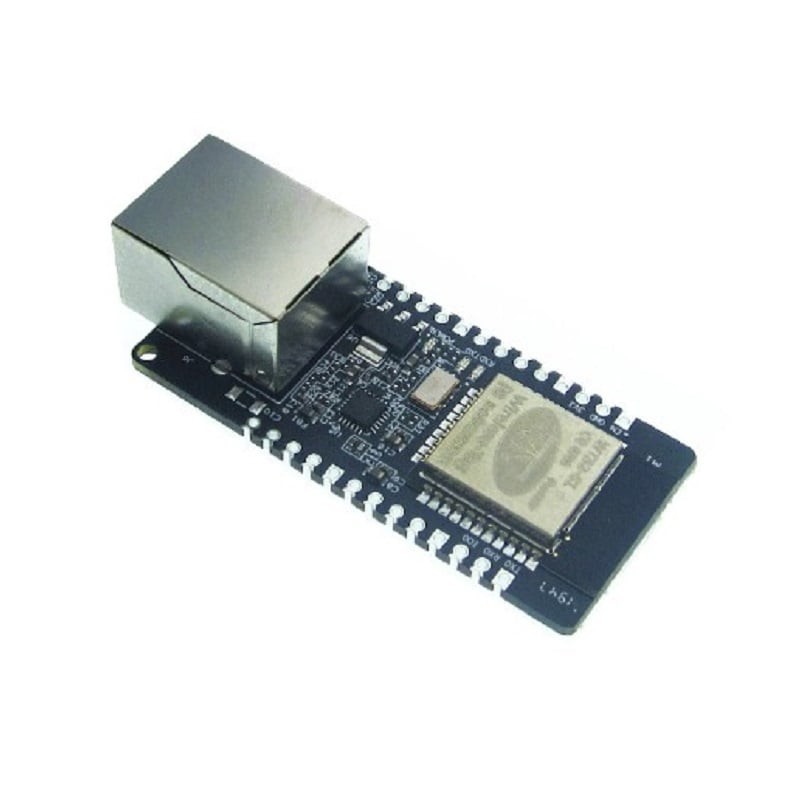

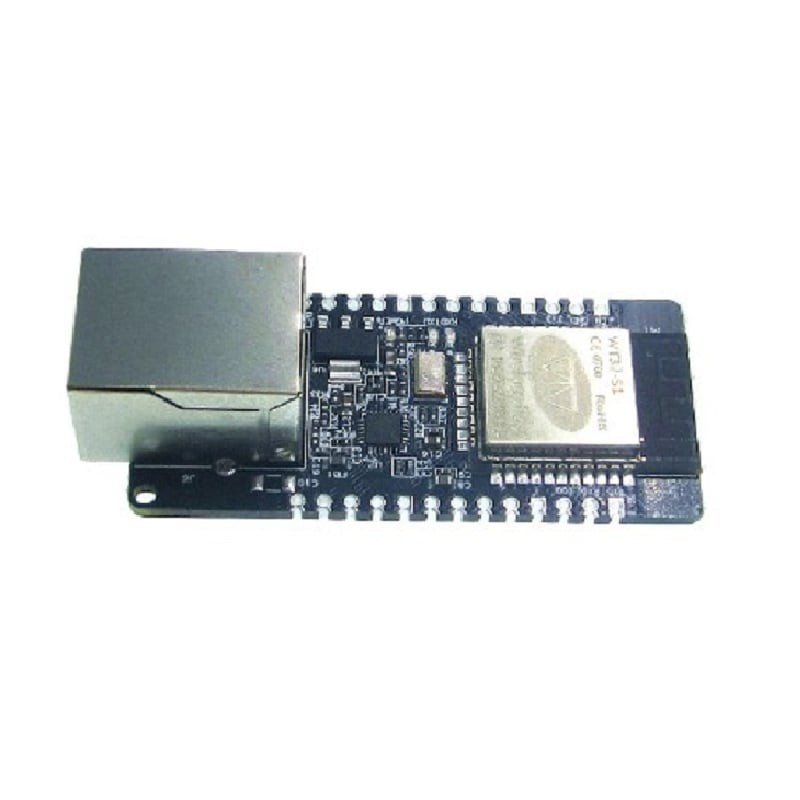

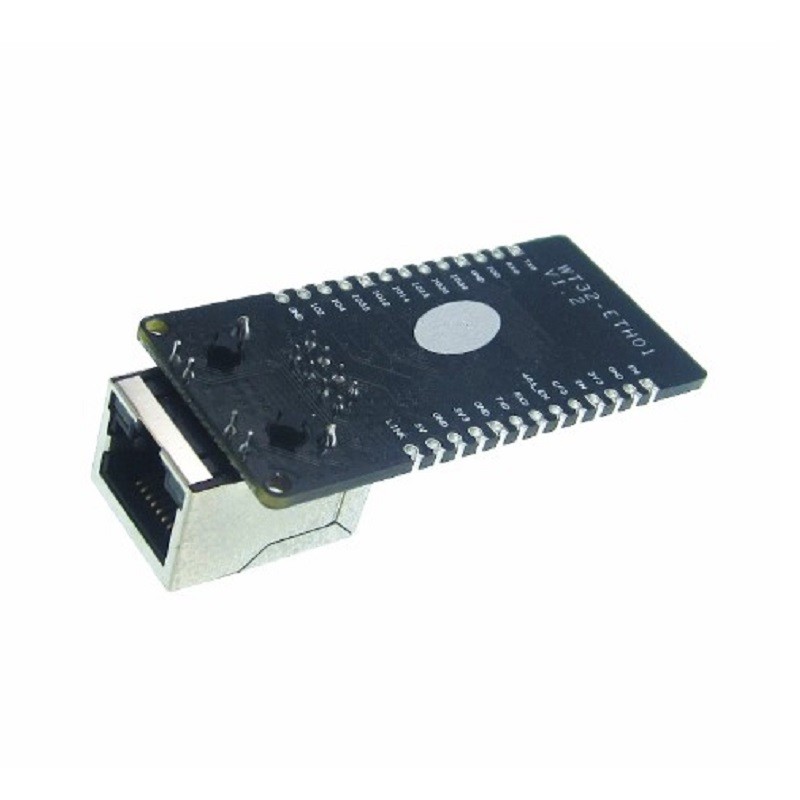

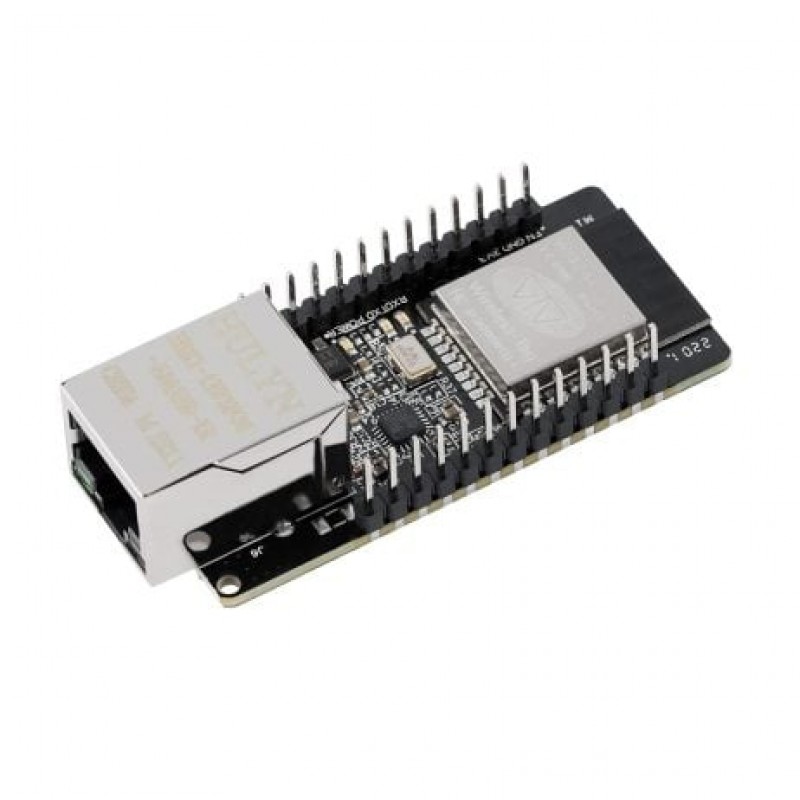

WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth

WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth is an embedded serial port to Ethernet module designed by Wireless-tag company based on ESP32 chipset, The module integrates the optimized TCP/IP protocol stack, which is convenient for users to complete the networking function of embedded devices , and greatly reduces the cost of development time. In addition, the module is compatible with the semi-welding disk and connector through hole design, the plate width is a general width, the module can be welded directly on the board, providing trust to your potential users.

Features:

1. Easy to use
2. Easy to interface
3. Good quality product
4. Used for Home automation, Smart home control panel
5. can also be used in Wearable electronics

Specifications:

1. Operating voltage : 5V, 3.3V
2. Model Name : WT32-ETH01
3. RAM Memory Installed Size : 4 MB
4. Processor Speed : 2.4 GHz
5. Hardware Interface : Bluetooth
6. Connector Type : Wi-Fi
7. Industrial operating temperature range : -40C -+85C
8. Serial port baud rate : 80-5000000
9. Network protocols : IPv4,TCP/UDP
10. Software encryption : AES/RSA/ECC/SHA
11. The product has passed FCC/CE/RoHS standard certification
12. Wi-Fi Protocol : 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps); A-MPDU and A-MSDU aggregation, support 0.4_s guard interval
13. Bluetooth Protocol: Compliant with Bluetooth v4.2 BR/EDR and BLE standards

Package Includes:

1 x WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth
