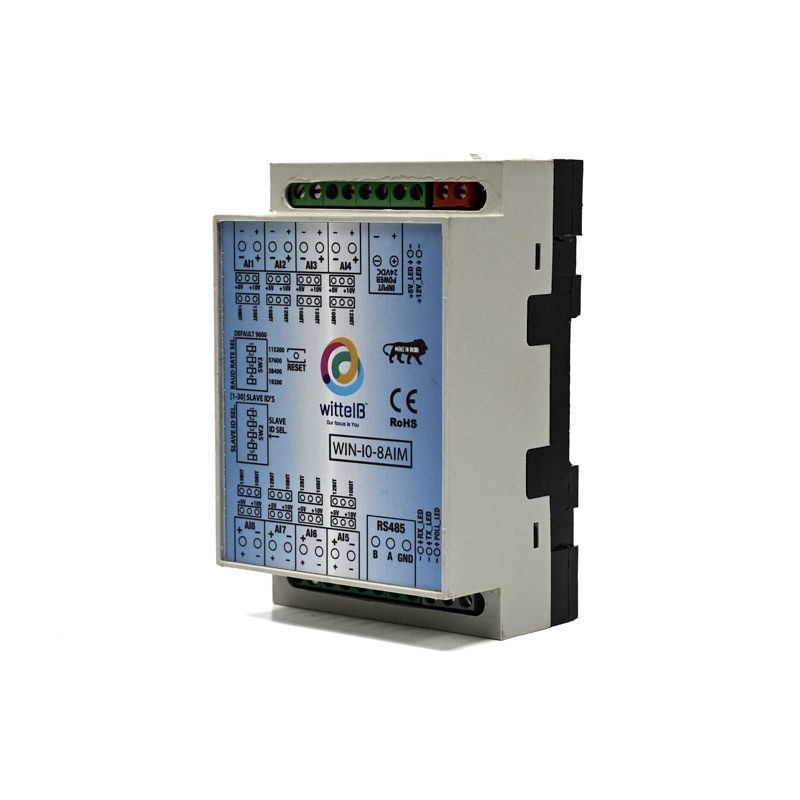

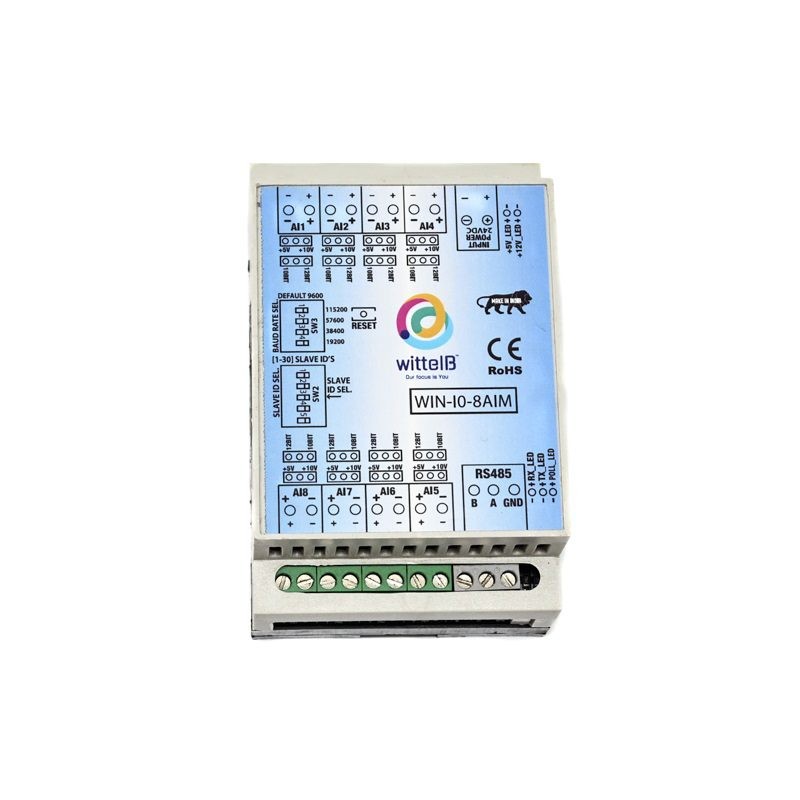

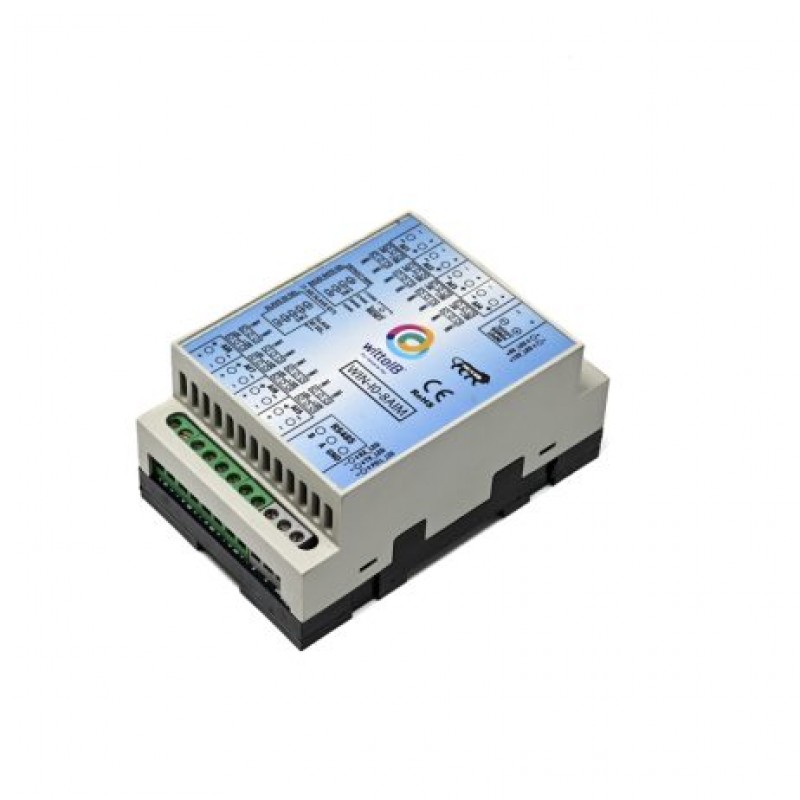

WittelB -WIN IO 8AIM-8 Port Analog Input Signal to Modbus RS485 Converter(12 Bit Resolution)
- Product Code: EPI28144
- Availability: 1
-
Rs.6898.00
- (Excluding 18% GST)
OR
These Converter modules communicate via RS485, enabling data transmission over distances of up to 700 meters without repeaters, although this range can be affected by the Modbus Master Devices signal strength. Designed for durability and low power consumption, these RS485 Digital IO modules are also easy to use.
WIN IO 8AIM RS485 Converter is housed in DIN rail mountable casings and feature exposed connectors and LED indicators for convenient operation. Configuration is handled via a DIP switch inside the enclosure for setting the Slave ID and Baud rate, with a soft configuration option also available. Finally, the modules are protected against reverse polarity connections on both the power and communication ports by resettable fuses.
Features:
- Long-Range Communication: RS485 communication up to 700 meters.
- Durable and Efficient: Sturdy construction and low power consumption.
- Easy Installation: DIN rail mountable with exposed connectors and LED indicators.
- Flexible Configuration: DIP switch for Slave ID and Baud rate, plus optional soft configuration.
- Reverse Polarity Protection: Resettable fuses for both power and communication ports.
- Isolated inputs and communication port
- Reverse polarity protection for input power
- ESD protection (IEC 61000-4-2, 30KV contact/air)
- EFT protection (IEC 61000-4-4, 50A)
- 750V isolation
- CRC error checking
- No on-board configuration required
Package Includes:
1 x WIN IO 8AIM-8 Port Analog Input Signal to Modbus RS485 Converter
Attachments :
DownloadBrand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
