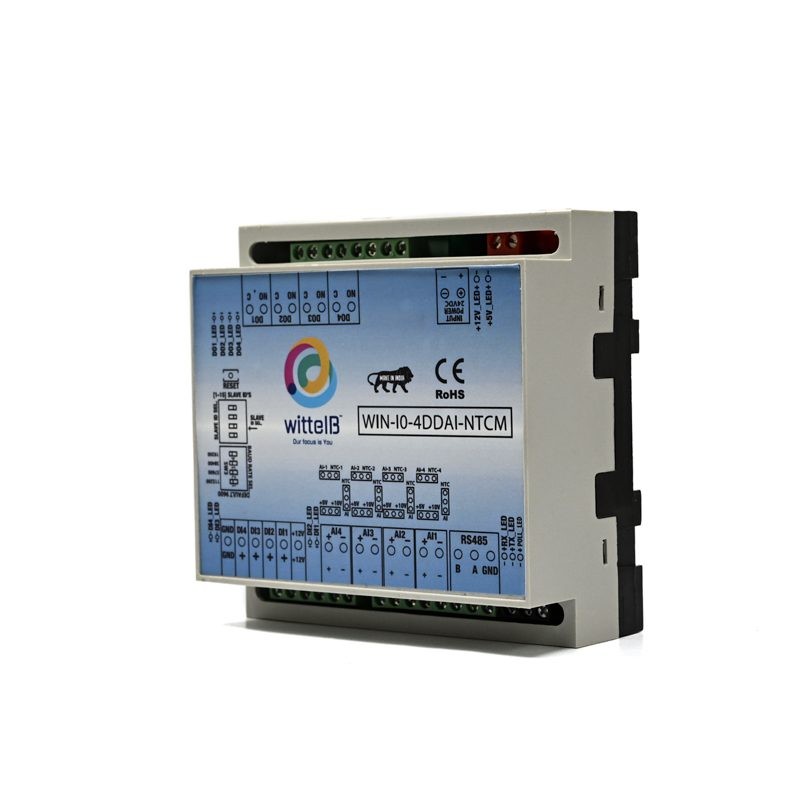

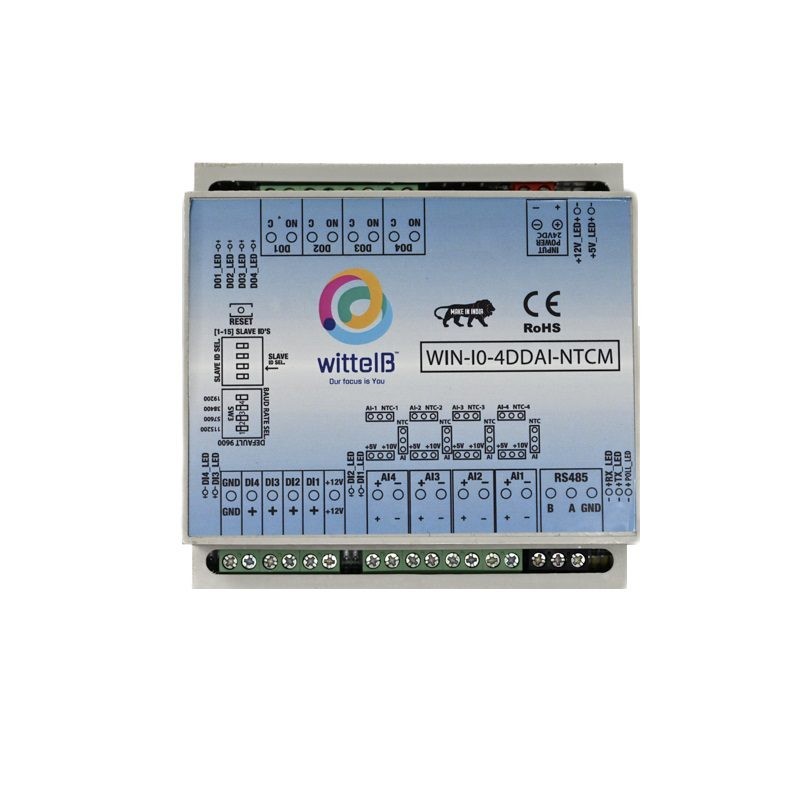

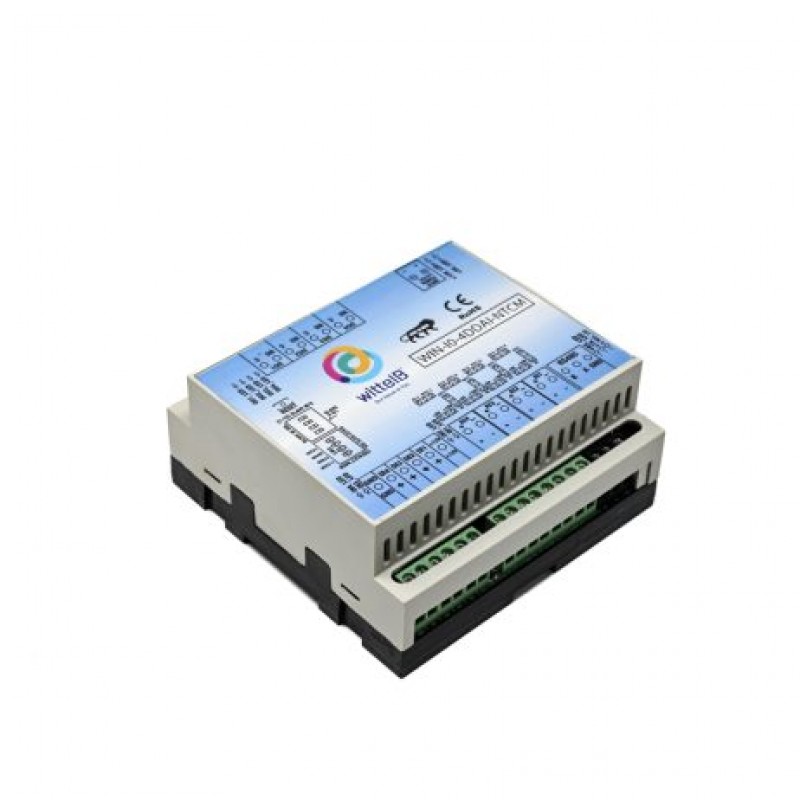

WittelB -WIN IO 4DDAI-NTCM-IO Module with 4 Digital inputs 4 Digital Outputs and 4 Analog Inputs with Modbus Rs485 interface(10 Bit Resolution)

The WIN IO 4DDAI-NTCM modules utilize Rs485 interface communication, enabling data transmission over distances up to 700 meters without repeaters, although this range can be affected by the Modbus Master Devices signal strength. These RS485 Digital IO modules are designed for durability, low power consumption, and ease of use.

They are housed in DIN rail mountable casings with exposed connectors and LED indicators. For convenient configuration, the DIP switches for setting the Slave ID and Baud rate are located inside the enclosure. Furthermore, the modules incorporate resettable fuses to protect against reverse polarity connections for both power and communication ports.

Features:

1. Long-Distance Communication: RS485 communication allows for data transfer up to 700 meters without repeaters (depending on the
2. Modbus Master Devices signal strength).
3. Durable and Low Power: Sturdy design and low power consumption for reliable operation.
4. Easy to Use: Simple setup and operation.
5. DIN Rail Mountable: Convenient mounting in standard industrial environments.
6. Exposed Connectors and LED Indicators: Easy connection and status monitoring.
7. Internal DIP Switches: Accessible DIP switches inside the enclosure for configuring Slave ID and Baud rate.
8. Reverse Polarity Protection: Resettable fuses protect against damage from reverse polarity connections for both power and communication.

Package Includes:

1 x WIN IO 4DDAI-NTCM-IO Module with 4 Digital inputs 4 Digital Outputs and 4 Analog Inputs with Modbus Rs485 interface
