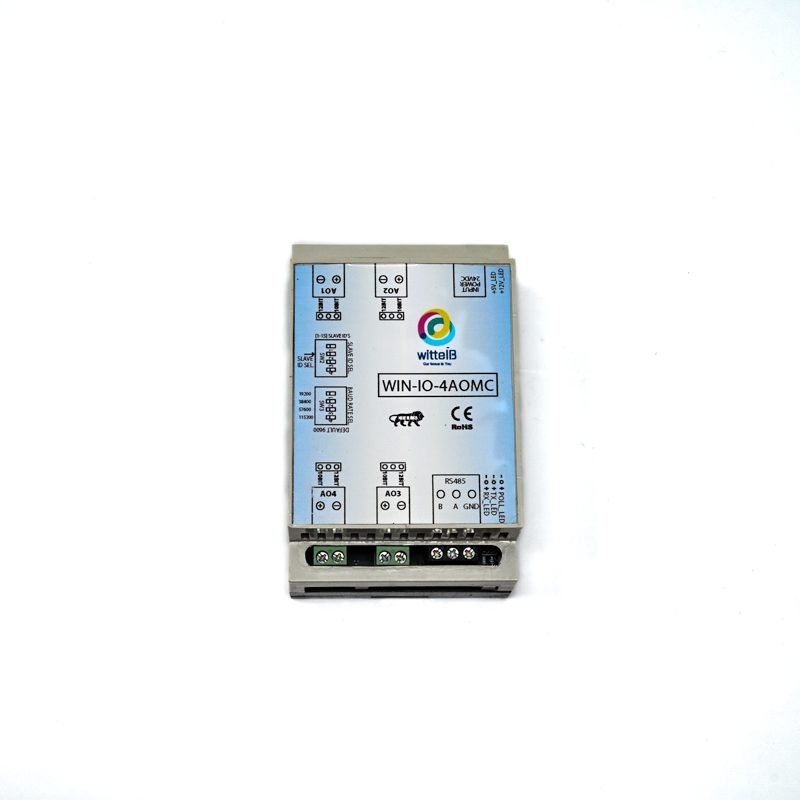

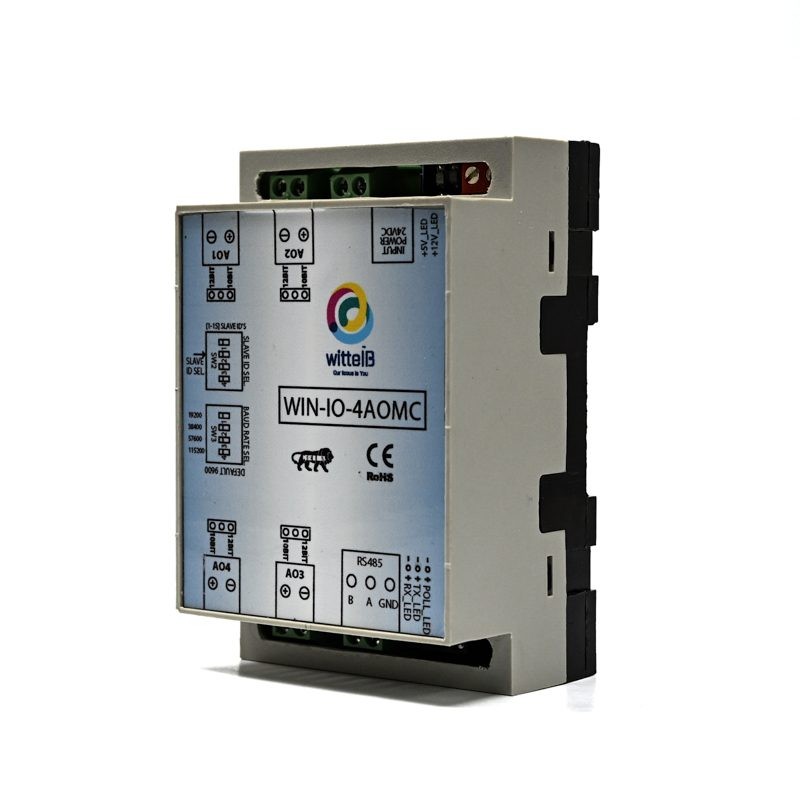

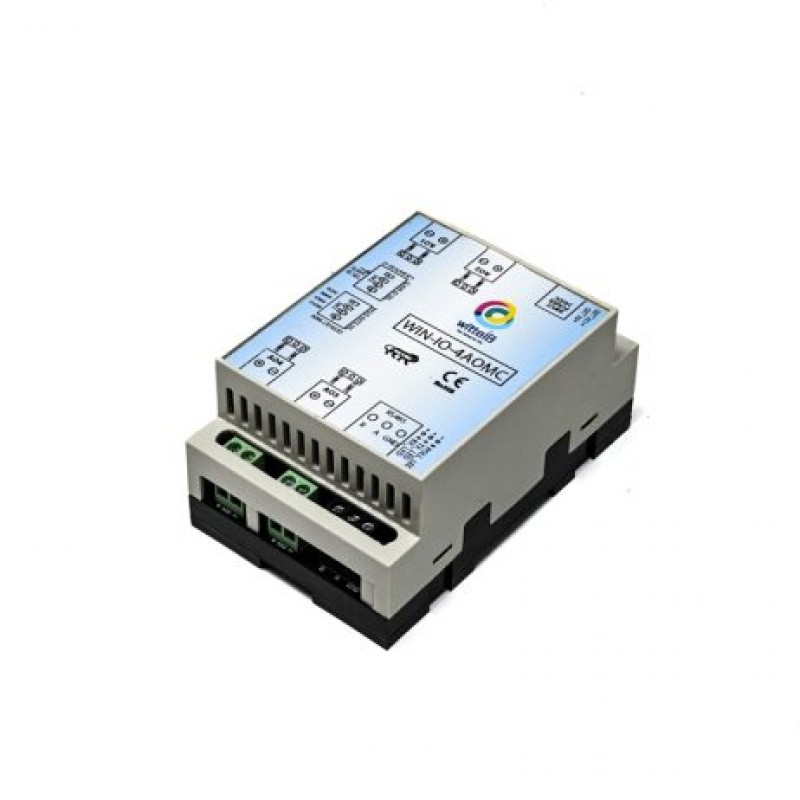

WittelB -WIN-IO-4AOMC-4 Port Analog Output Current to Modbus RS485 Converter(12 Bit Resolution)

The WIN-IO-4AOMC Analog Output Current to Modbus RS485 Converter is a 4-Port Analog Output to Modbus RS485 Converter designed for industrial automation. It offers 4 analog output channels with both 4-20 mA and 0-10 V outputs, providing 10-bit resolution (12-bit optional). The device supports RS485 Modbus RTU communication, with a range of up to 700 meters without repeaters. It features DIP switch-configurable baud rates (9600 to 115200 bps) and slave ID settings. The module is housed in a DIN rail mountable casing with reverse polarity protection, resettable fuses, and ESD safety. It operates within 0C to 60C and uses 12-24 VDC power.

Features:

1. 4 Output Channels: 4-20 mA and 0-10 V outputs.
2. Modbus RTU (RS485): Communication up to 700 meters.
3. Resolution: 10-bit
4. Configurable Baud Rate: 9600-115200 bps via DIP switch.
5. Slave ID: Set via DIP switch (IDs 1-15).
6. Reverse Polarity Protection: For power and communication ports.

Package Includes:

1 x WIN IO 4AOMC-4 Port Analog Output Current to Modbus RS485 Converter(12 Bit Resolution)
