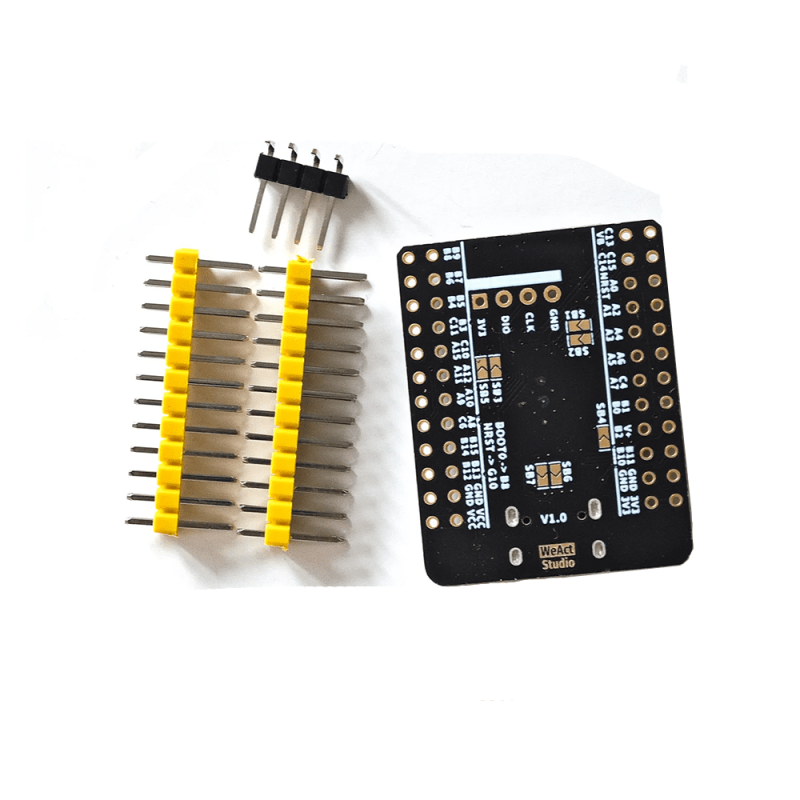

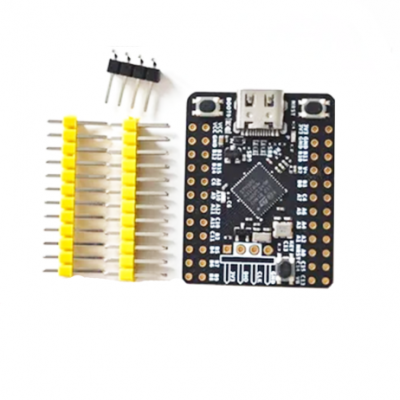

WeAct Studio STM32G431CBU6 Core Demo Board

The STM32G431x6/x8/xB microcontrollers feature a high-performance Arm Cortex-M4 core running at up to 170 MHz, with integrated FPU and DSP instructions for enhanced mathematical processing. Offering extensive memory options (up to 128 Kbytes of Flash and 32 Kbytes of SRAM), advanced peripherals including ADCs, DACs, comparators, and timers, and versatile communication interfaces such as FDCAN, USB, and SPI/I2S. With a wide operating temperature range and low-power modes, they are ideal for diverse embedded applications.

Features:

1. Arm Cortex-M4 CPU running at up to 170 MHz with FPU for enhanced mathematical processing.
2. Up to 128 Kbytes of Flash memory with ECC support.
   32 Kbytes of SRAM with hardware parity check, including CCM SRAM for routine boosting.
3. Multiple 12-bit ADCs (4 Msps), DAC channels, comparators, and operational amplifiers for analog signal processing.
   Comprehensive set of timers including general-purpose, PWM, and motor control timers.
4. Support for various communication protocols: FDCAN, USB 2.0, I2C, SPI, USART/UART, LPUART, and SAI (serial audio interface).
5. Memory protection unit (MPU) and proprietary code readout protection (PCROP) for enhanced security.
   Support for readout protection and write protection of embedded Flash memory and SRAM.
6. Wide operating voltage range (1.71 V to 3.6 V) and support for various low-power modes (sleep, stop, standby, shutdown).
   Independent power supply inputs for analog components (ADC, DAC, operational amplifiers).

Package Includes:

1 x WeAct Studio STM32G431CBU6 Core Demo Board
