WeAct Studio RA4M1 Renesas R7FA4M1AB3CFM Core Demo Board #AA0 R7FA4M1-3.3V IO R7FA4M1AB3CFM

The Renesas RA4M1 microcontroller (MCU) utilizes a high-performance Arm Cortex-M4 core and offers features like a segment LCD controller and capacitive touch sensing unit for advanced human-machine interface (HMI) designs. With 256kB of Code Flash, 16kB of SRAM, and versatile communication interfaces, its suitable for diverse applications. Supported by Renesas Flexible Software Package (FSP), it provides a flexible ecosystem for software development. Available in 3.3V IO and 5V IO versions.

Features:

1. Equipped with a 48MHz 32-Bit Arm Cortex-M4 core for efficient processing.
2. Offers 256kB of Code Flash, 16kB Parity SRAM, 16kB ECC SRAM, and 8kB Data Flash for versatile data storage.
3. Includes 25-channel 14-bit A/D converter, 12-bit DAC, OPAMP, low-power comparator, GPT timers, and more for diverse applications.
4. Supports USB2.0 FS, CAN, I2C, SCI, SPI, and SSI interfaces for seamless connectivity.
5. Features a segment LCD controller, capacitive touch sensing unit with 27 channels, and security functions like AES encryption and TRNG for enhanced data protection.

Package Includes:

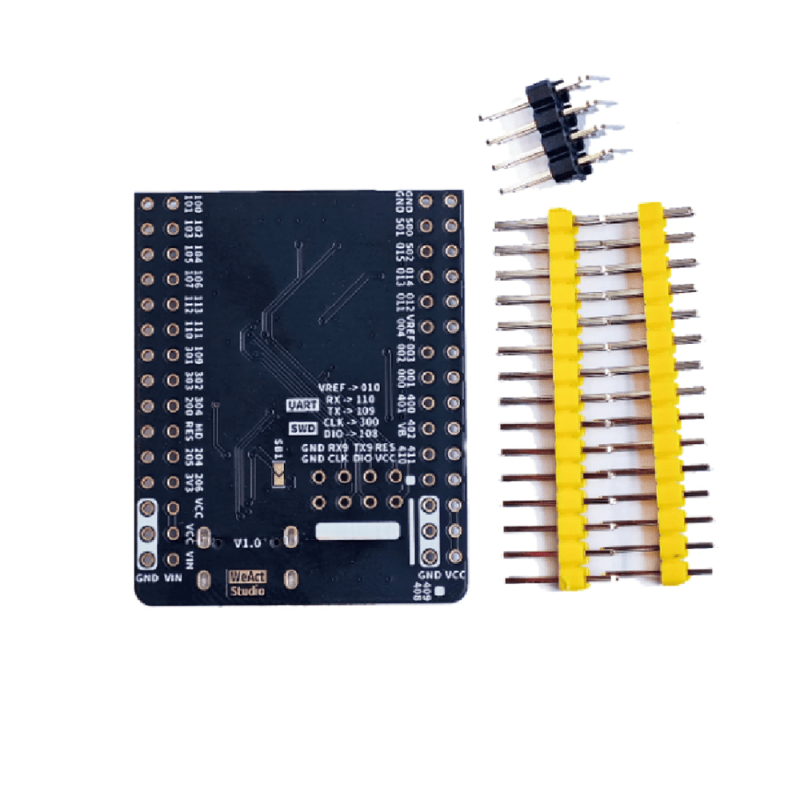

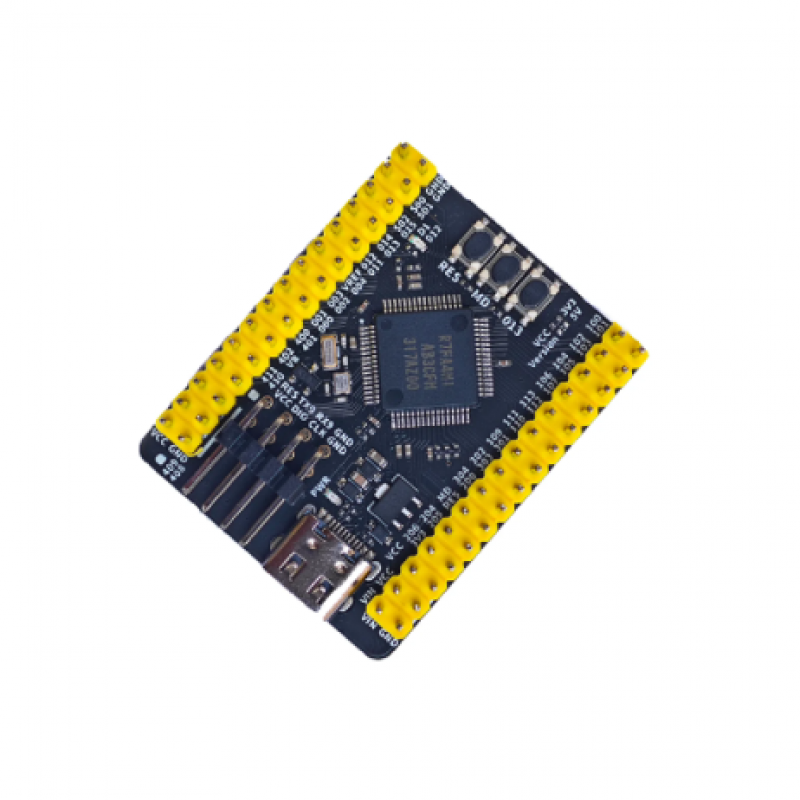

1 x WeAct Studio RA4M1 Renesas R7FA4M1AB3CFM Core Demo Board #AA0 R7FA4M1-3.3V IO R7FA4M1AB3CFM
