Waveshare RP2350 2.8inch Capacitive Touch Display Development Board, 240320, IPS Panel, 5-point Touch, SPI Interface Display, Accelerometer And Gyroscope Sensor

Waveshare RP2350 2.8inch Capacitive Touch Display Development Board-Touch-LCD-2.8 is a low-cost, high-performance MCU board designed by Waveshare. Onboard 2.8inch capacitive touch display, capable of smoothly running GUI programs such as LVGL. Integrates Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, making it easy to develop and integrate into products quickly.

Features:

1. RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Adopts unique dual-core and dual-architecture design: dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
3. 520KB of SRAM, and 16MB onboard Flash memory

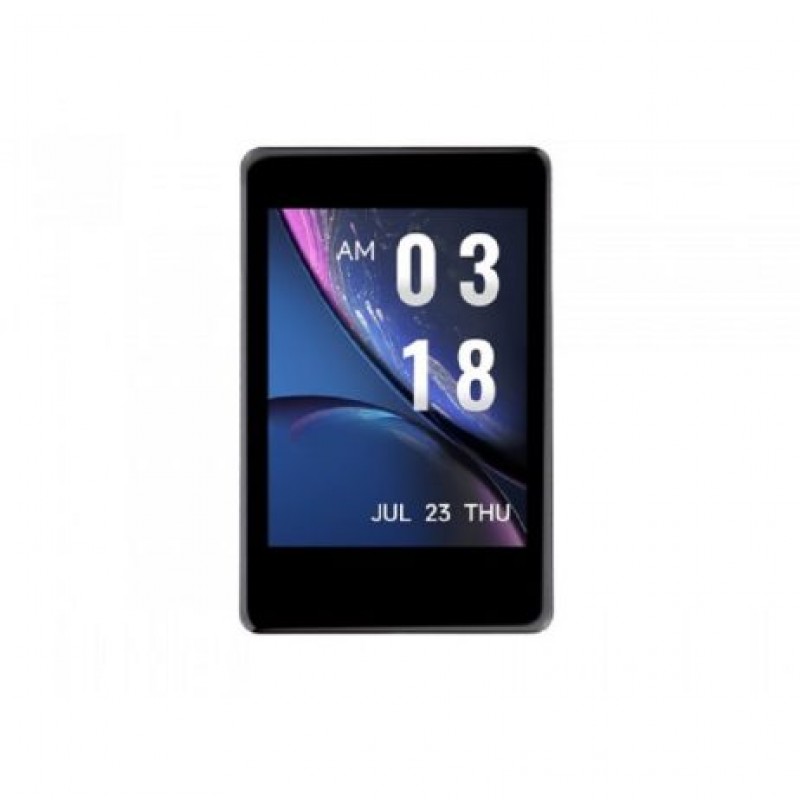

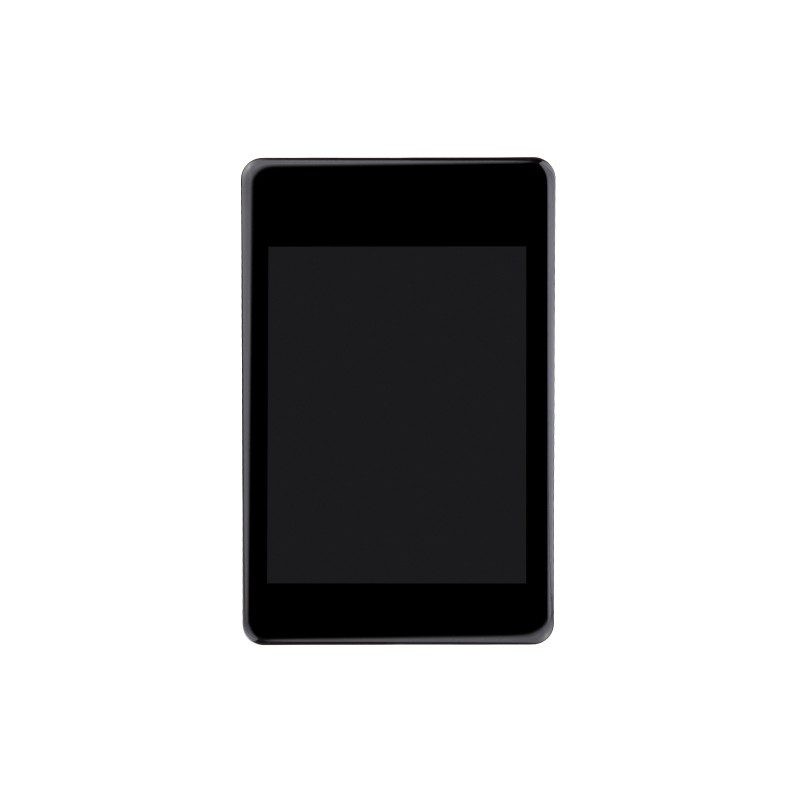

4. Onboard 2.8inch LCD display, 240320 resolution, 262K color
5. Supports capacitive touch function controlled via I2C interface, 5-point touch, with interrupt support
6. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port

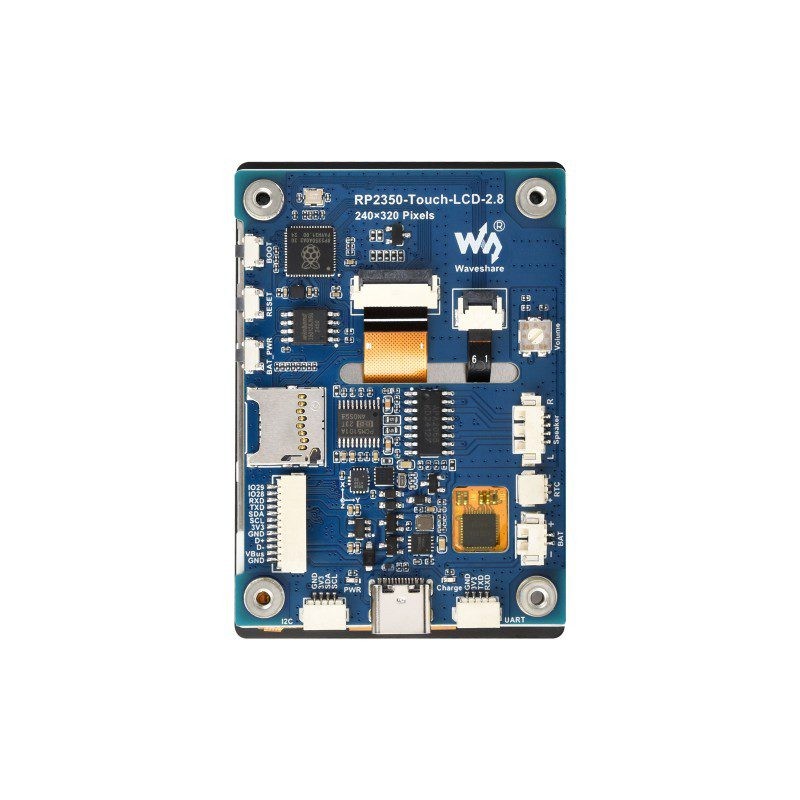

7. Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
8. Drag-and-drop programming using mass storage over USB
9. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Package Includes:

1 x RP2350-Touch-LCD-2.8
1 x 8 2W speaker
2 x SH1.0 4PIN cable
1 x SH1.0 12PIN cable
