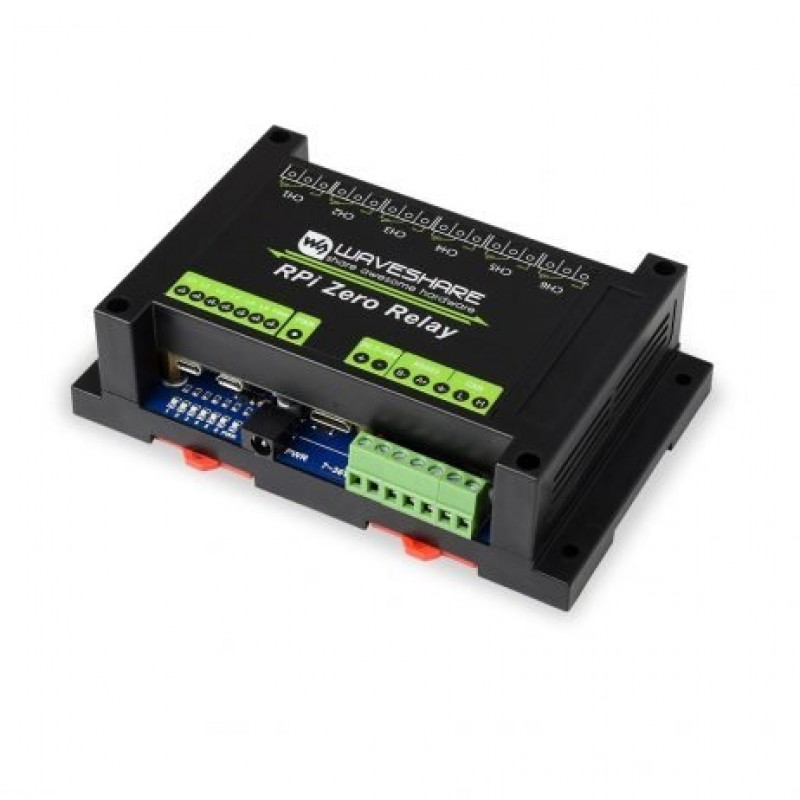

Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN with Isolated Protections

  • Product Code: EPI23067
  • Availability: Out Of Stock

0 reviews Write a review

  • Rs.2949.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN with Isolated Protections.


Features:

  1. RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
  2. CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
  3. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  4. Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
  5. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
  6. Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance
  7. High quality relay, contact rating: 10A 250V AC or 10A 30V DC
  8. ABS protection enclosure with rail-mount support, easy to install, safe to use
  9. Comes with development resources and manual (wiring Pi and python examples)

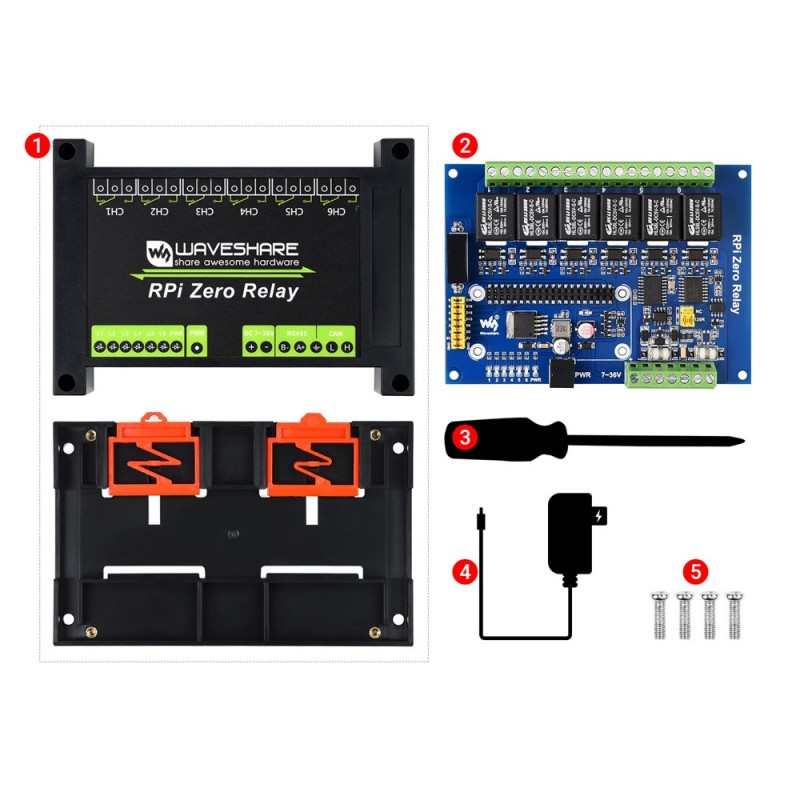

Package Includes:

1 x Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero

1 x Power Adapter
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 4128.82 (Inclusive of all Taxes)
