Waveshare FT232 USB UART Board (USB-Mini)
- Product Code: EPI23028
- Availability: 17
-
Rs.519.00
- (Excluding 18% GST)
OR

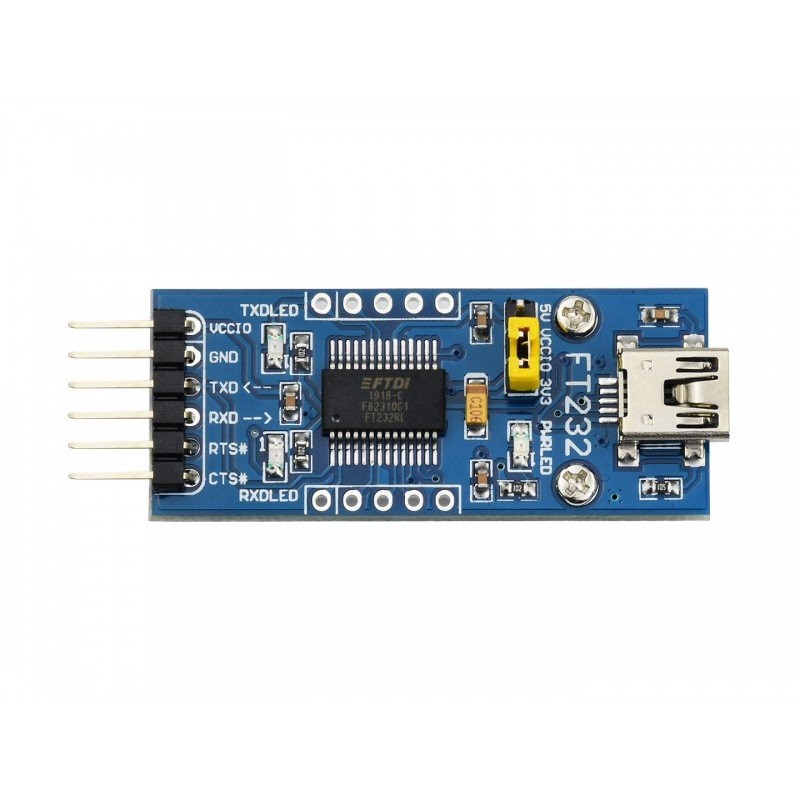

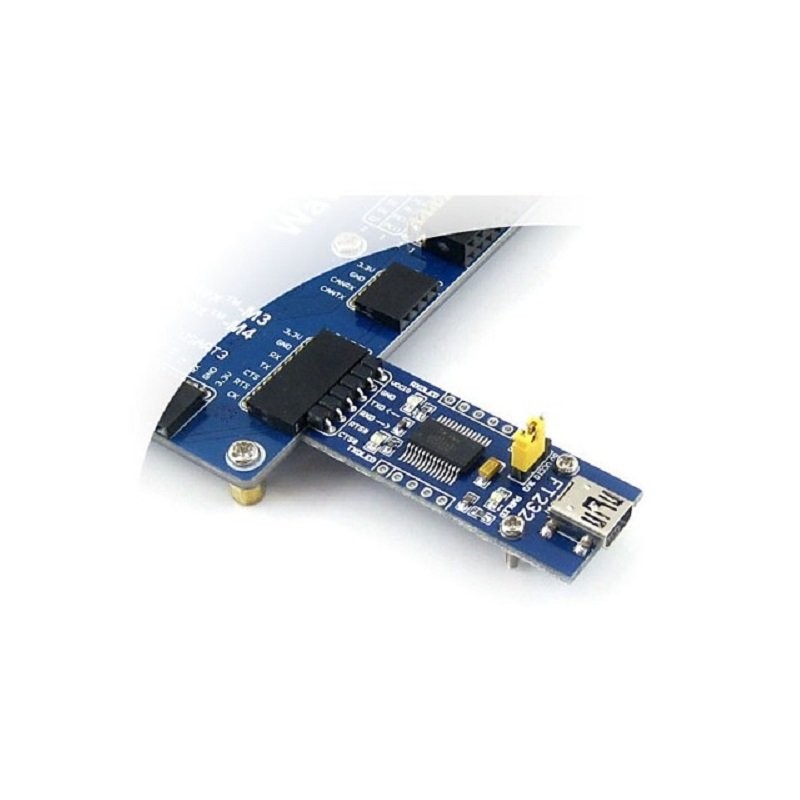

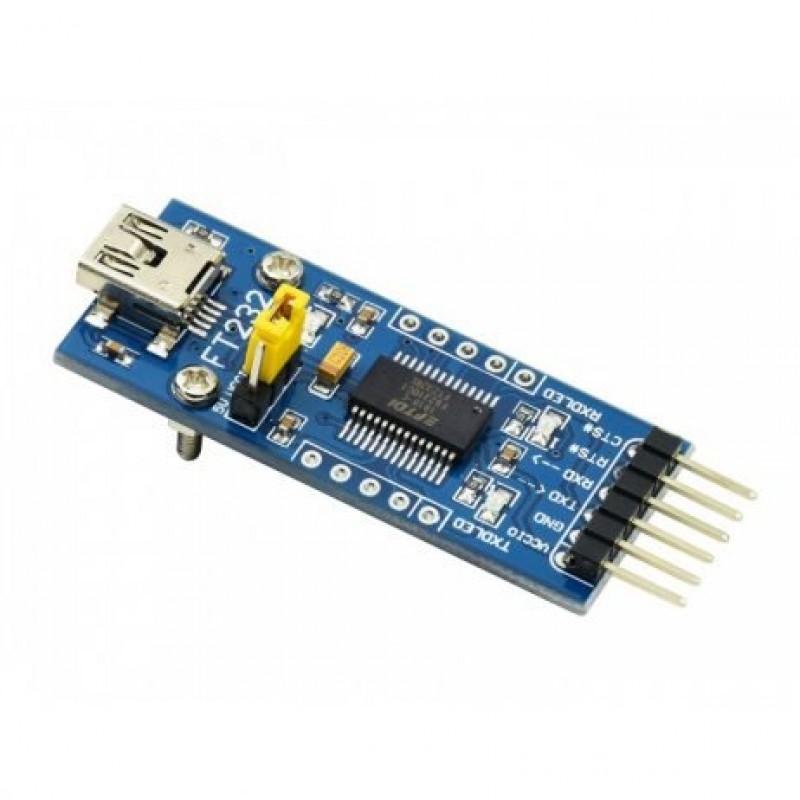

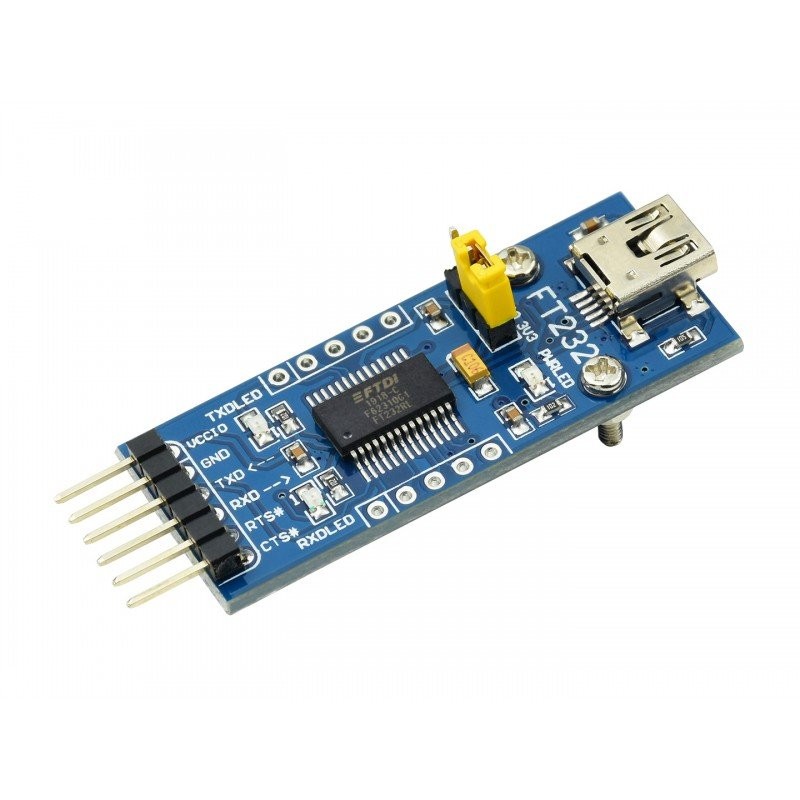

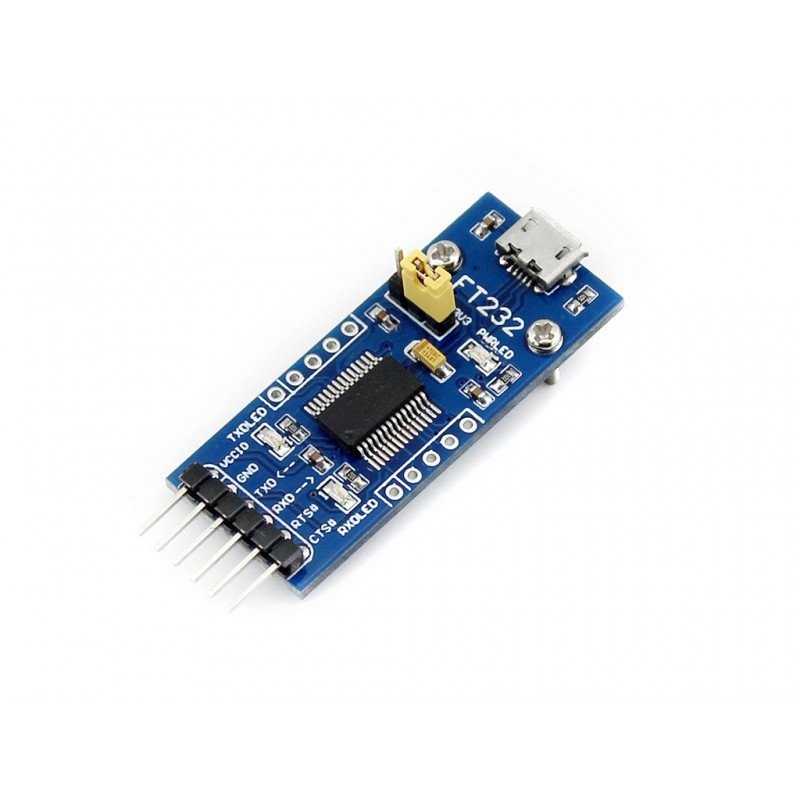

This is the FT232 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port.
Pin connections of FT232 USB UART Board:
- VCCIO 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
- GND GND
- TXD MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
- RXD MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
- RTS MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
- CTS MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)
This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.
Features:
- Original FT232RL onboard
- Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10
- 3 power mode: 5V output, 3.3V output, or powered by target board (3.3V-5V)
- 3 LEDs: TXD LED, RXD LED, POWER LED
- TXD, RXD, RTS#, CTS#: connected to the onboard soldered pin headers
- The other Pins: accessible on the drill holes (separate pin headers are also provided for easily connecting to the user system, the pitch is compatible with breadboards)
Package Includes:
1 x FT232 USB UART Board (mini)
2 x 5-pin male pin header & 5-pin female pin header x 2

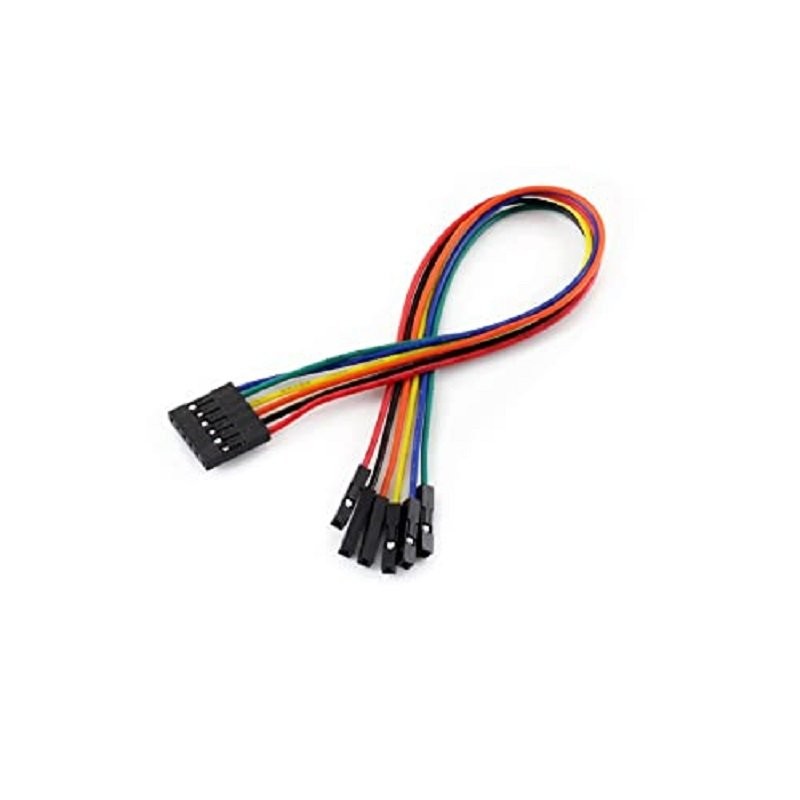

1 x 6-pin custom connector jumper wire
Specifications :-
| Operating Voltage (VDC) | 3.3 ~ 5 |
| No. of Pins | 6 |
| Length (mm) | 46 |
| Width (mm) | 19 |
| Height (mm) | 2.5 |
| Weight (gm) | 12 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 522.74 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
