Waveshare 2.8 Inch 480x640 DPI, IPS Capacitive Touch Screen LCD for Raspberry Pi
- Product Code: EPI22827
- Availability: Out Of Stock
-
Rs.2099.00
- (Excluding 18% GST)
OR

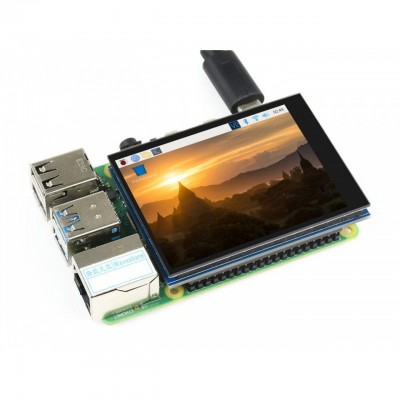

Waveshare 2.8inch Capacitive Touch Screen LCD for Raspberry Pi, 480640, DPI, IPS, Fully Laminated Toughened Glass Cover, Low Power has an IPS display panel and a screen resolution of 480640. This display has a capacitive touch-type screen and toughened glass touch panel that supports Raspberry Pi. Also, it has a 40 pin GPIO header for displaying and touch control.
Features:
- 2.8inch IPS Display 480640 hardware resolution.
- Designed for Raspberry Pi, based on Raspberry Pi 40pin GPIO interface.
- Using DPI666 (262K Colors) interface of Raspberry Pi to drive LCD, refresh rate up to 60Hz.
- Drive capacitive touch through the I2C interface of Raspberry Pi.
- 5-points touch, toughened glass panel, hardness up to 6H.
- Supports Raspbian and Kali systems.
Package Includes:
1 x 2.8 inch Capacitive Touch Screen LCD
Specifications :-
| Display Size (inch) | 2.8 |
| Pixel Resolution | 640 X 480 |
| View angle | 160 |
| Display Panel | IPS |
| Display Port | DPI666 |
| Touch Type | Capacitive |
| Touch Points | 5 |
| Touch Port | I2C |
| Length (mm) | 65.6 |
| Width (mm) | 47.5 |
| Height (mm) | 6.3 |
| Weight (gm) | 34 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 2476.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
