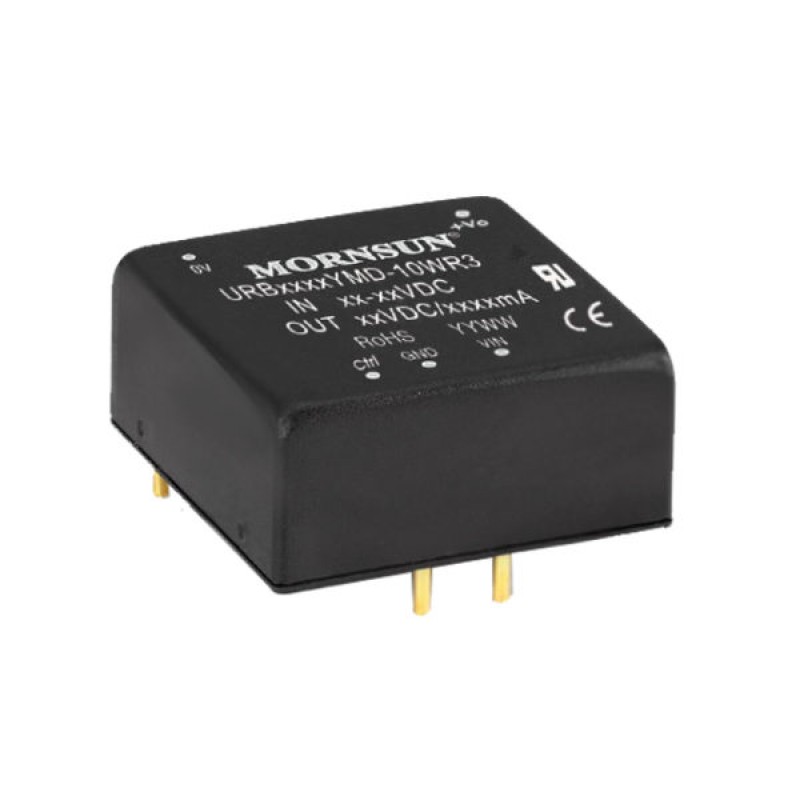

URB2412YMD-10WR3 Mornsun 24V to 12V DC-DC Converter 10W Power Supply Module - Horizontal DIP Package

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

FEATURES :

Ultra-wide 4:1 input voltage range
High efficiency up to 88%
No-load power consumption as low as 0.12W
I/O isolation test voltage1.5K VDC
Input under-voltage protection, output short circuit, over-current, over-voltage protection
Operating ambient temperature range: -40 to+85
Meets CISPR32/EN55032 CLASS A, without extra components
Input reverse polarity protection available with Chassis (A2S) or 35mm DIN-Rail mounting (A4S) version
IEC60950, UL60950, EN62368 approved
Industry standard pin-out

I/p Voltage range:9-36V

Nominal voltage:24V

O/p voltage:12V

O/p current:833/0mA

wattage:10W

Isolation:1.5kvdc

Package:Horizontal


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP	Rs. 2240.82 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.
