ULN2003 Steeper Motor Driver Module - Blue
- Product Code: EPI22379
- Availability: 103
-
Rs.32.00
- (Excluding 18% GST)
OR

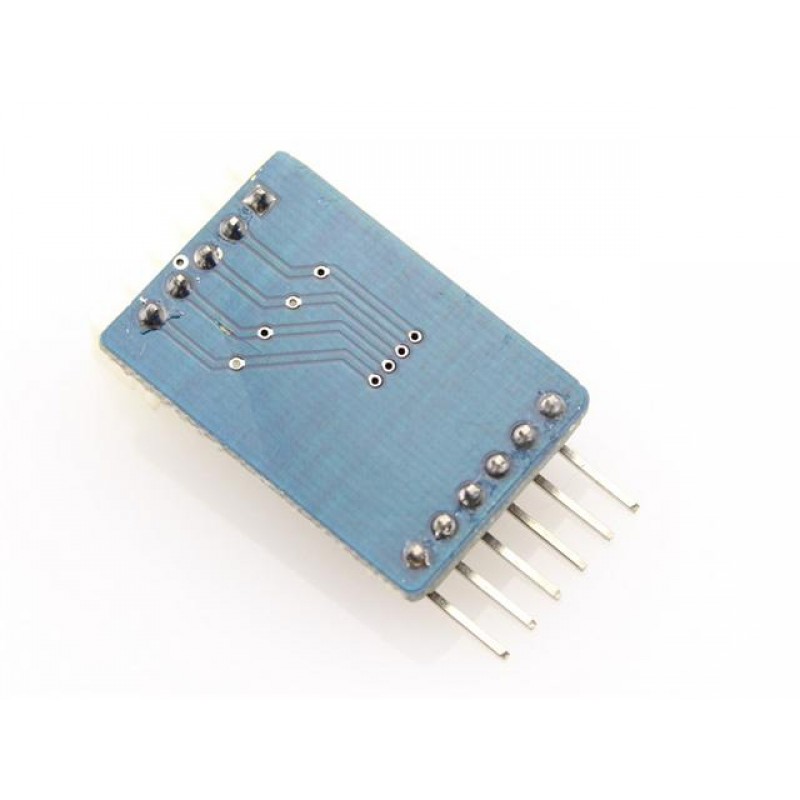

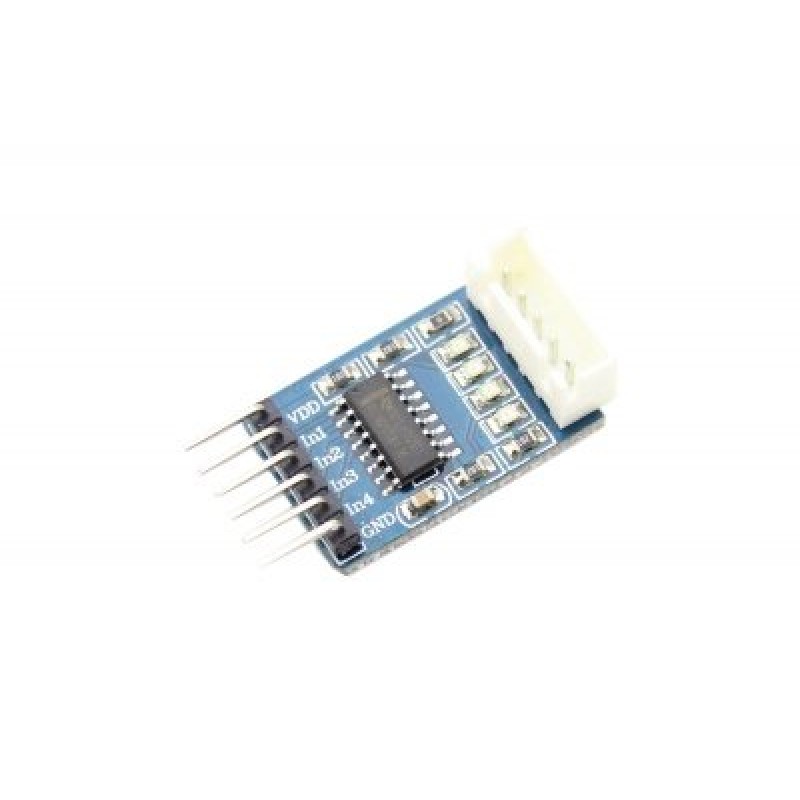

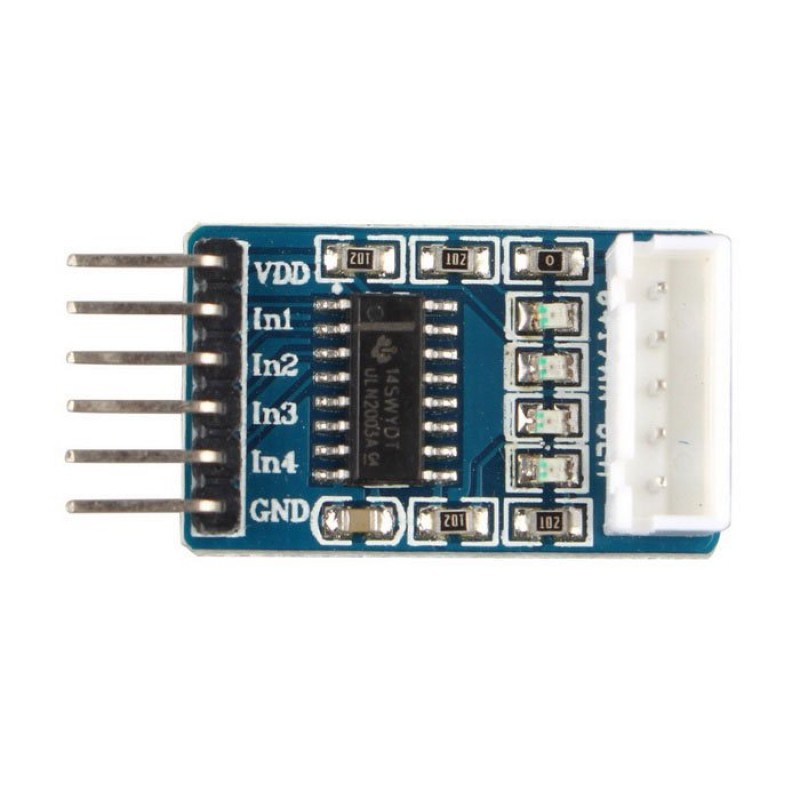

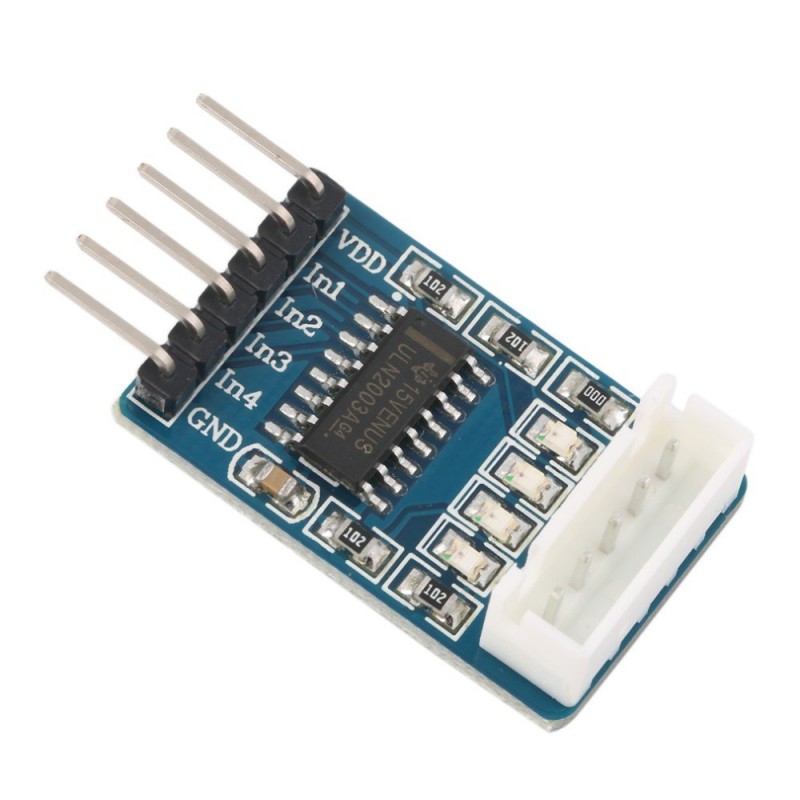

This is ULN2003 Steeper Motor Driver Module, small size and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option commonly used to run and control the small applications stepper motors.
Note: Color of PCB of may vary according to Manufacturer.
The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive step motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse.
Features :
- 4-way signal indicator
- Chip all the pins have Input leads Mounted for easy connection to use
- XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
Package Includes :
1 x ULN2003 Steeper Motor Driver Module - Blue
Specifications :
| Input Supply Voltage (VDC) | 5 ~ 12 |
| Logic Input (V) | 3 ~ 5.5 |
| Operating Temperature (C) | 25 to 90 |
| Length (mm) | 32 |
| Width (mm) | 18 |
| Height (mm) | 11 |
| Weight (gm) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 75.52 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
