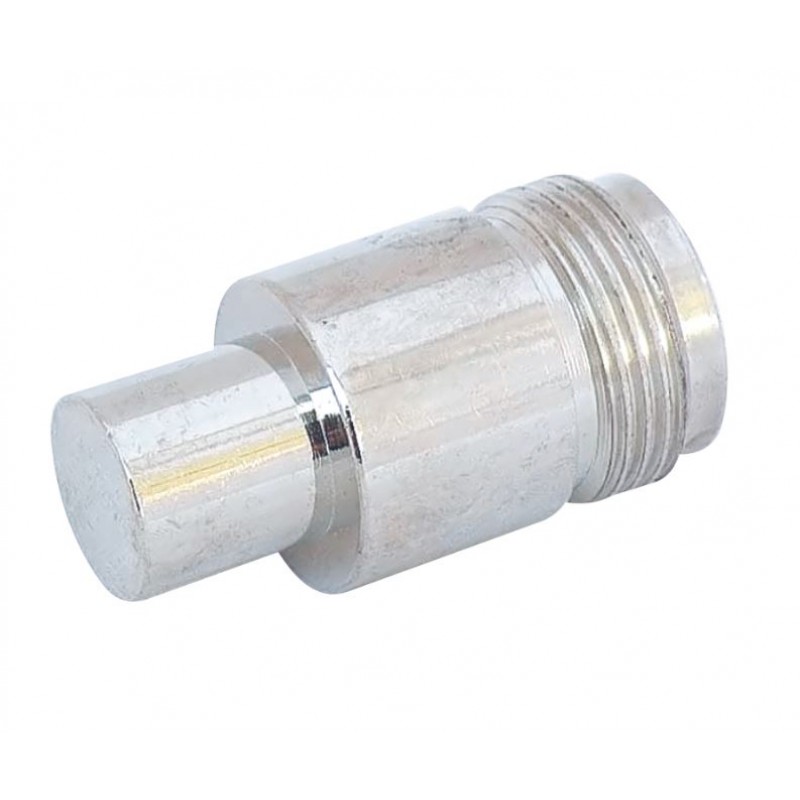

MX N Female Connector Terminator 50 (MX-806) - 25 Pieces Pack

MX N type Female to connector Terminator is a threaded RF connector used to join coaxial cables. MX N type connectors are capable to carry microwave-frequency signals. MX N type connector was developed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11 GHz.

Features and Specifications:-

• MX N type Female to connector is MX N type Female to connector Terminator.
• MX N type Female to connector pin is Gold Plated.
• MX N connector is used to join coaxial cables using a threaded RF connector.
• MX N type connector can easily handle signal up to 11 GHz.
• MX N type Female to connector has threaded coupling nut.

Applications:-

What is N Connector and its Application?

N Connectors are a type of Radio Frequency or RF connectors used to join coaxial cables. N connectors are one of the first connectors that can carry microwave frequency signals. This connector is named after Paul Neill of Bell Labs who invented it in 1940s. Originally designed for up to 1 GHz signals, it can now handles up to 11 GHz. The male connector is hand tightened and has an air gap between the center and outer conductors.

APPLICATIONS:

• Antennas.
• Broadcast.
• Radar.
• Test.
• Measurements.
• LANs and Transmitters.

Package Includes:-

25 x MX N Female Connector Terminator 50 (MX-806)
