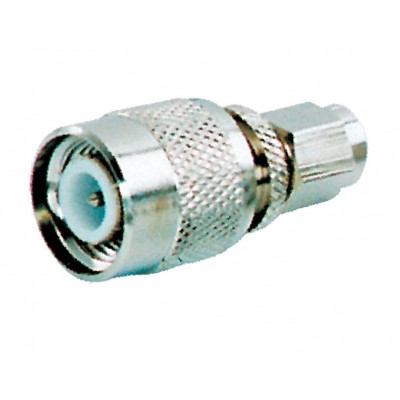

MX SMA Male To MX TNC Male Connector (MX-341) - 10 Pieces Pack

MX SMA Male to TNC Male Adaptor Connector is coaxial RF connectors. MX SMA Male to TNC Male Adaptor Connector is used to connect the panels. MX TNC (threaded Neill-Concelman) connector is a threaded version of the BNC Connector. The connector has 50 OHMS impedance and operates best in the 0 –11 GHz frequency spectrum. MX TNC has better performance than the BNC connector at microwave frequencies. MX TNC connector has been employed in a wide range of radio and wired applications

Features and Specifications:-

• MX SMA Male to TNC Male Adaptor Connector
• MX SMA Male to TNC Male Adaptor Connector has Threaded coupling interface of MX SMA Connector will not de-couple in vibration-intensive applications.
• MX SMA Male to TNC Male Adaptor Connector has threaded coupling nut for TNC.
• MX TNC has better performance than the BNC connector at microwave frequencies
• MX SMA Male to TNC Male Adaptor Connector is used for clean connection to get strong signal.

Applications:-

What is SMA and its Application?

SMA connectors are semi-precision, subminiature units that provide excellent electrical performance from DC to 18 GHz. These high-performance connectors are compact in size and mechanically have outstanding durability.

For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, these SMA connectors for semi-rigid coaxial cables and the SMA Plug-to-Jack adapter offer a precise and simple means of phase adjustment for microwave devices.

SMA is available both in Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.

Features & Benefits

• Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼ - 36 threaded coupling offers high performance in a compact design.
• Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.
• Available for .085" and .141" diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316.
• Phase Adjustable SMA connectors provide ease of mechanical screw adjustments, compared to the delays and expense of laborious cable-trimming.

Applications:

• Base Stations
• Cable Assemblies
• Components
•  Instrumentation
•  Mil/Aero
•  PC/LAN
•  Process Controls
•  Telecom

What are TNC CONNECTORS & their Applications.??

The TNC Series features screw threads for mating. TNC are miniature, threaded weatherproof units with constant 50 O impedance and they operate from 0 - 11 GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.

Applications:

• Antennas
• Base Stations
• Cable Assembly
• Cellular
• Components
• Instrumentation
• Mil-Aero
• Networks
• Radar
• Telecom

Package Includes:-

10 x MX SMA Male To MX TNC Male Connector (MX-341)
