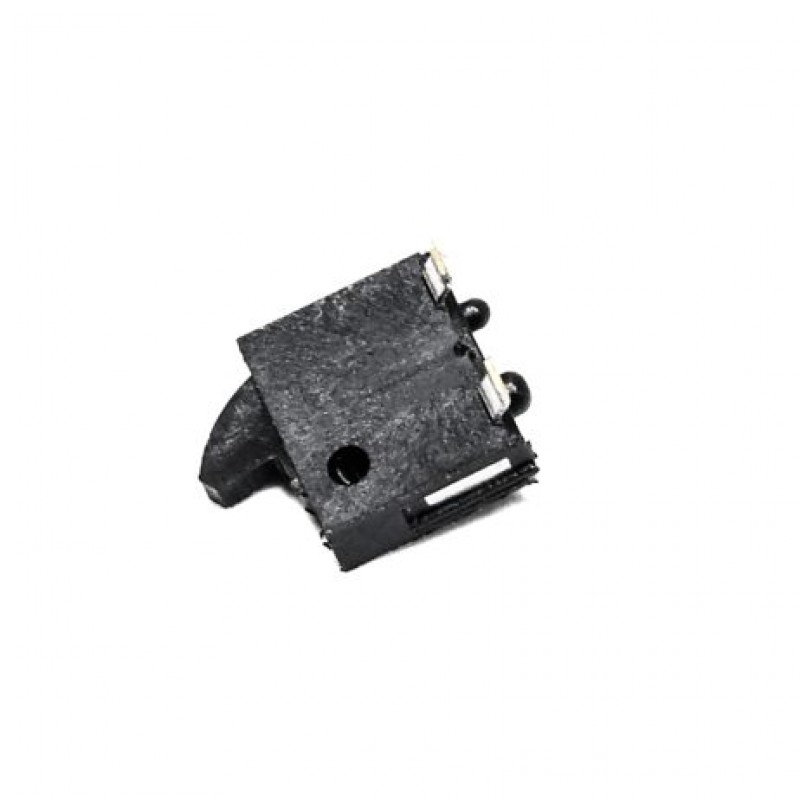

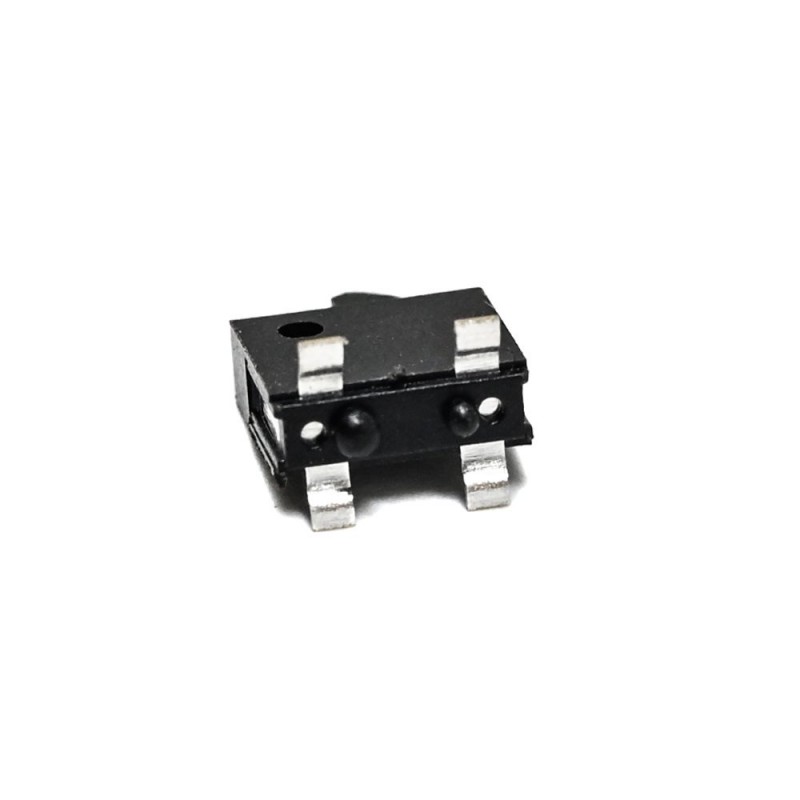

TM-1627S-XKB-50mA 12V Double-pole single-throw (DPST) normally open Detection Switch 50,000 Times SMD Limit Switches ROHS
- Product Code: EPI29350
- Availability: 436
-
Rs.14.00
- (Excluding 18% GST)
OR
TM-1627S-XKB-50mA 12V Double-pole single-throw (DPST) normally open Detection Switch 50,000 Times SMD Limit Switches ROHS.
Note: Images for reference only.
Specifications:
Manufacturer: XKB Connection
Package: SMD
Current Rating (DC): 50mA
Length: 5.8mm
Voltage Rating (DC): 12V
Width: 2mm
Circuit: Double-pole single-throw (DPST) normally open
Operating Temperature: -40~+85
Termination Style: Gullwing
Actuator Style: Angular Toggle
Life: 50,000 times
Switch Height: 5.1mm
For detailed specifications, please refer to datasheet in Attachments.
Package Includes:
1 x TM-1627S-XKB-50mA 12V Double-pole single-throw (DPST) normally open Detection Switch 50,000 Times SMD Limit Switches ROHS
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
