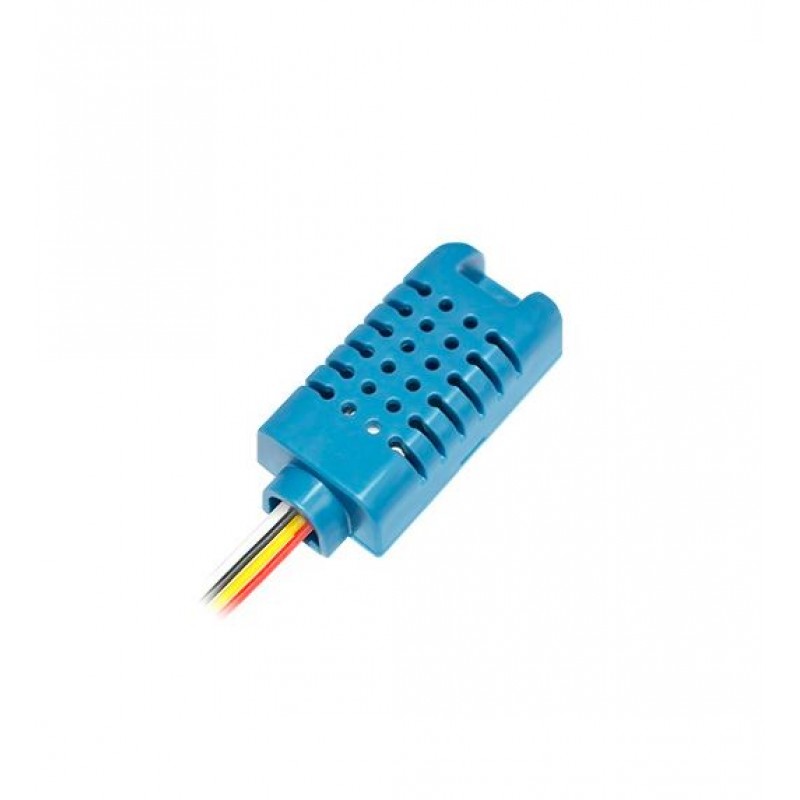

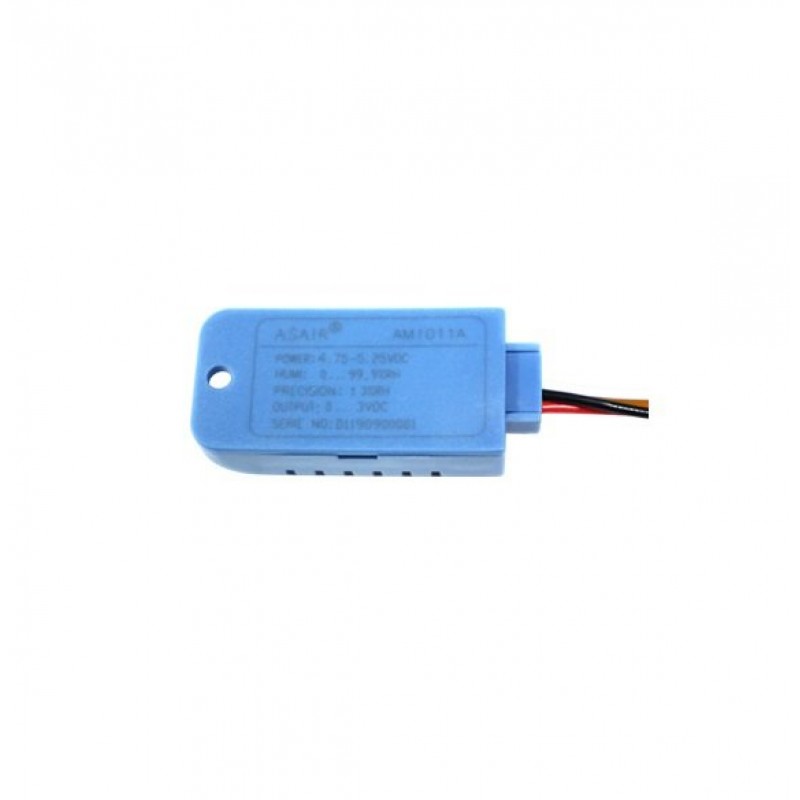

Temperature and Humidity Sensor Model AM1011A

AM1011A analog temperature and humidity module is a have already calibrated analog signal output of the temperature and humidity sensor, the sensor signals using analog voltage loss, out of the way; This module has high precision, high reliability, good consistency, and with temperature compensation, ensure the long-term stability is good, easy to use and high performance, especially suitable for the quality, cost, more demanding enterprise to use.

Features:

1. Excellent long-term stability
2. Low power consumption, small size, high-cost performance
3. Complete interchange
4. Analogue voltage output
5. Excellent long-term stability

Specification:

1. Typical Accuracy (% RH) 3
2. Operating Range (% RH) 0 to 100
3. Humi Response time(s) 8
4. Typical Accuracy (%) NTC 1
5. Operating Range (C) -40~80
6. Temp Response time(s): 6
7. Supply Voltage(V) 4.75~5.5

Package Includes:

1 x Temperature and Humidity Sensor Model AM1011A.
