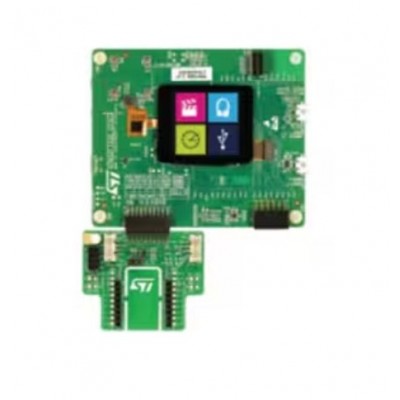

STMICROELECTRONICS STM32F723E-DISCO Development Board, STM32F723IE MCU, On-Board ST-LINK/V2-1, STMod+ and ArduinoUno V3 Connectivity

With the STMICROELECTRONICS STM32F723E-DISCO Development Board users develop applications easily on the STM32F7 Series high-performance microcontrollers based on ArmCortexM7 core. The Discovery kit combines the STMICROELECTRONICSSTM32F723E-DISCO Development Board features with 240240 pixel LCD with touch panel, SAI audio codec, MEMS microphones, USBs OTG HS and OTG FS, Quad-SPI NOR Flash memory, and microSD card connector.

An embedded ST-LINK/V2-1 debugger/programmer is included. Specialized add-on boards can be connected through the ARDUINO Uno V3, Pmod, or STMod+ expansion connectors.

Features:

1. Microcontroller: STM32F723IEK6 (Arm Cortex-M7, 512 Kbytes Flash, 176+16 Kbytes SRAM, BGA176 package)
2. Display: 240240 pixel TFT LCD with capacitive touch panel
3. Audio: SAI audio codec and four digital MEMS microphones
4. Storage: 512-Mbit Quad-SPI NOR Flash, 8-Mbit PSRAM, microSD card connector
5. USB Connectivity: USB OTG HS and OTG FS, two user USB Micro-AB connectors
6. Expansion: ARDUINO Uno V3, Pmod, STMod+ connectors
7. Power Supply: Flexible options via ST-LINK USB VBUS, user USB connectors, or external sources
8. Debugging: On-board ST-LINK/V2-1 with USB re-enumeration
9. Software Support: STM32Cube MCU Package libraries; compatible with IAR Embedded Workbench, MDK-ARM, STM32CubeIDE

Specifications:

1. Microcontroller: STM32F723IEK6
2. Flash Memory: 512 Kbytes
3. SRAM: 176 Kbytes + 16 Kbytes
4. Display Resolution: 240240 pixels
5. Audio Inputs/Outputs: Stereo input/output, speaker output
6. Power Supply: 3.3V or 5.0V output for external applications
7. User Interface: User and reset push-buttons
8. Debugging Port: Mass storage, Virtual COM port
9. Additional Connectors: ESP-01 Wi-Fi, headers for direct breadboard plug-in

Package include :

1 x STMICROELECTRONICS STM32F723E-DISCO Development Board
