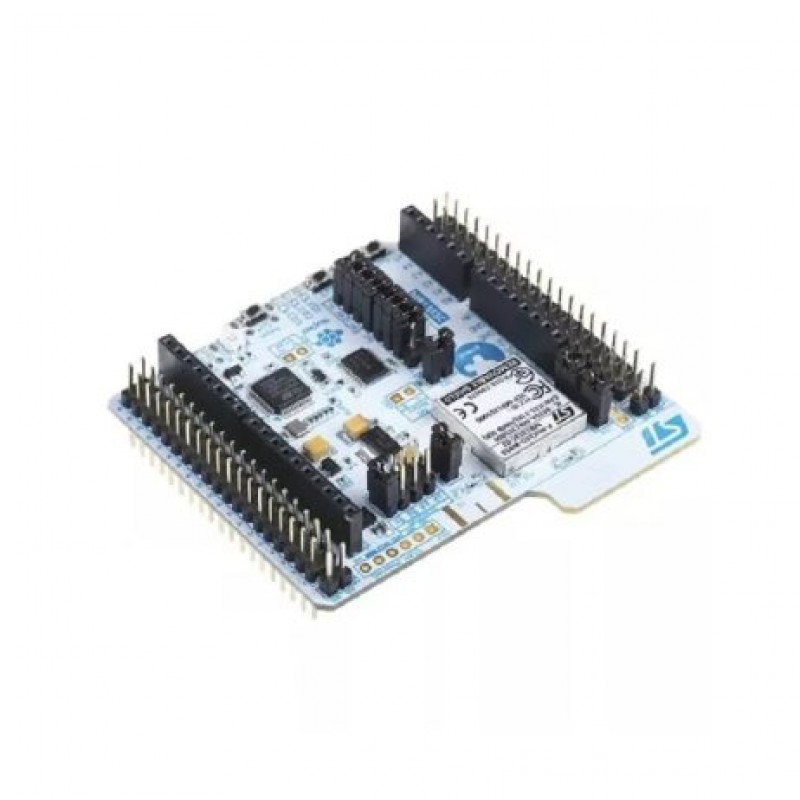

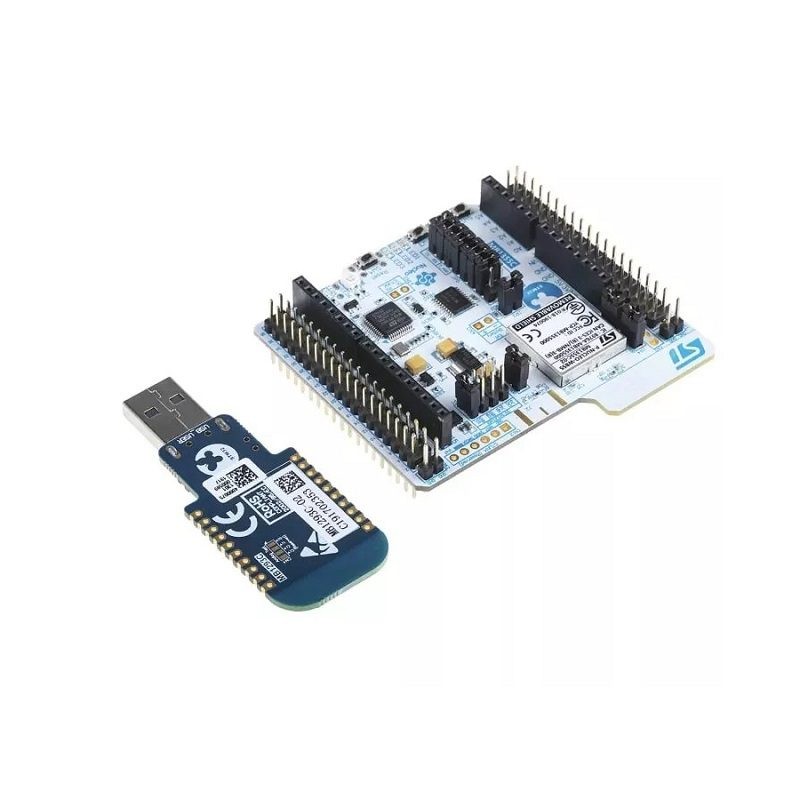

STMICROELECTRONICS P-NUCLEO-WB55 Nucleo Pack Wireless Expansion Development Board

The STMicroelectronics P-NUCLEO-WB55 Nucleo Pack Wireless Expansion Development Board is a comprehensive and versatile platform designed for the development and evaluation of wireless applications. It is built around the STM32WB55 microcontroller, which integrates Bluetooth 5.0, IEEE 802.15.4, and proprietary 2.4 GHz RF capabilities, making it ideal for developing low-power wireless solutions. The board provides a wide range of hardware features, including a rich set of I/O interfaces, a range of sensors, and compatibility with various wireless communication protocols, ensuring flexibility for different use cases.

It also supports a range of development tools, including STM32Cube software development environment, making it easier for developers to accelerate their projects and create innovative wireless devices. Whether for prototyping or testing, the P-NUCLEO-WB55 offers an excellent foundation for building a wide variety of wireless IoT applications, from home automation to industrial solutions.

Features:

1. STM32WB55RG microcontroller in a VFQFPN68 package
2. 2.4 GHz RF transceiver supporting Bluetooth specification v5.4 and IEEE 802.15.4-2011 PHY and MAC, supporting Thread 1.3, Matter, and Zigbee 3.0
3. Dual-core 32bit (Arm CortexM4 and dedicated M0+ CPU for realtime radio layer)
4. Three user LEDs
5. Three user push-buttons and one reset push-button
6. Board connectors: Micro-B USB user, ARDUINO Uno V3 expansion connector, ST morpho expansion connector
7. Integrated PCB antenna or SMA connector footprint
8. Flexible power-supply options: ST-LINK USB VBUS or external sources
9. On-board footprint to mount a CR2032 battery socket
10. On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
11. Comprehensive free software libraries and examples available with the STM32Cube MCU Package
12. Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench, MDK-ARM, and STM32CubeIDE
13. STM32WB55CG microcontroller in UFQFPN48 package
14. 2.4 GHz RF transceiver supporting Bluetooth specification v5.4 and IEEE 802.15.4-2011 PHY and MAC, supporting Thread 1.3, Matter, and Zigbee 3.0
15. Dual-core 32bit (Arm CortexM4 and dedicated M0+ CPU for realtime radio layer)
16. Switch for boot management
17. User push-button
18. Three user LEDs
19. Integrated PCB antenna or U.FL connector

Package Includes:

1 x STMICROELECTRONICS P-NUCLEO-WB55 Nucleo Pack Wireless Expansion Development Board
