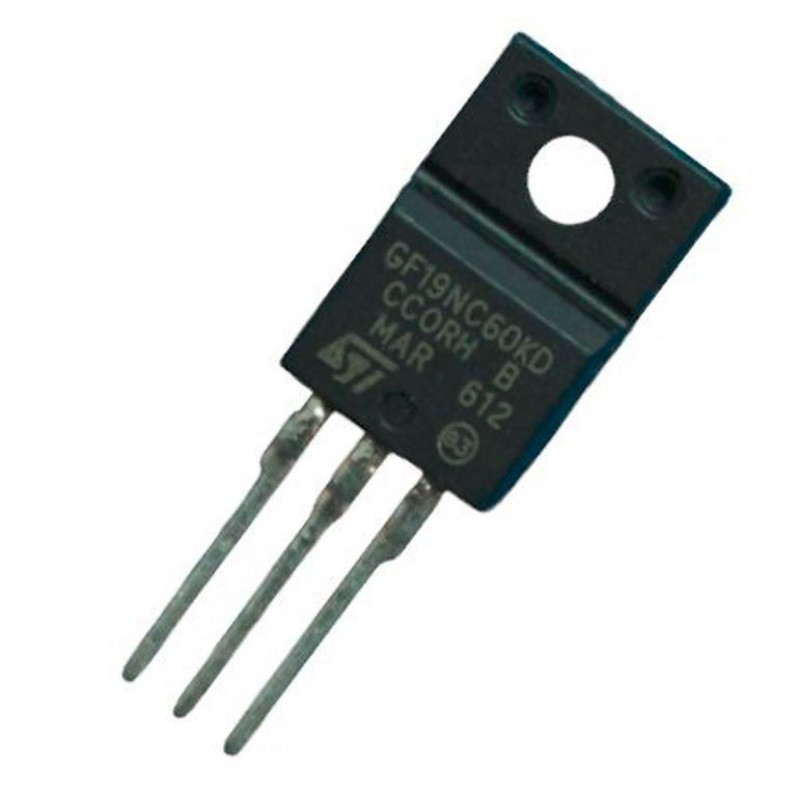

  • STGF19NC60KD IGBT - 600V 20A Short-Circuit Rugged IGBT

STGF19NC60KD IGBT - 600V 20A Short-Circuit Rugged IGBT

  • Product Code: EPI21240
  • Availability: 223

0 reviews Write a review

  • Rs.165.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The STGF19NC60KD IGBT devices are very fast IGBTs developed using advanced PowerMESH™ technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior.

Features:-

• Low on voltage drop (VCE(sat))

• Low CRES / CIES ratio (no cross-conduction susceptibility)

• Short-circuit withstand time 10 μs

• IGBT co-packaged with ultra fast freewheeling diode

Applications:-

• High frequency inverters

• Motor drives

Specification:-

Symbol Parameter Values Units
VCES Collector-to-Emitter Voltage 600 V
IC @ TC = 25°C  Continuous Collector Current TC = 25 °C 16 A
IC @ TC = 100°C  Continuous Collector Current TC = 100 °C 10
ICP Pulsed Collector Current  75
VGE Gate-to-Emitter Voltage ± 20 V
PTOT Total dissipation at TC = 25 °C 32 W
TJ Operating Junction  -55 to +150 °C
Tstg Storage Temperature Range


Related Document:-

 STGF19NC60KD IGBT Data Sheet
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 194.7 (Inclusive of all Taxes)
