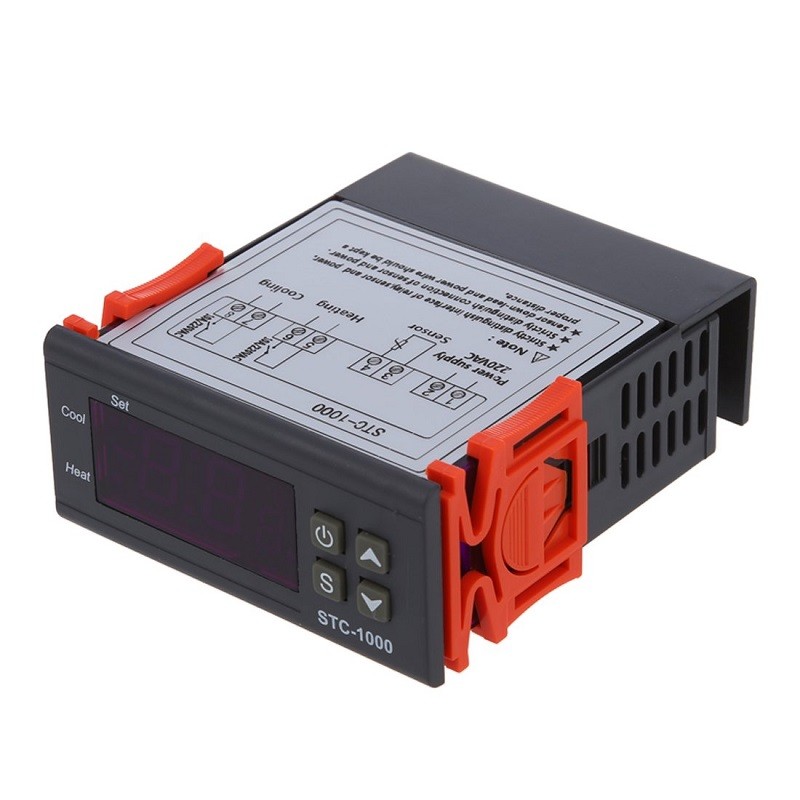

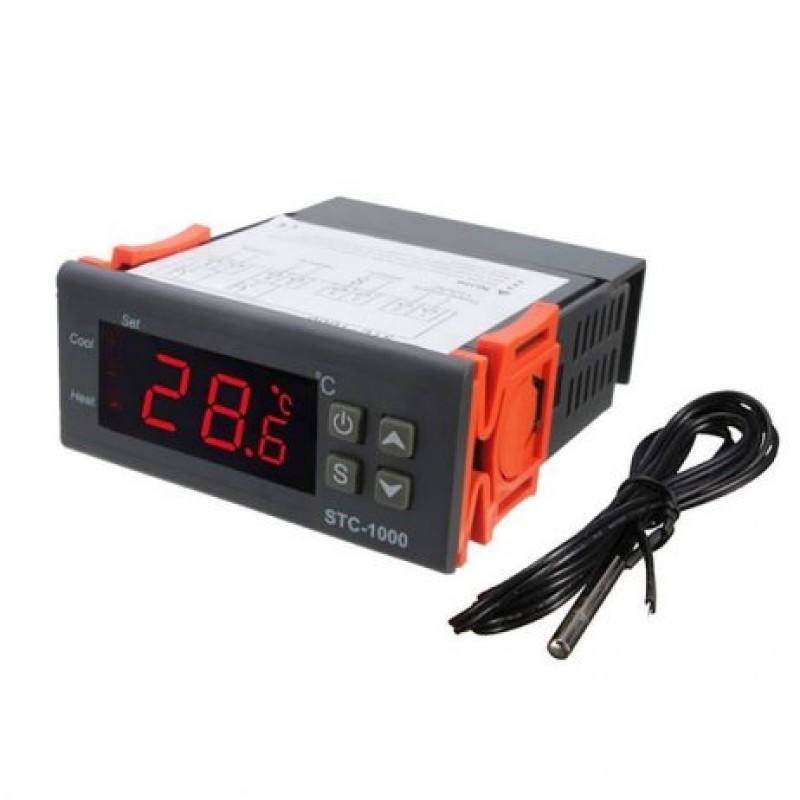

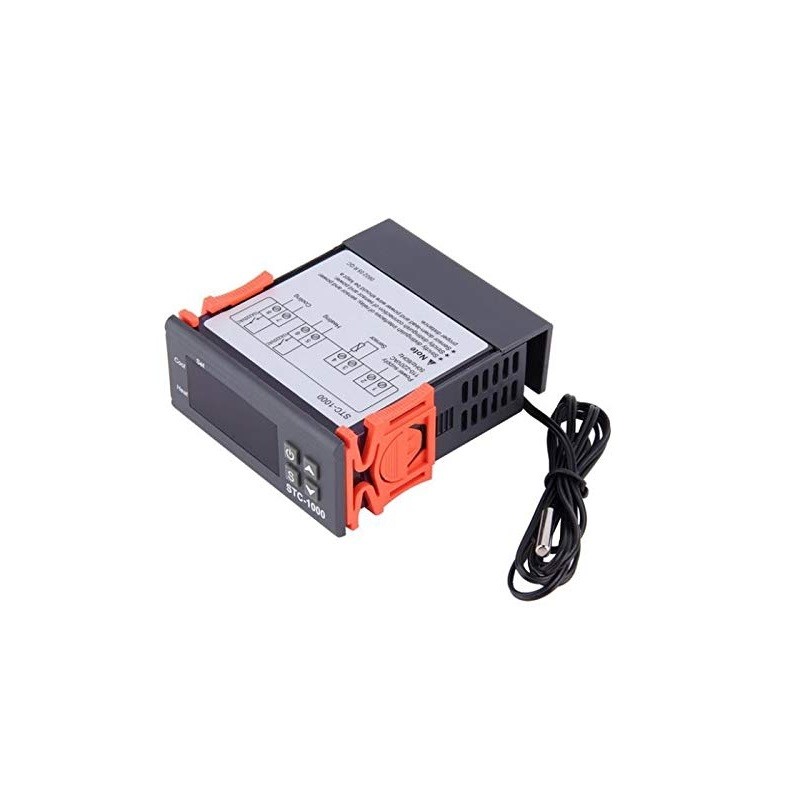

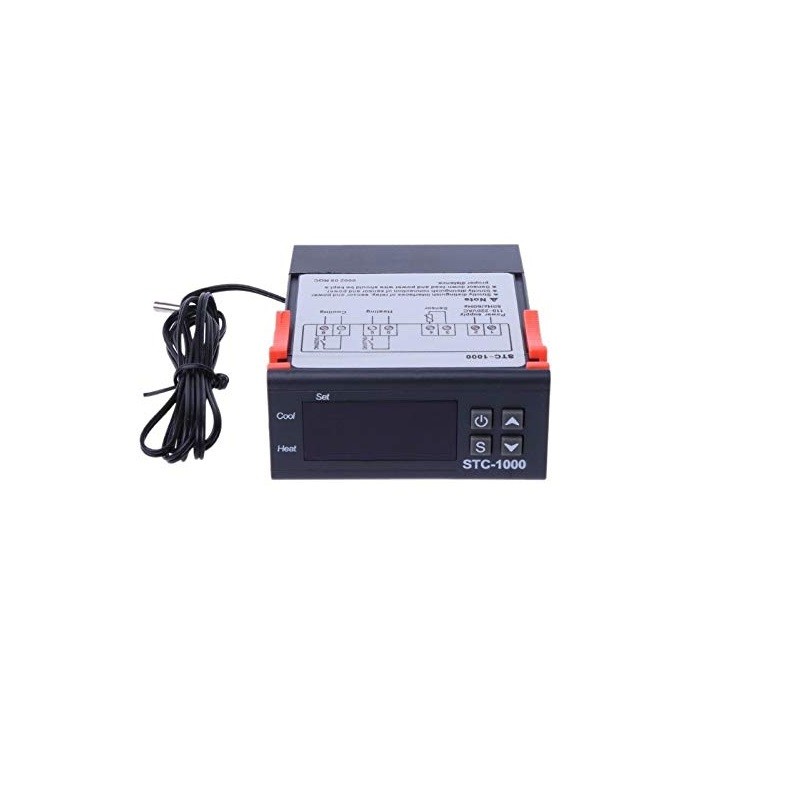

STC-1000 DC24V Digital Temperature Controlled Thermostat Switch

This is a temperature-controlled thermostat switch that can be used to control the heating/cooling of an object with the help of the NTC sensor to detect the temperature. The module is operated by the 24VDC connected at the input terminals. The module has two output ports where you can connect the equipment to heat or cool the test system.

Application:

1. Outdoor use uses involving potential chemical contamination or electrical interference
2. Nuclear energy control systems, combustion systems, railroad systems, aviation systems
3. Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
4. Systems, machines, and equipment that could present a risk to life or property
5. Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system.

Features:

1. Mini temperature controller.
2. With a clear LED display for better readability.
3. Wide temperature measuring range.
4. Dual heating and cooling control.
5. Automatic over-temperature alarm
6. Relay output.
7. High Control precision 0.1 centigrade

Package Includes:

1 x STC-1000 DC24V Digital Temperature Controlled Thermostat Switch

1 x User Manual

Specifications :-

Model	STC-1000
Operating Voltage (VDC)	24
Temperature Measuring Range	-50 to 90C
Control Temperature Range	-50 to 90C (Adjustable)
Control Temperature Difference	0.3 to 10C (Adjustable)
Relative Humidity	20 to 85%
Resolution	0.1C
Accuracy	1C
Sensor	NTC sensor
Sensor Cable Length	1m
Relay Output Capacity	Heating: 10A (max) 250 V Cooling: 10A (max) 250V
Length (mm)	84
Width (mm)	69
Height (mm)	34
Weight (gm)	100
Shipment Weight	0.11 kg
Shipment Dimensions	10 10 5 cm
