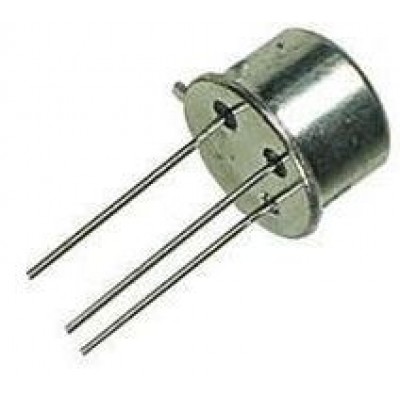

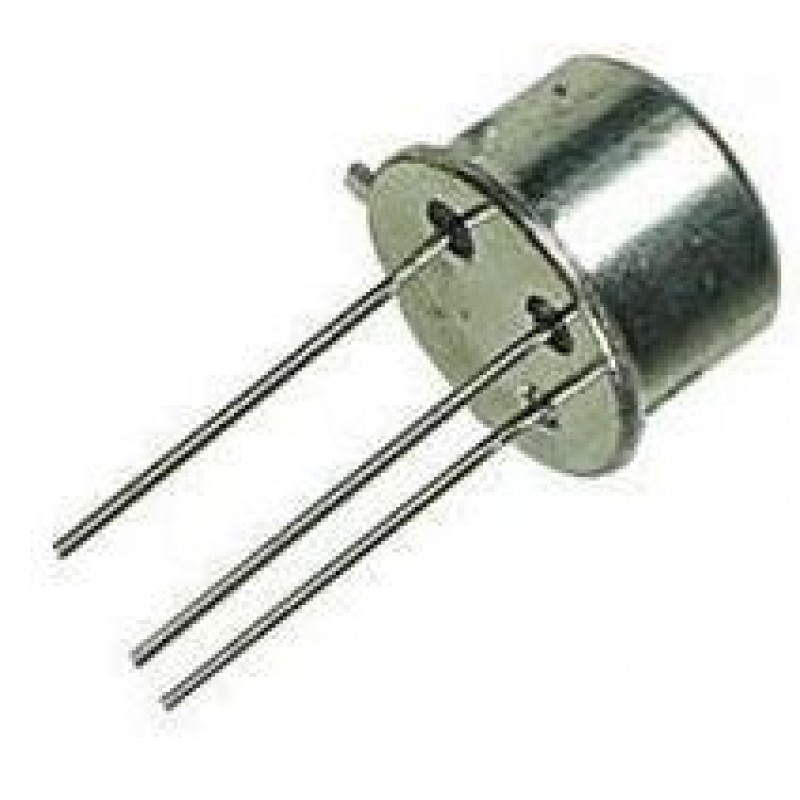

SL100 NPN General Purpose Medium Power Transistor 50V 500mA TO-39 Metal Package
- Product Code: EPI20794
- Availability: 260
-
Rs.17.00
- (Excluding 18% GST)
OR
SL100 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• High Ruggedness
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 50V |
| Collector−Base Voltage (VCBO) | 60V |
| Continuous Collector Current (Ic) | 0.5A |
| Emitter Base Voltage (VEBO) | 5V |
| Power Dissipation (Pd) | 800mW |
| Operating Temperature Range | -65 - 200°C |
| Output Capacitance (Cobo) | 20pF |
| DC Current Gain (hFE) | 40-300 |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 24.78 (Inclusive of all Taxes) |
