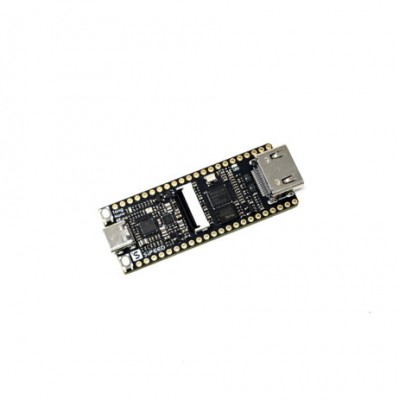

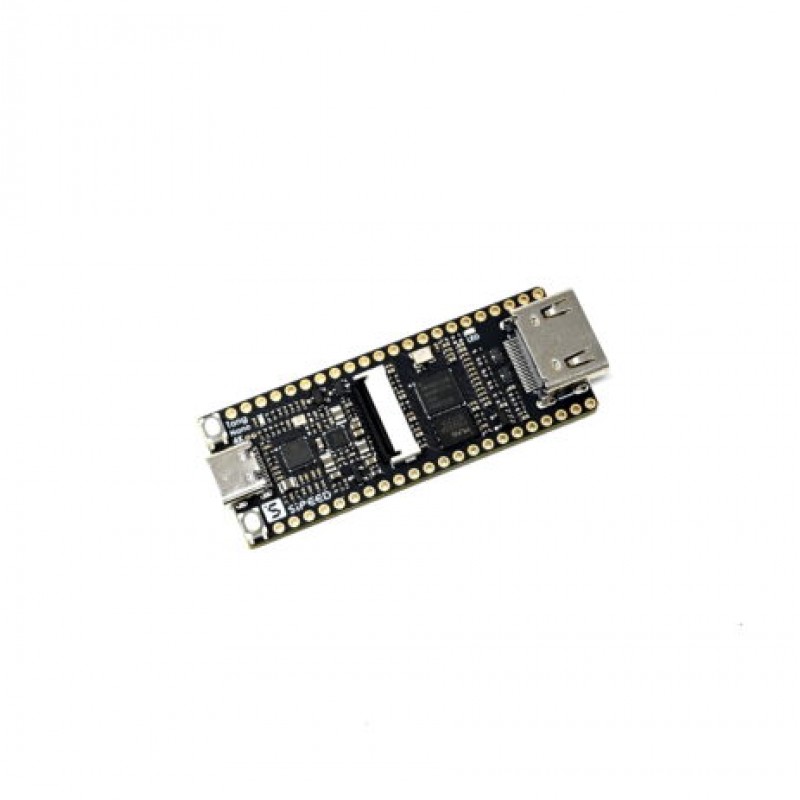

Sipeed Tang nano 4k Core board based on Gowin

The Tang Nano 4K is a versatile development board built around the powerful Gowin Little Bee GW1NSR-LV4C FPGA chip. This compact board offers a range of features, making it an ideal platform for various applications. It includes a camera interface and an HDMI interface, allowing users to easily integrate video input and output capabilities into their projects. Additionally, the onboard USB-JTAG debugger provides convenient debugging and programming options.

Equipped with a Cortex-M3 hardcore, the Tang Nano 4K is not only suitable for FPGA development but also facilitates MCU study. The boards compact size and comprehensive features make it perfect for a wide range of projects, from simple DIY electronics to more complex embedded systems. Whether youre a hobbyist, student, or professional developer, the Tang Nano 4K provides an excellent platform for exploring FPGA and MCU development in a cost-effective and user-friendly manner.

Features:

1. Based on Gowin Little Bee GW1NSR-LV4C FPGA chip
2. Camera interface and HDMI interface
3. Onboard USB-JTAG debugger for convenient debugging and programming
4. The board has 3456 registers.
5. Equipped with Cortex-M3 hardcore.
6. The board has 180K bits of Block SRAM.
7. It offers 256K bits of user flash.
8. Includes 2 PLLs.
9. There are 4 I/O banks.
10. The board provides 44 user I/Os.

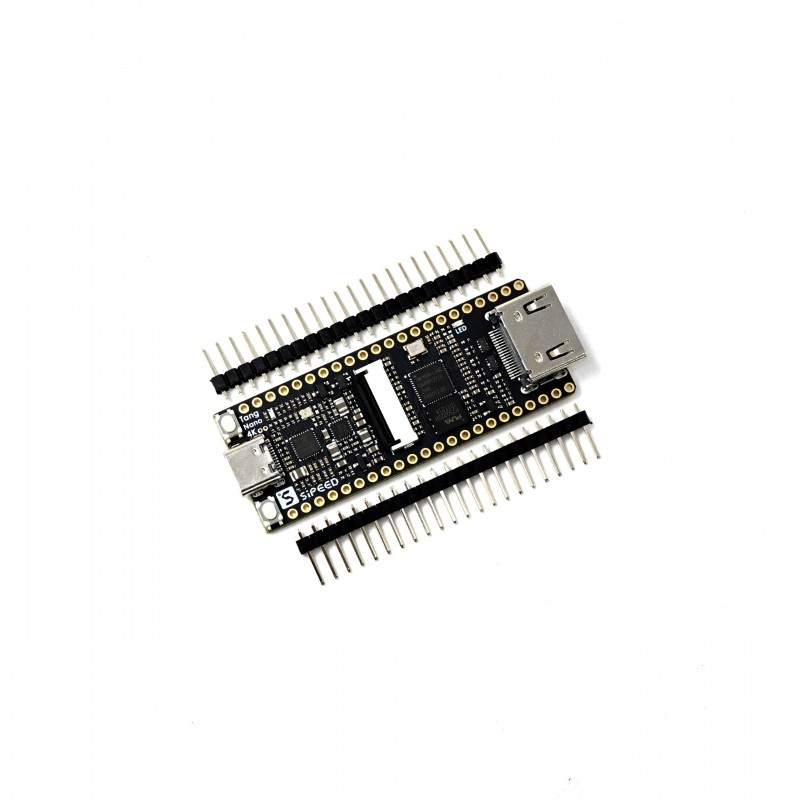

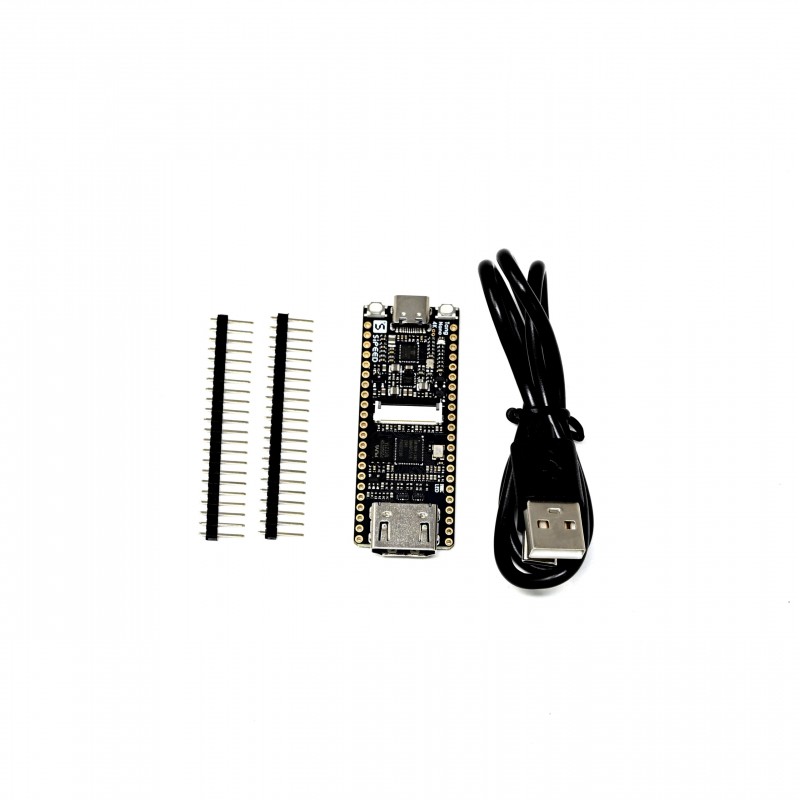

Package Includes:

1 x Sipeed Tang nano 4k Core board

1 x Type-C Data Cable

2 x 22 Pin 2.54mm Header
