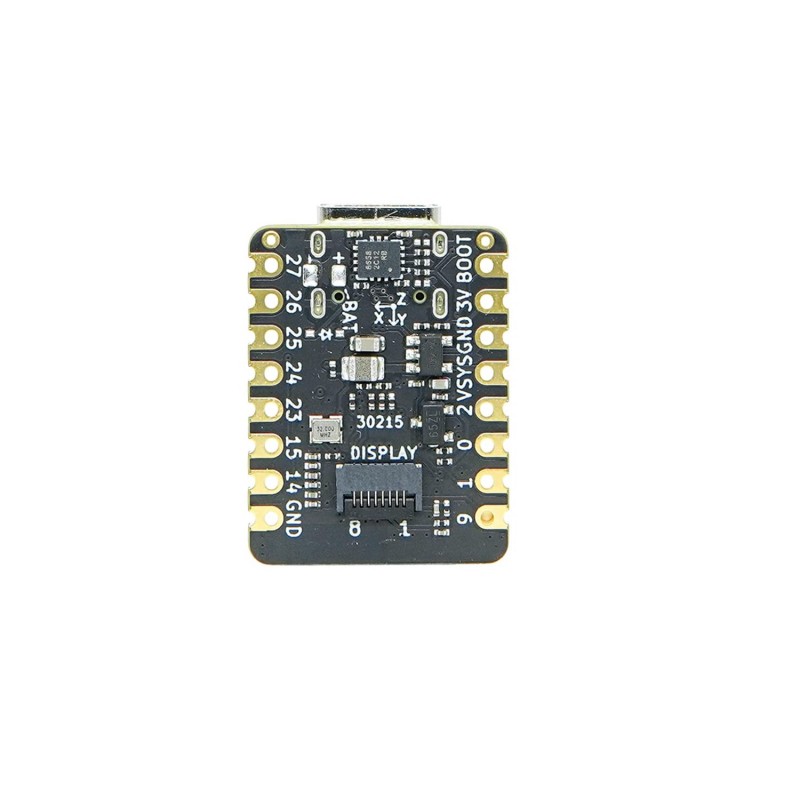

Sipeed M0Sense AIOT development board

The Sipeed M0sense is an AIOT development board based on the BL702 chip from Bouffalo Lab, featuring RISC-V architecture and supporting low-energy Bluetooth. It comes with an 8-pin FPC connector, allowing easy connection to an LCD screen. The board also includes a microphone, an RGB LED, and a six-axis sensor chip, providing versatile functionality for various projects.

With its USB 2.0 FS connectivity through a Type-C interface, the Sipeed M0sense offers convenient connectivity options. Its RISC-V architecture ensures efficient processing, while the support for low-energy Bluetooth makes it suitable for applications requiring power efficiency. The presence of the microphone, RGB LED, and six-axis sensor chip adds versatility to the board, enabling developers to explore various AIOT applications with ease.

Features:

1. Mainchip BL702 RISC-V 144MHz
2. BlueTooth 5.0/ BLE
3. Onboard 1 analog microphone1 LED1 IMU
4. Route USB 2.0 FS to USB Type-C port

Package Includes:

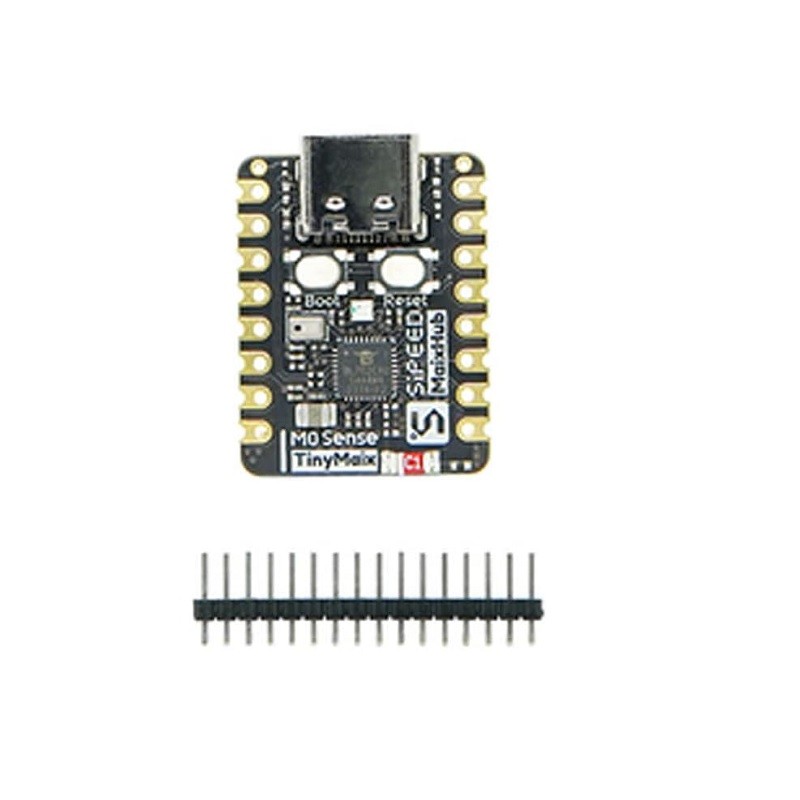

1 x Sipeed M0Sense AIOT development board

1 x (16 Pins) Pin Header
