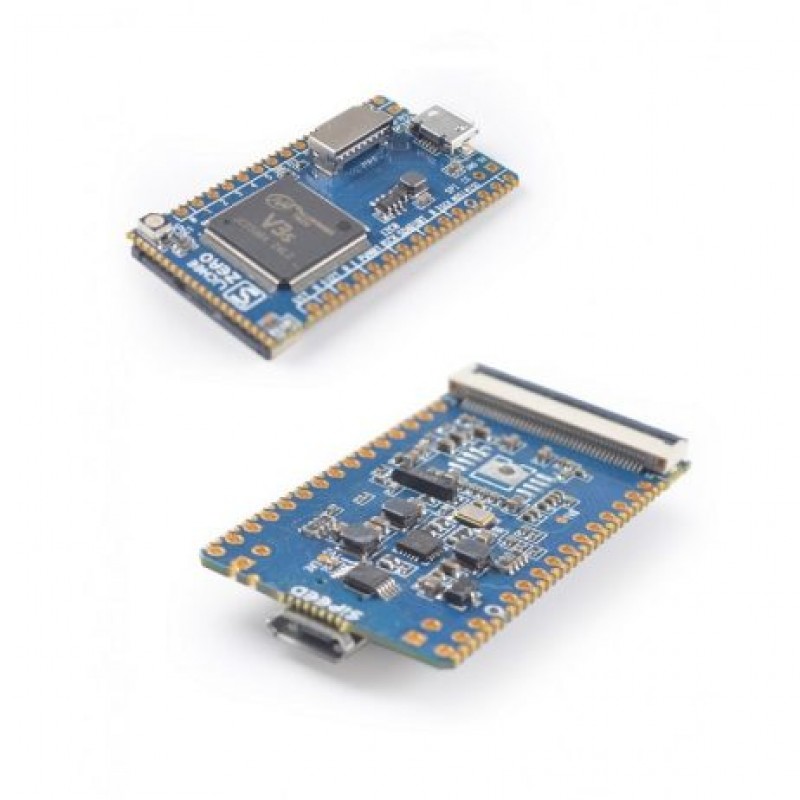

Sipeed Lichee Pi Zero

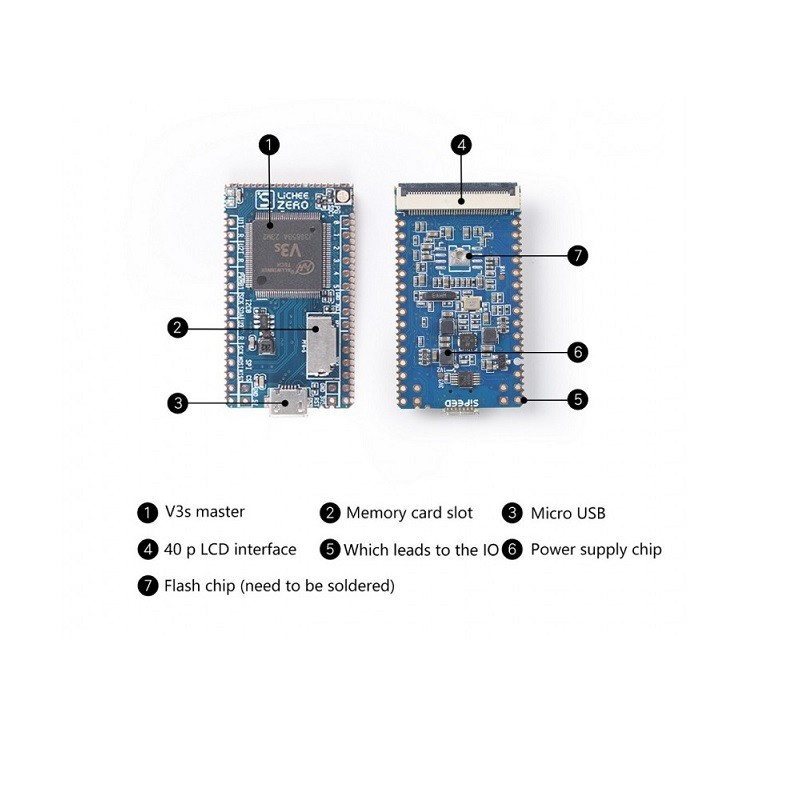

Lichee Zero is a mini development board designed around Allwinners V3s high-performance CPL chip, featuring an ARM Cortex-A7 core. The boards compact and refined design ensures that all of the chips resources are fully utilized and exposed. It comes equipped with onboard USB, Flash, TF card, and a 4OP LCD interface, making it exceptionally versatile for developers. Additionally, all IO resources are conveniently drawn out, allowing for easy expansion and utilization.

This development board is ideal for beginners looking to learn Linux or for commercial product development. Its small size and comprehensive features make it a perfect choice for those seeking a user-friendly and adaptable platform for their projects.

Features:

1. The board features a universal 40P RGB LCD FPC holder, allowing direct connection to common 4.3/5/7-inch screens with onboard backlight drivers.
2. An adapter board enables the connection of 50P 7/9-inch screens.
3. It supports various resolutions such as 272480, 480800, and 1024600.
4. Additionally, it includes a resistive touchscreen chip to support resistive screens.
5. Communication interfaces include two SDIO ports (compatible with matching SDIO WiFi+BT module), one SPI port, two I2C ports, three UART ports, one 100M Ethernet port (including EPHY), one OTG USB port, and one MIPI CSI port.
6. Other interfaces include two PWM ports, one LRADC port, and two speaker ports along with one microphone port.

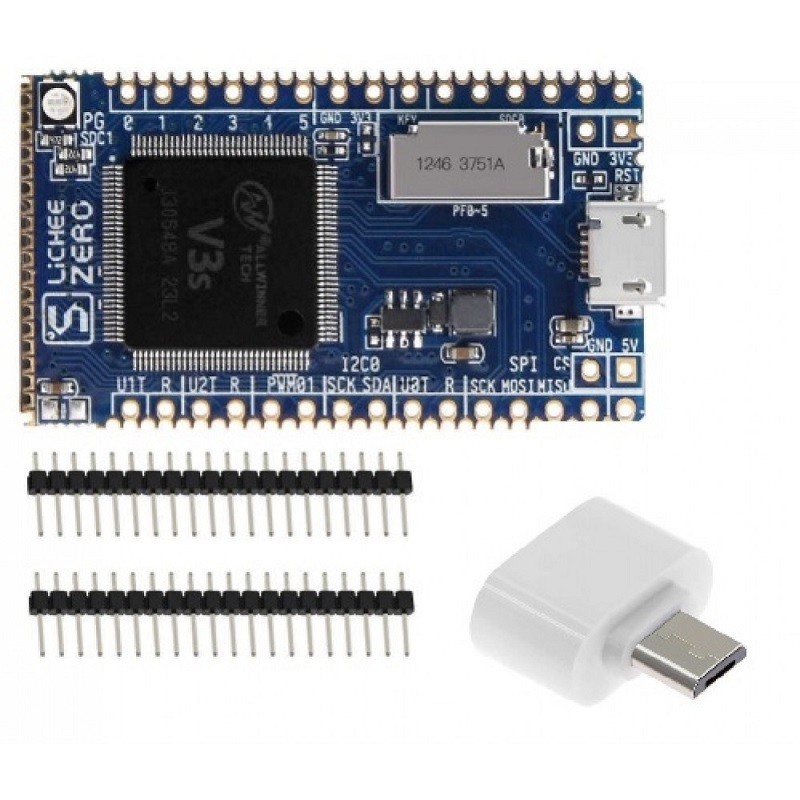

Package Includes:

1 x Sipeed Lichee Pi Zero

1 x OTG USB

2 x (20 Pins) Pin Header
