Slotted Opto Isolator Module - MOC-7811
- Product Code: EPI20801
- Availability: 557
-
Rs.18.00
- (Excluding 18% GST)
OR

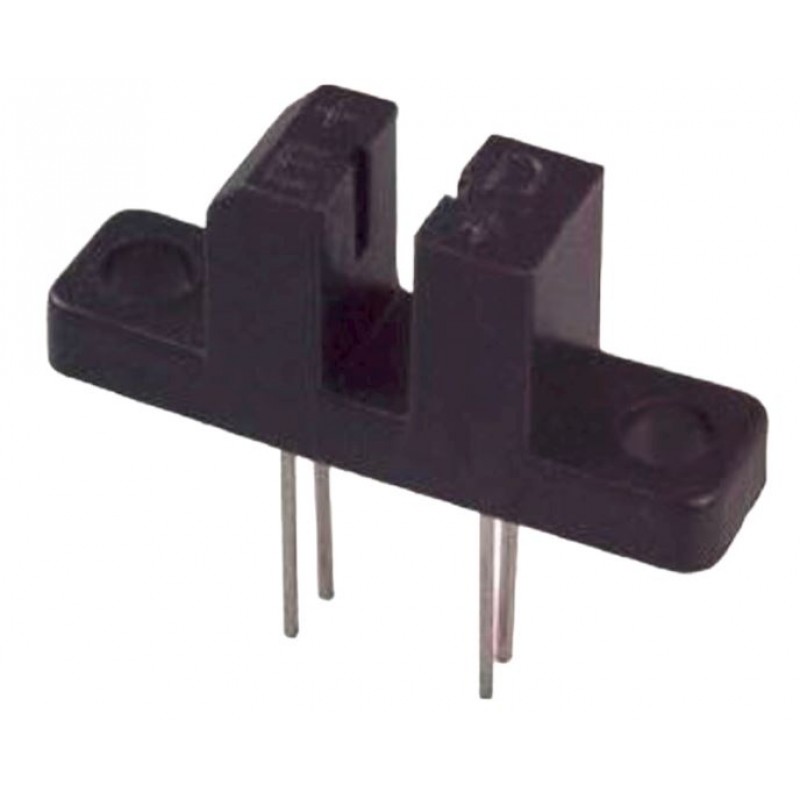

Slotted Opto Isolator Module - MOC-7811
Encoder sensors or also known as Slotted couplers and Opto-Interrupters are widely used for applications required to monitor any interruptions. The MOC module comes in a plastic moulding that houses an emitter and receiver section.

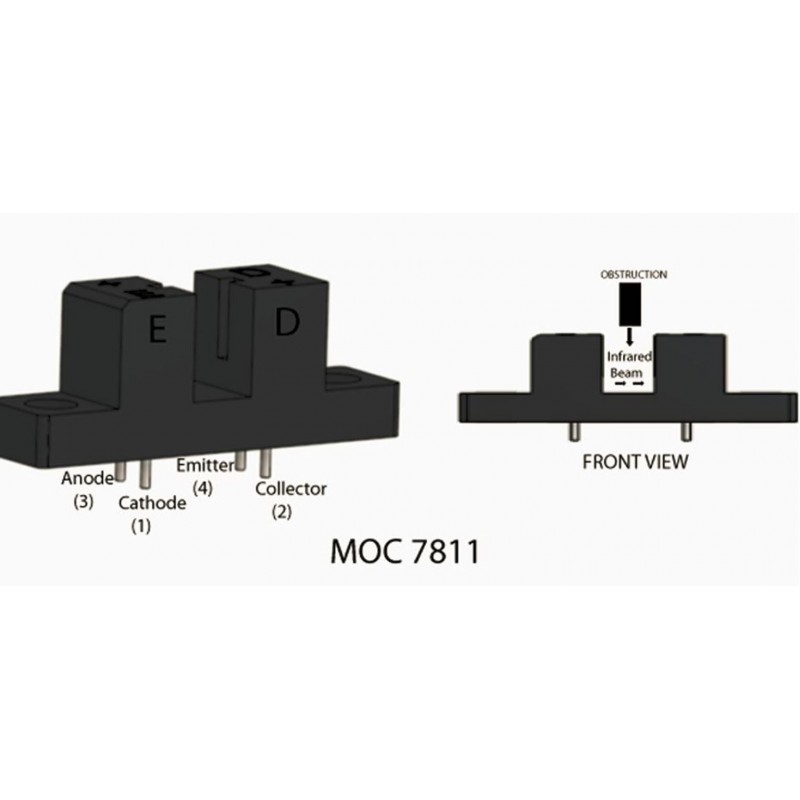

Pin Configuration of MOC-7811
- Pin 1 : Cathode
- Pin 2 : Collector
- Pin 3 : Anode
- Pin 4 : Emitter
Applications:-
- Works as a switch, to monitor on/off signal.
- Can be used to determine the RPM of a motor.
- Can be used as smoke sensors.
- Used in End stops/Parking positions for motors in 3D printers/CNC machines.
- To monitor any interruption.
Features and Specifications:-
- Input Voltage: 5V
- Current limit: 50mA
- Transistor output(Vceo): 30V
Package Includes:-
1 x Slotted Opto Isolator Module - MOC-7811
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 76.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
