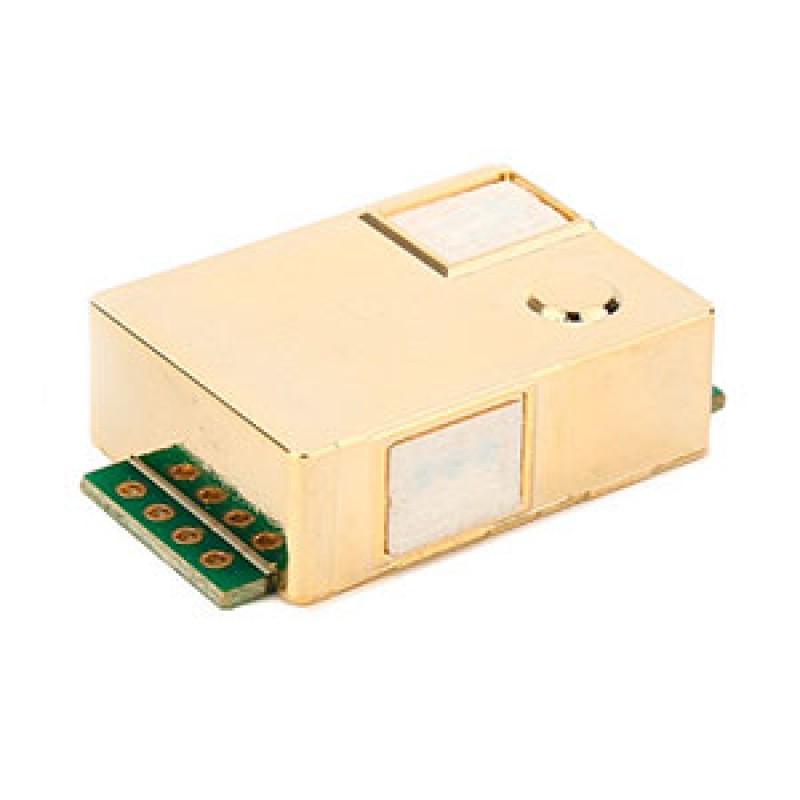

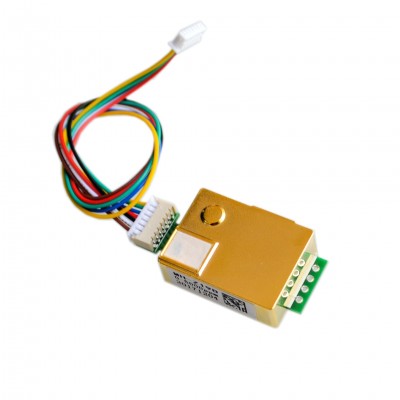

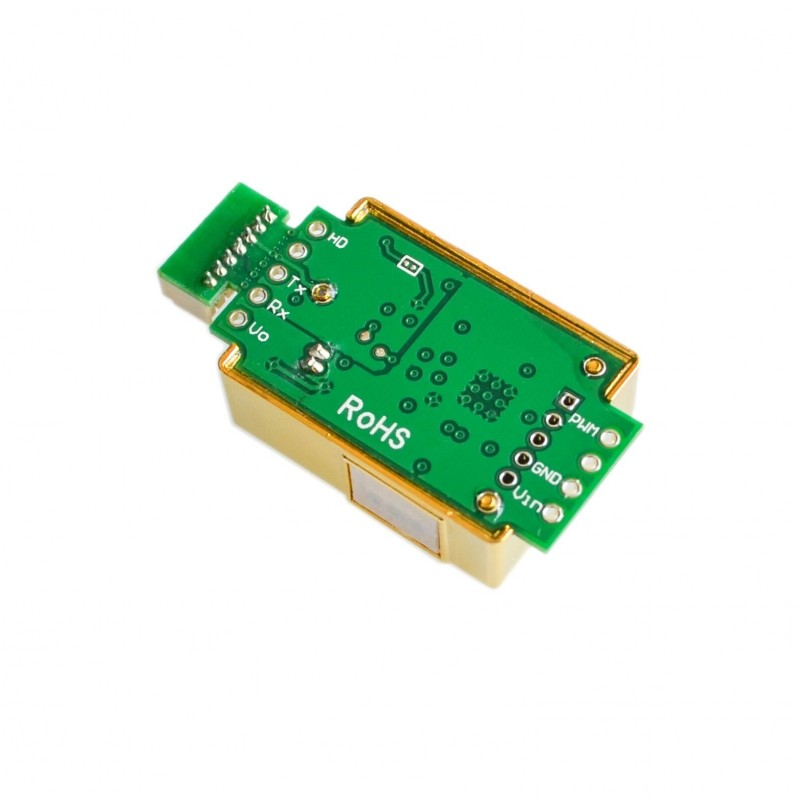

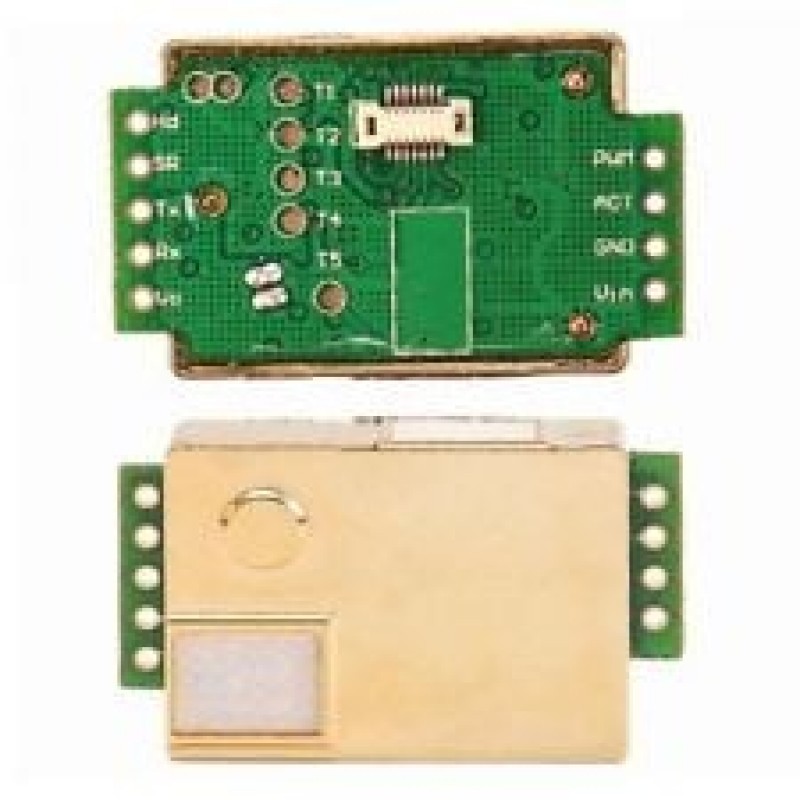

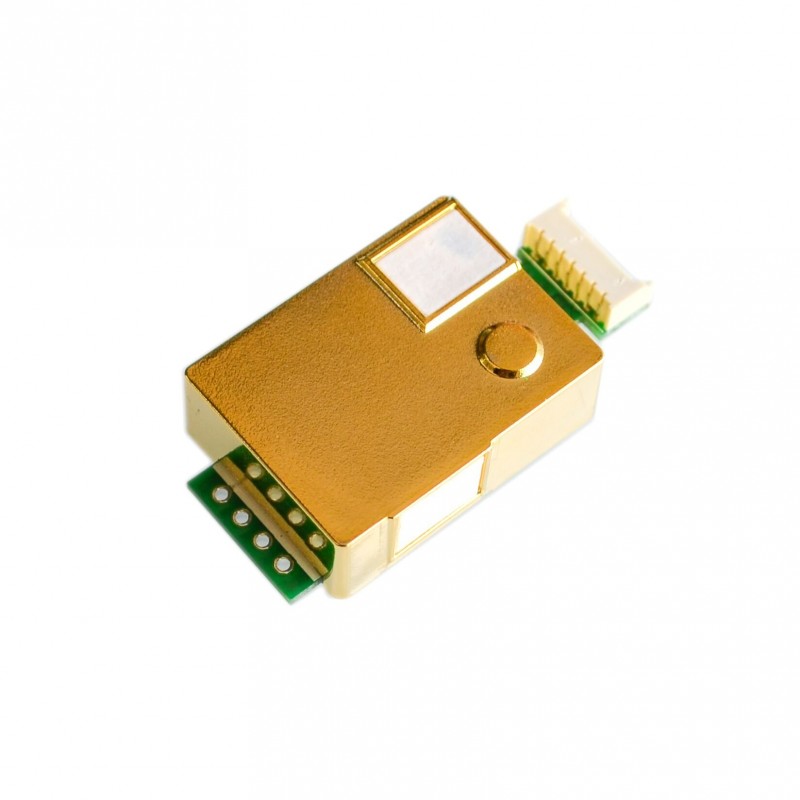

MH-Z19 Infrared CO2 Sensor Module for CO2 monitor
- Product Code: EPI12816
- Availability: 4
-
Rs.2285.00
- (Excluding 18% GST)
OR
This is MH-Z19 Infrared CO2 Sensor Module for CO2 monitor. The MH-Z19 NDIR infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO 2 in the air, with good selectivity, non-oxygen dependent and long life The built-in temperature sensor can do temperature compensation; it has digital output an analog voltage output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design, and superior circuit design. MH-Z19 NDIR infrared gas module is widely used in the HVAC refrigeration and indoor air quality monitoring.
Features :
- High sensitivity, high resolution.
- Low energy consumption.
- Output mode: UART and PWM wave.
- Temperature compensation, excellent linear output.
- Good stability.
- Long lifespan.
- Anti-interference of water vapor.
- No poisoning.
Package Includes :
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 2964.16 (Inclusive of all Taxes) |
