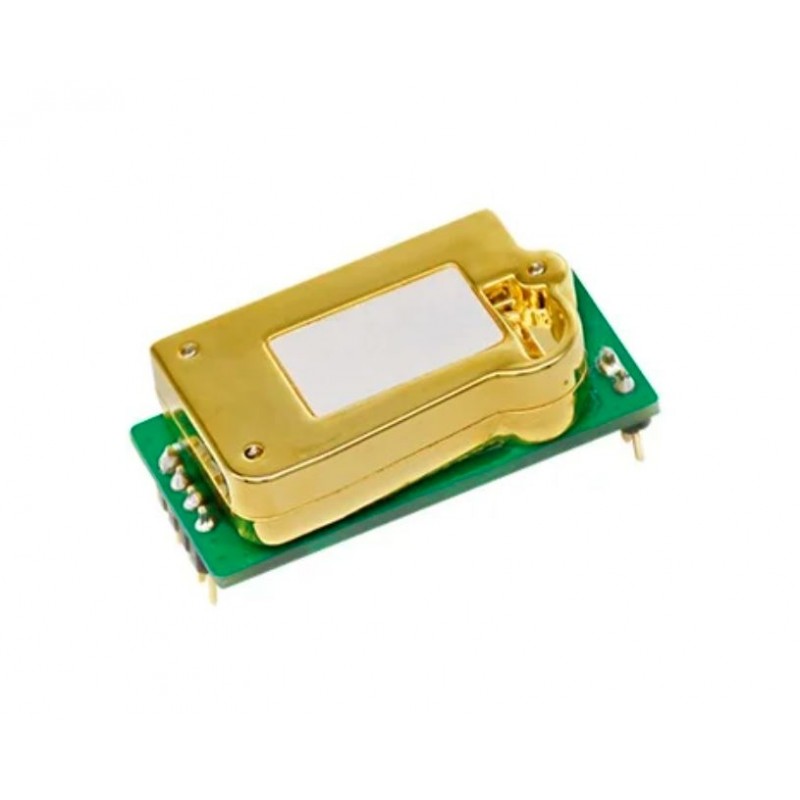

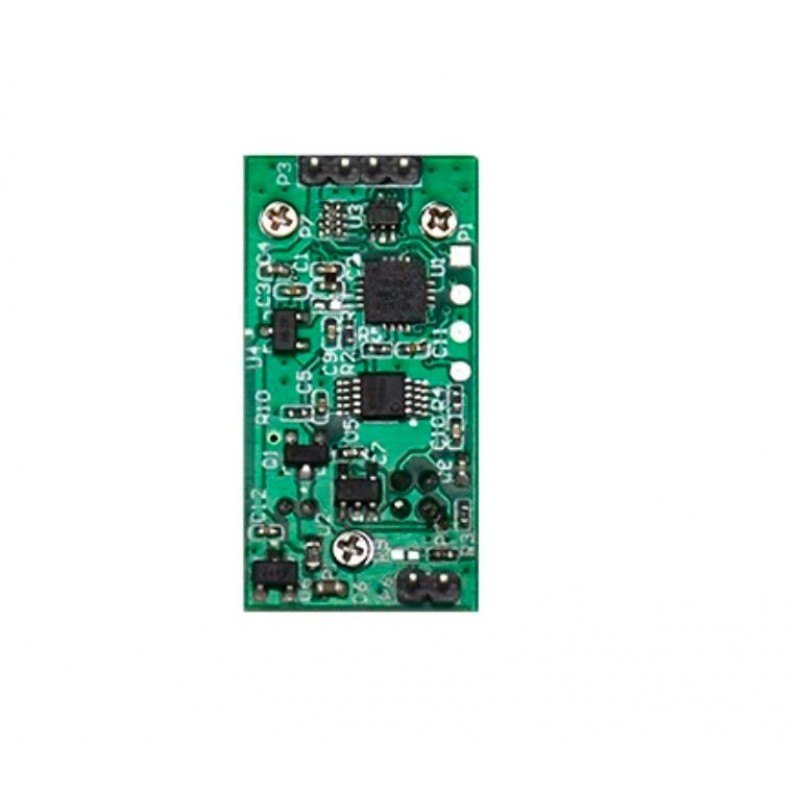

ACD10 Infrared Carbon Dioxide Sensor

ACD10 uses the principle of non-dispersive infrared (NDIR) to detect the concentration of carbon dioxide in the air. ACD10 has the advantages of good selectivity, no oxygen dependence, and long life; built-in temperature compensation; with digital interface output, easy to use. ACD10 is a high-performance sensor that combines infrared absorption gas detection technology, precise optical circuit design, and high-precision signal detection circuit design.

Features:-

• Small and compact, simple design
• Fully calibrated
• Standard digital output
• Excellent long-term stability
• Quick response, fast recovery time, strong anti-interference ability

Specifications:-

• Model : ACD10
• Product Type : Infrared carbon dioxide sensor
• Operating Voltage : 4.75-5.25V
• Working Current Average current : ＜45mA
• Typical Power : 225mW@5V
• Measuring Range : 400~5000ppm
• Precision : ±(50ppm+5% reading)
• Preheat Time : 120 seconds
• Operating Conditions : -10℃~+50℃; 0~95%RH (non-condensing)

Package Includes:-

1 x ACD10 Infrared Carbon Dioxide Sensor
