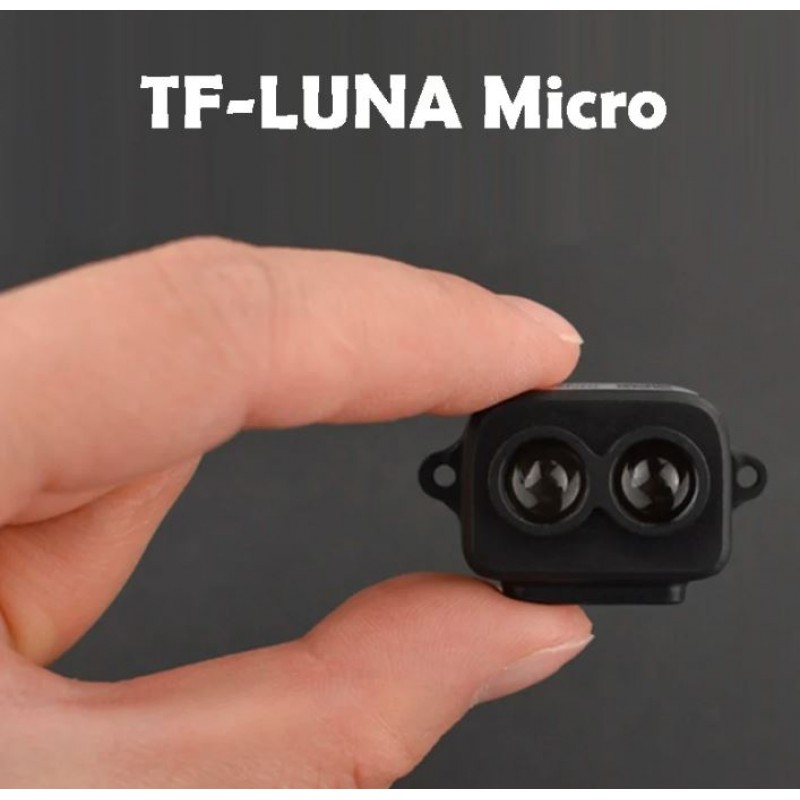

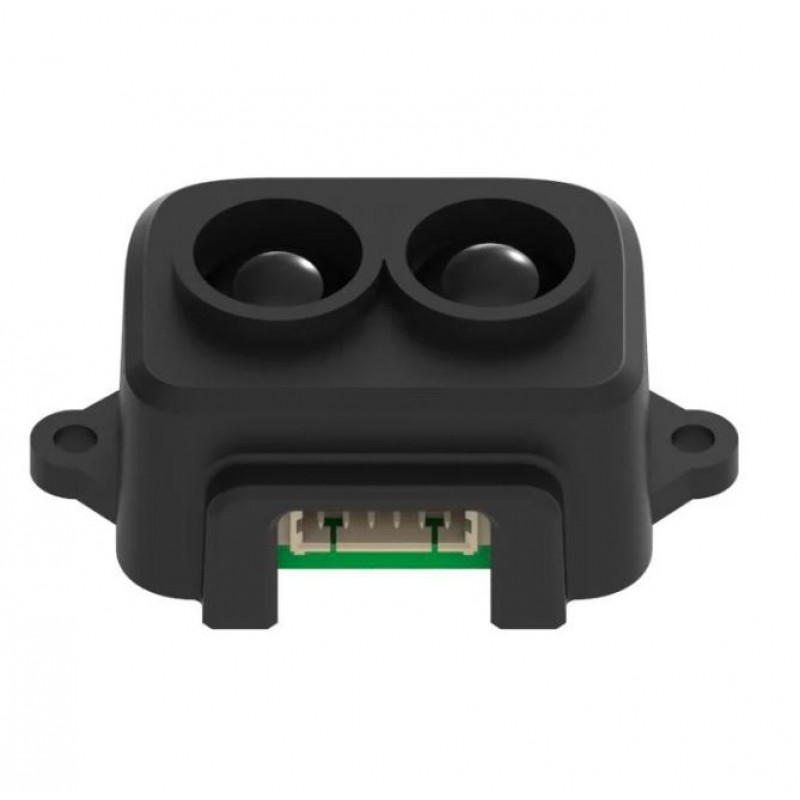

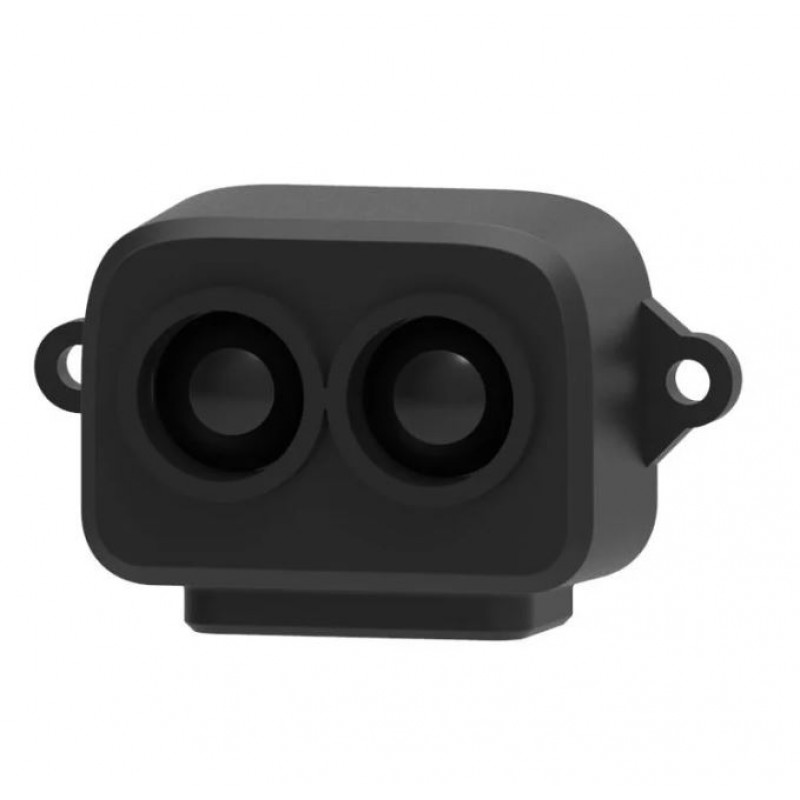

TF-LUNA Micro LiDAR Distance Sensor for IoT ITS - 8M

If you want to detect Obstacles with your drones then the Benewake TF03 100M Long Distance Laser Lidar/Rangefinder is a quite good solution. No matter If you are a newbie, you can learn more things about this distance sensor.

TF-Luna is a single-point ranging LiDAR, based on the TOF principle. With unique optical and electrical design, it can achieve stable, accurate, and highly sensitive range measurement. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.

The TF Luna is suitable for its technical specifications and its ultra-compact size perfect for identification applications of all kinds. This includes, for example, level measurements, lift systems, or applications in intrusion detection. Due to its easy installation and integration, you can use the LiDAR from Benewake also used in numerous other projects.

Product Characteristics:

The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.

Extreme Cost Performance

Low-cost ranging LiDAR module, with 0.2-8m operating range. TF-Luna has a highly stable, accurate, sensitive range detection.

Slim Figure Yet Big Skill

The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.

The TF-Luna adopts serial communication protocol so that it can connect to any control board supporting serial port communication like Arduino, Raspberry Pi, etc.

Features:-

• The range is up to 8 meters
• Low power consumption
• Wide range of temperature adaptation and voltage input.
• It has high accuracy and frequency.
• Small size
• Lightweight

Applications:-

• Auxiliary focus
•  Elevator projection
• Intrusion detection
• Level measurement
• UAV/UAS Robots

Specifications:-

• Accuracy : ±6cm@(0.2m-3m)
•            ±2%@(3m-8m)
• Distance resolution(cm) : 1
• Frame rate(Hz) : 1-250Hz(Default 100Hz)
• Communication Interface : UART / I2C
• Ambient light immunity : 70Klux
• Operating Temperature(℃) : -10℃~60℃
• FOV : 2°
• Supply voltage : 5V±0.1V
• Cable Length(cm) : 30
• Average current : ≤70mA

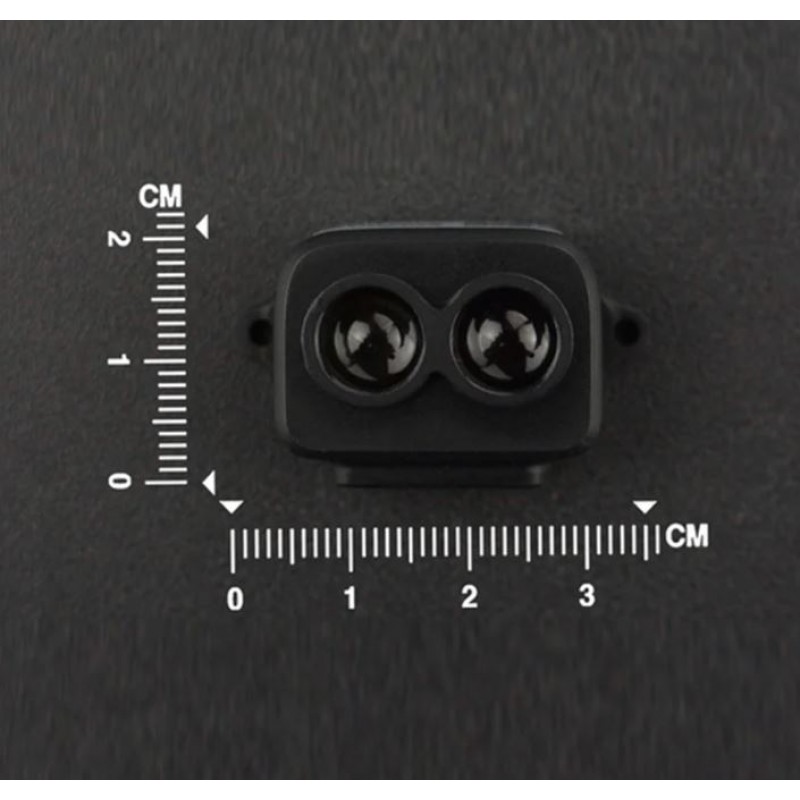

• Dimension in mm (L*W*H) : 35*21.25*13.5
• Power consumption : ≤0.35W
• Peak current : 150mA
• Weight(g) : ＜5g

Package Includes:-

1 x TF-LUNA Micro LiDAR Distance Sensor for IoT ITS - 8M
