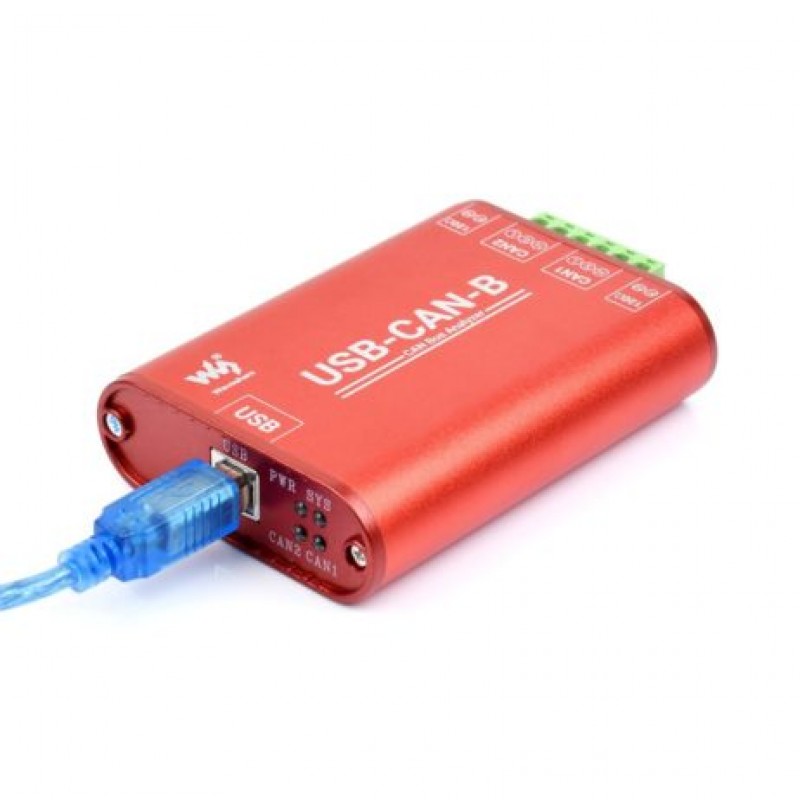

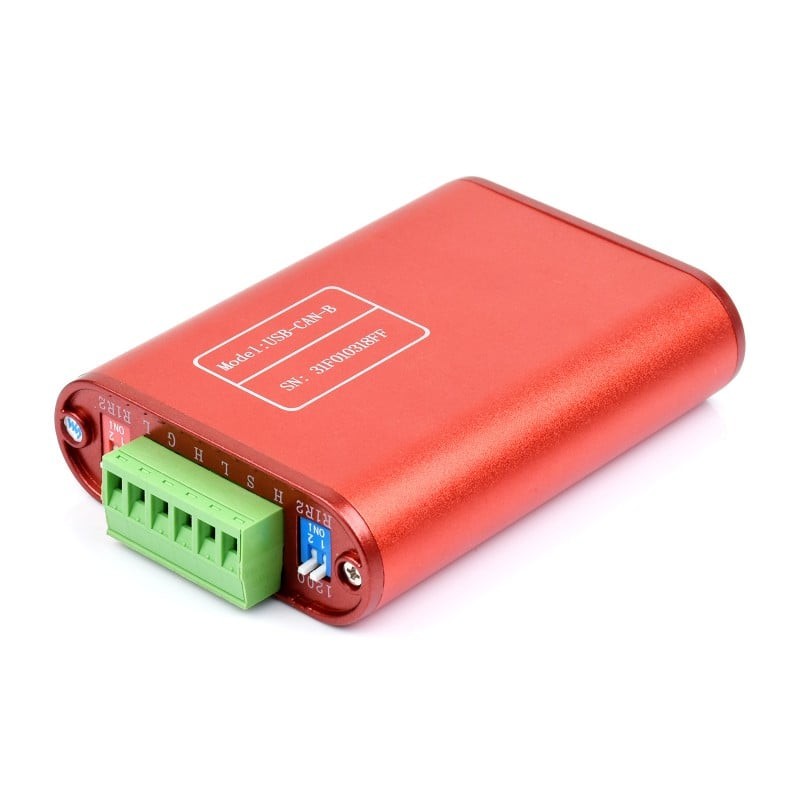

Waveshare USB to CAN Adapter, Dual-Channel CAN Analyzer, Industrial Isolation

USB To CAN Adapter, Dual-Channel CAN Analyzer, Industrial Isolation. Adopt High-Speed USB2.0 Interface, Compatible With USB 1.1 And USB 3.0 Dual CAN Bus Interfaces Support Two-Way Transmission, Can Work Independently Without Affecting Each Other CAN Baud Rate Is Configurable In The Range Of 10Kbps-1Mbps Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool. Support CAN 2.0A, CAN 2.0B, CANOpen, SAE1939, DeviceNet, ICAN, ISO 15765 Protocols . Provide examples for secondary development projects on various mainstream development platforms: C++Builder, C#, VC, VB, VB.NET, Delphi, LabVIEW, LabWindows/CVI, Q, Matlab, Python/Python-can, Qt samples under Linux

Features:

1. Compact in size and easy to use,
2. Integrating dual independent channels with electrical isolation and multiple protection circuits
3. Supports Windows and Linux systems, and comes with drivers
4. It can be connected to the PC or industrial control host via a USB port to realize transceiver control,

Package Includes:

1 x USB-CAN-B

2 x Car OBD adapter

1 x USB type A plug to type B plug cable

1 x 4pin cable

1 x Screwdriver
