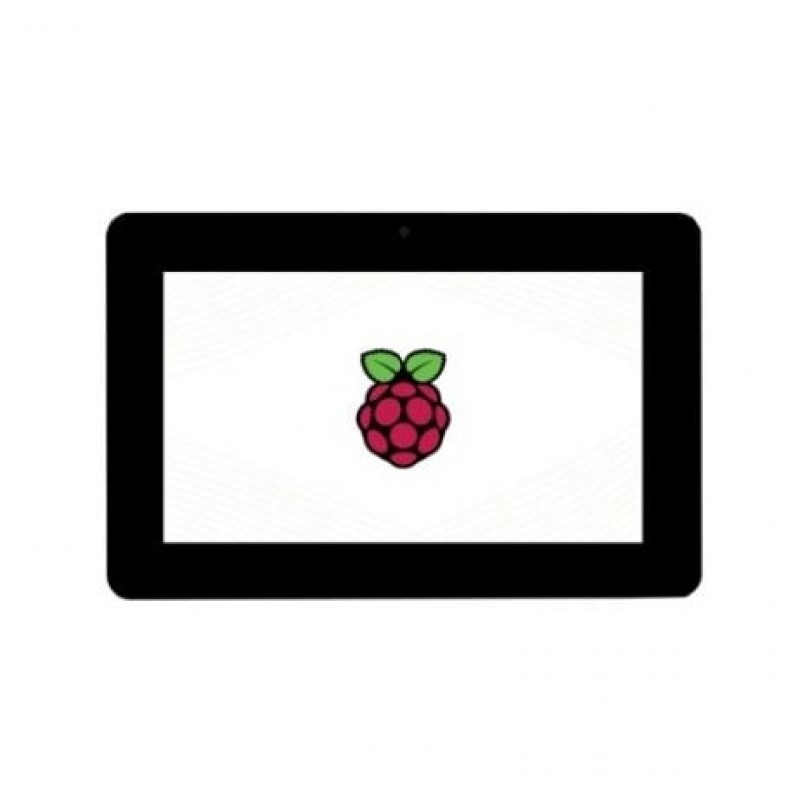

Waveshare 8inch Capacitive Touch Display for Raspberry Pi, DSI Interface, 800x480

1. The anti-interference design of LCD FFC line makes it more stable for industrial use.
2. The VCOM voltage adjustment resistor can adjust the VCOM voltage to achieve the best display effect.
3. The thimble can be used for power supply, reducing tedious wiring.
4. Two types of 5V power output interfaces are convenient for users to connect cooling fans or supply power to other low-power devices.
5. The camera hole is reserved on the touch panel, which is convenient for users to integrate an external camera.
6. The large cover design makes it easy to design the case and is easy to be embedded in various equipment.

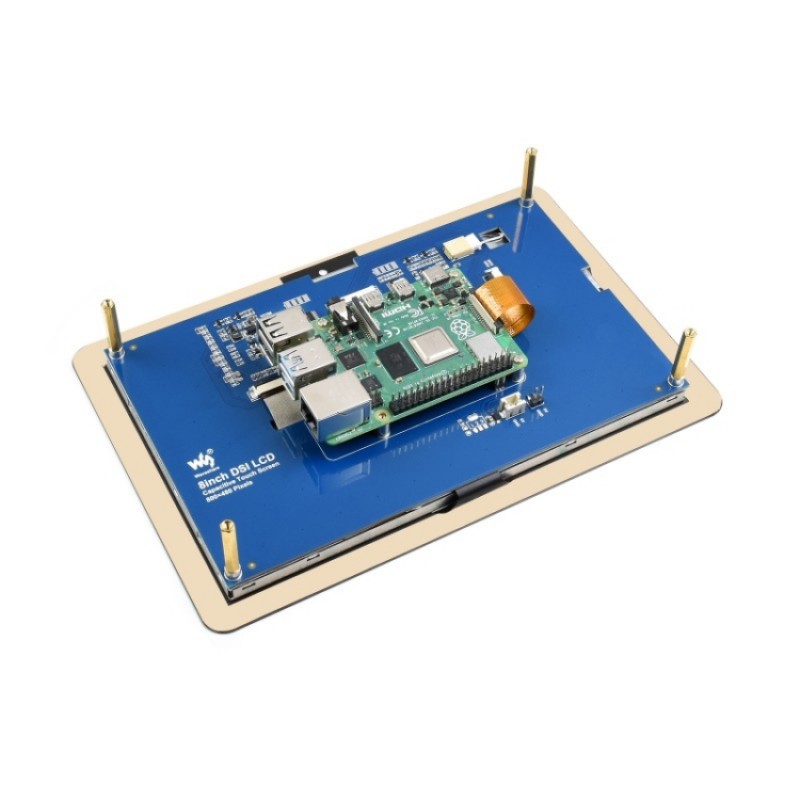

7. The chip nuts support and fix the Raspberry Pi mainboard to the back of the LCD, and the structure is more compact.

Features:

1. 8inch capacitive touch screen. 800480 hardware resolution
2. Capacitive touch panel, support 5-point touch

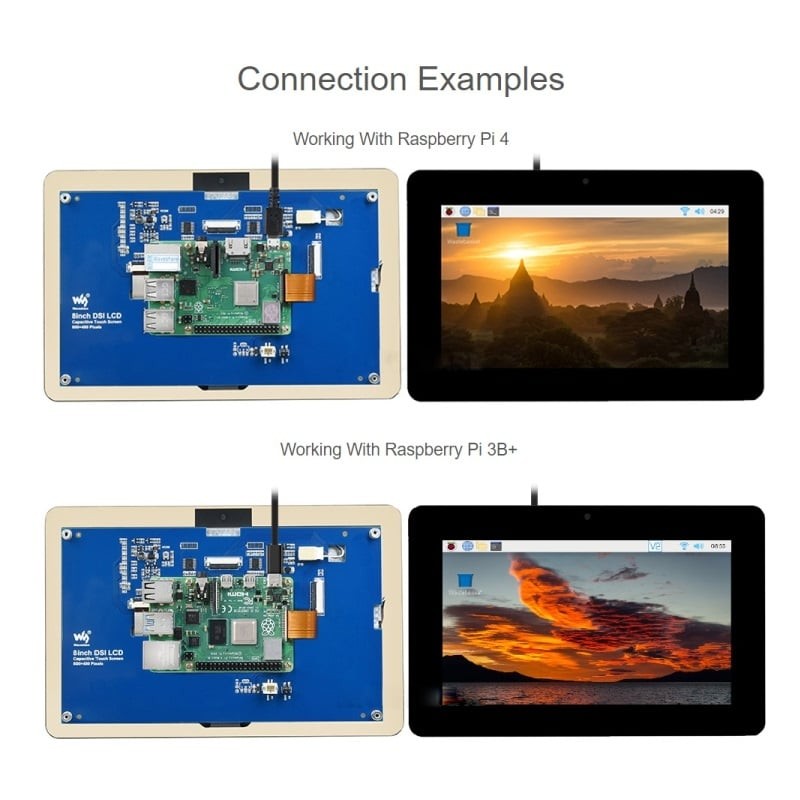

3. Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter cable is required for CM3/3+/4a:DSI-Cable-15cm
4. Directly drive LCD through DSI interface of Raspberry Pi, refresh rate up to 60Hz
5. Working with Raspberry Pi, supports Raspberry Pi OS/Ubuntu/Kali and WIN 10 IoT, driver-free.
6. Support backlight adjusts by software

Package Includes:

1. 8inch DSI LCD x1
2. 2PIN wire 10cm x1
3. Screws pack x1
