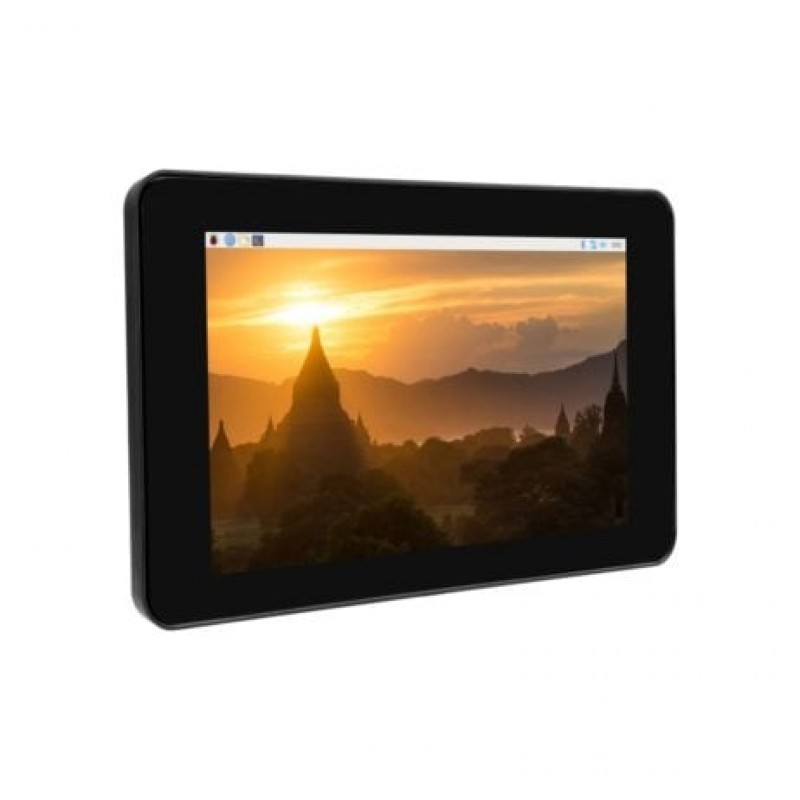

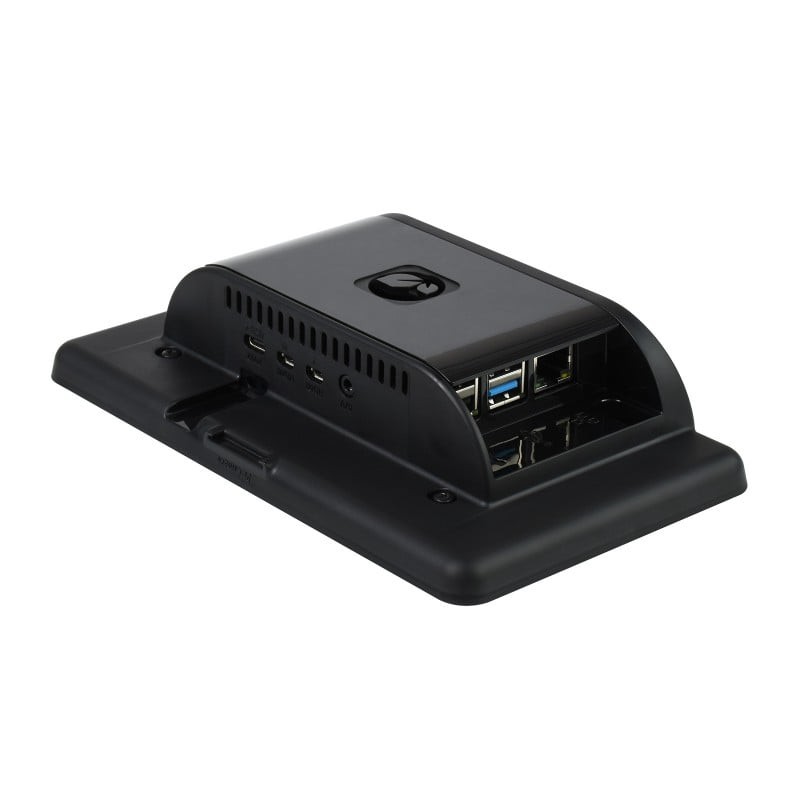

Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024x600, DSI Interface

Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi, with Protection Case, 1024600, DSI Interface

Features:

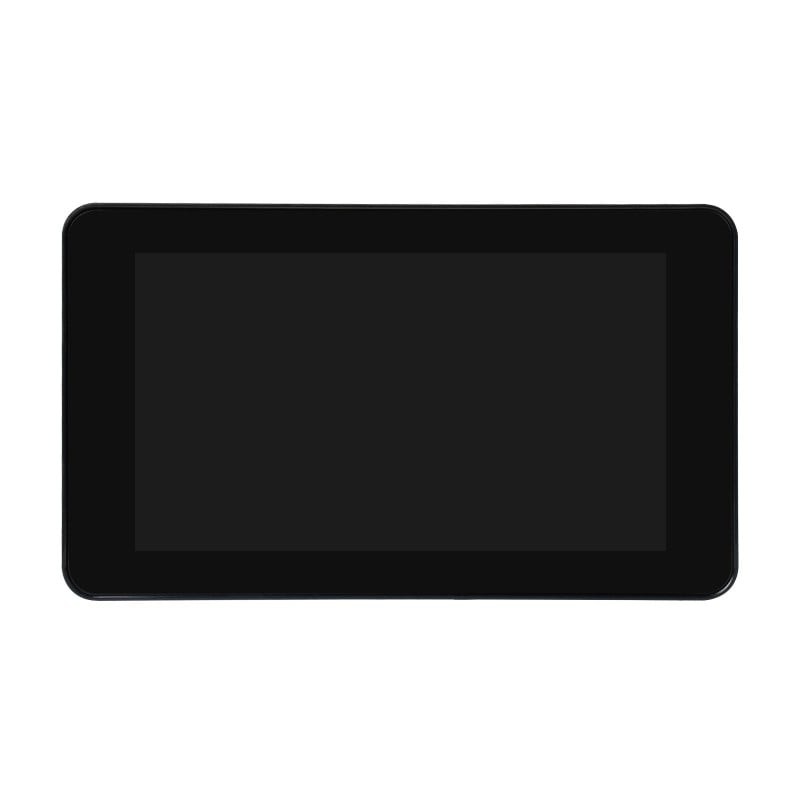

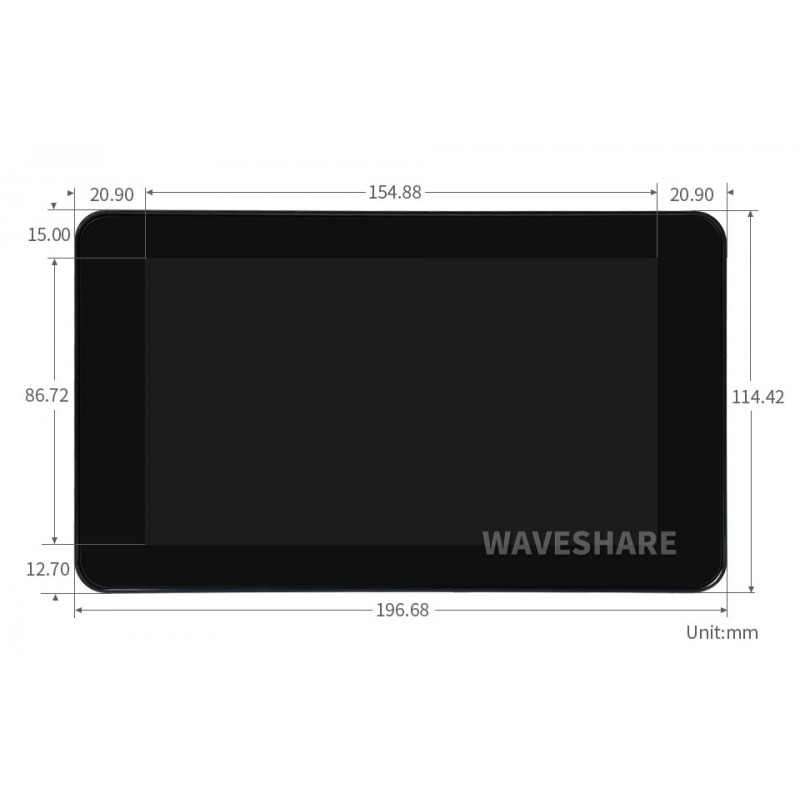

1. 7inch IPS display with capacitive touch panel, hardware resolution is 1024 x 600

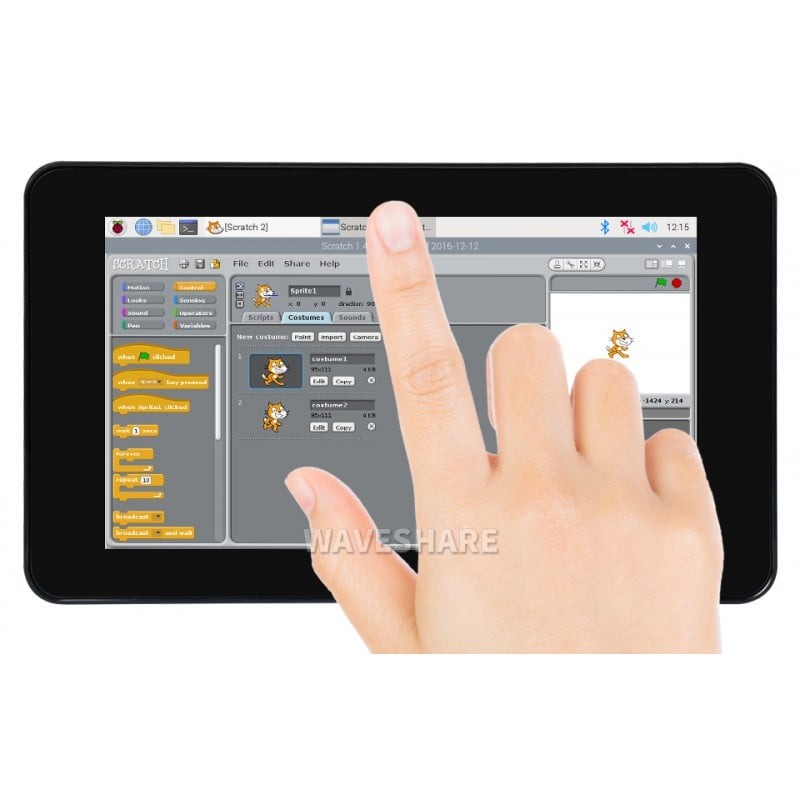

2. Capacitive touch, supports up to 5-points touch
3. Toughened glass capacitive touch panel, 6H hardness
4. DSI interface, refresh rate up to 60Hz.

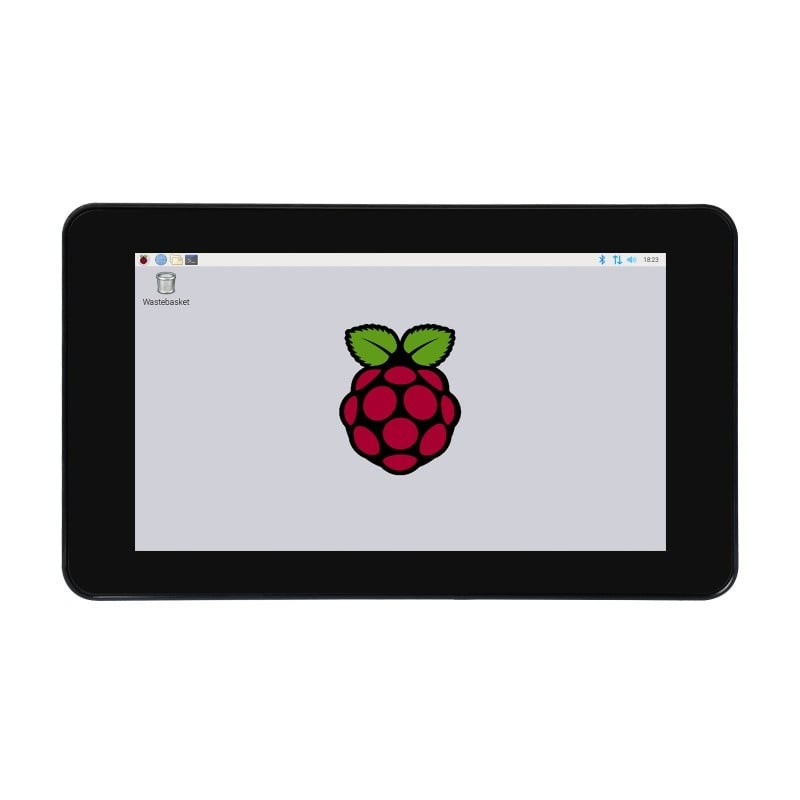

5. Driver is provided for Raspberry Pi OS (Raspbian)
6. Brightness is adjustable by software

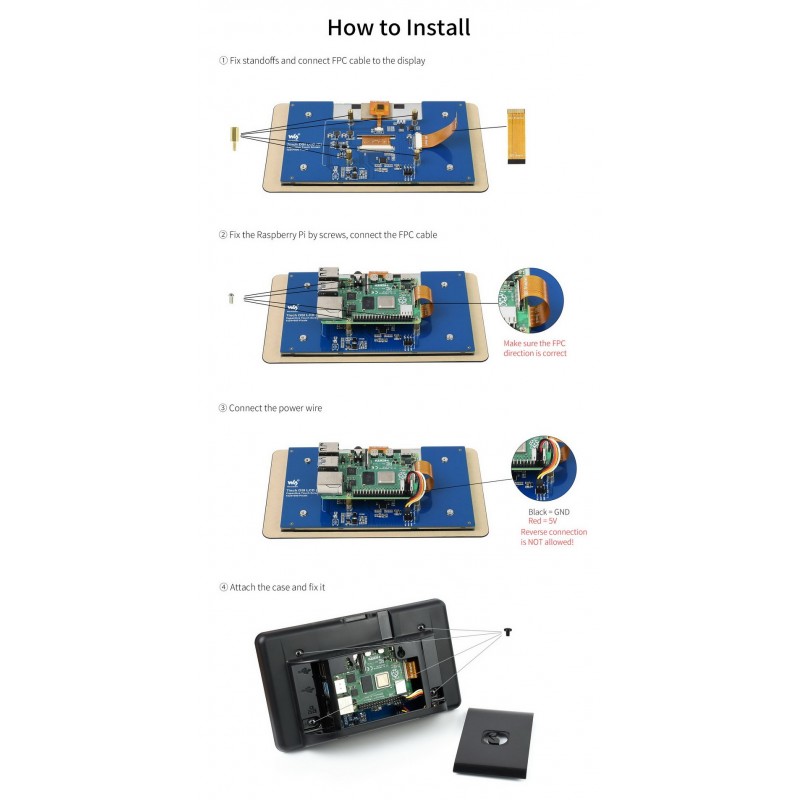

Hardware Connection

1. Connect the 7inch DSI LCD (C) (display hereafter) to the DSI interface of Raspberry Pi boards by 15PIN FPC cable.

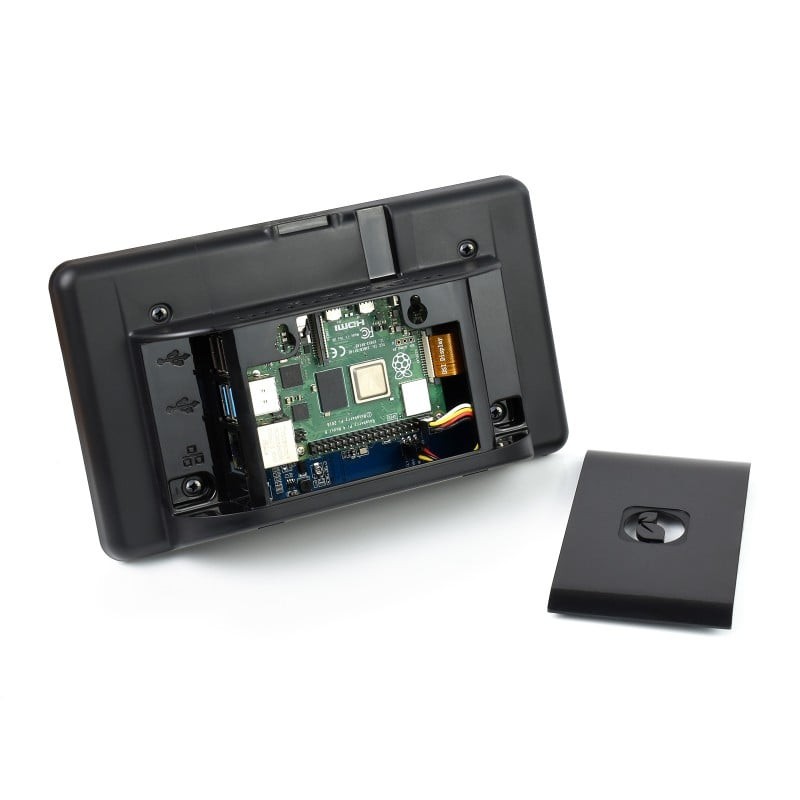

2. For easy use, you can fix the Raspberry Pi board to the backside of the display by standoffs and screws provided.
3. Connect the 4PIN cable between the display and the 40PIN of Raspberry Pi according to the figure below.

Useful link:

For Software setup, please follow this tutorial.

Package Includes:

1 x Waveshare 7inch Capacitive Touch IPS Display

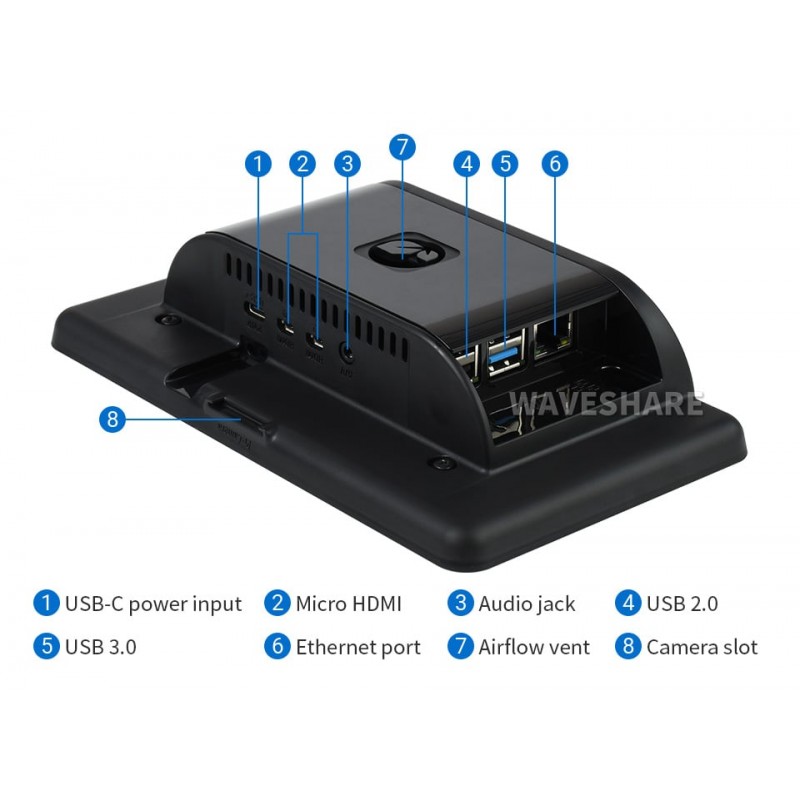

1 x Protection Case
