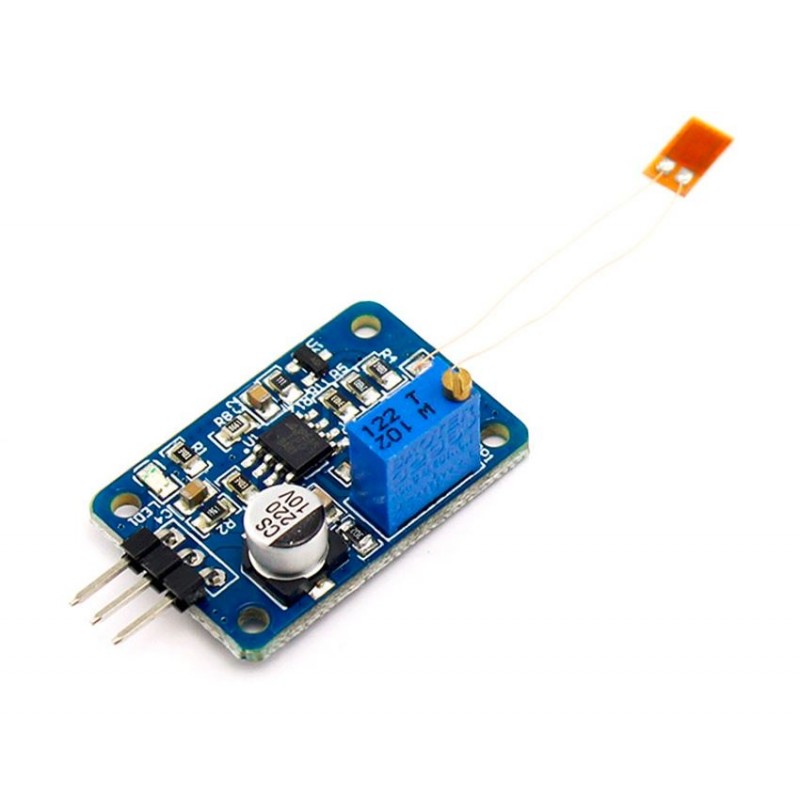

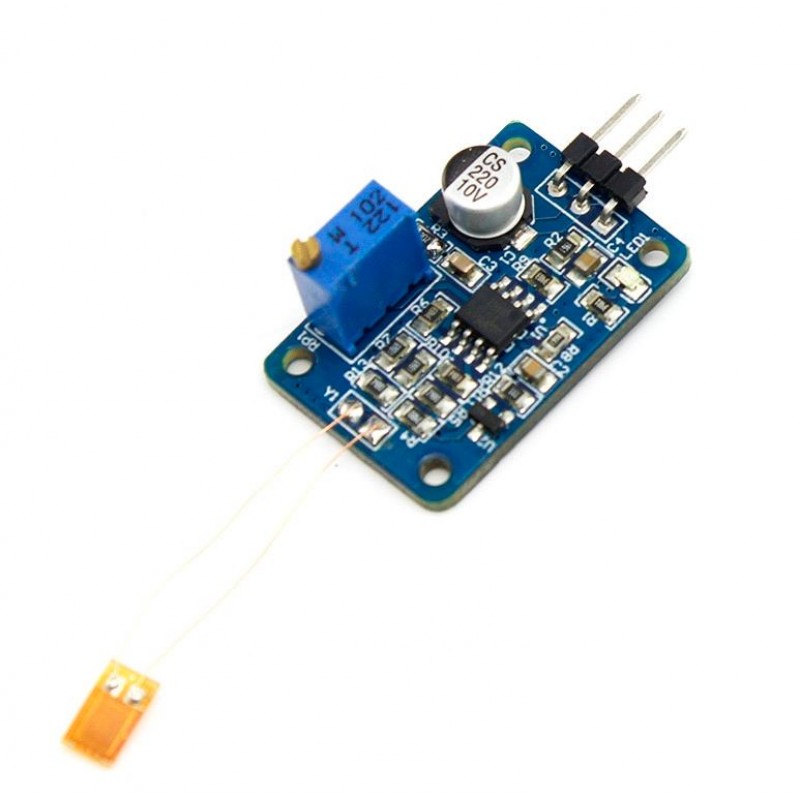

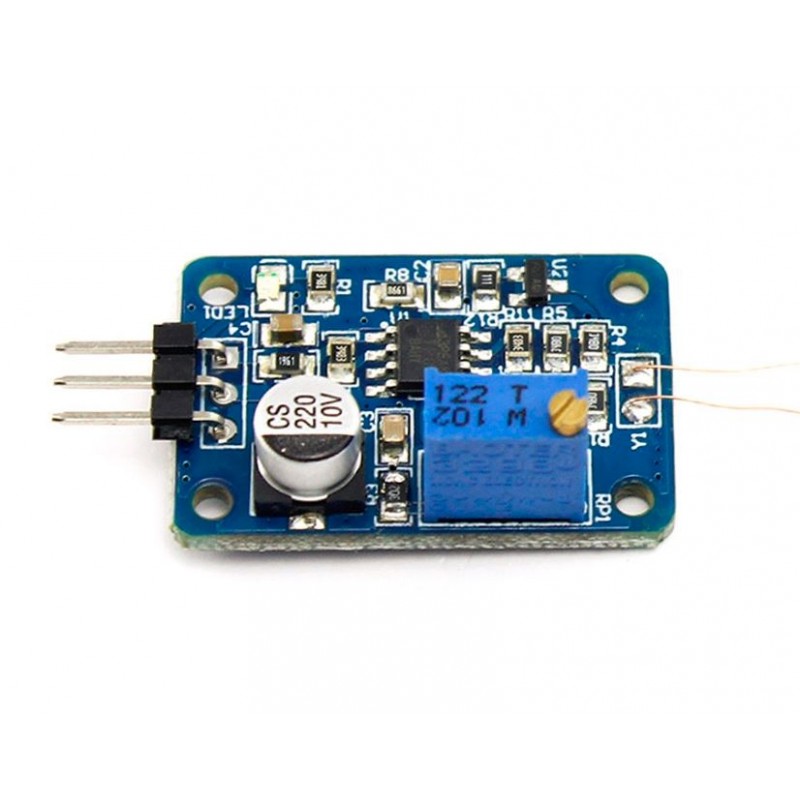

Strain Gauge Bending Flex Sensor Weighing Amplifier Module Y3

Strain Gauge Module. A strain gauge is a device used to measure strain on an object. This strain gauge module uses the strain gauge BF350-3AA to detect the strain, with the amplifier and potentiometer on the board to adjust the measured results, users can easily get the result with any microcontroller such as Arduino.

This module can be positively used in measuring deformation (for example, across a bridge by loading positions and effects) in engineering and in physical distortions proportional to loading or thermal environments. In the everyday world, this module can be used for applications such as gating a traffic light into a new sequence when a car on a lightly traveled side-street enters a Tee-intersection.

Features:-

• Voltage: DC5V board with blue LED power indicator analog output
• Bending angle: 0-30 degrees
• The greater the degree of bending, the higher the output voltage: bending downwards, the output value decreases; bending upwards, the output value increases
• With zero potentiometer
• Output analog voltage 0-5V

Specifications:-

• Working Voltage : 5VDC
• Analog Output : 0~3.5VDC
• Potentiometer to adjust the zero point;
• Dimension : 32mm X 17mm
• Gain : 1000

Package Includes:-

1 x Strain Gauge Bending Flex Sensor Weighing Amplifier Module Y3
