STC- 3018 Dual Digital Temperature Controller Thermostat
- Product Code: EPI21224
- Availability: 3
-
Rs.599.00
- (Excluding 18% GST)
OR
STC- 3018 Dual Digital Temperature Controller is a Hygrometer C / F Thermostat. It has a Power supply of 110-220VAC. 5. It has application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc.

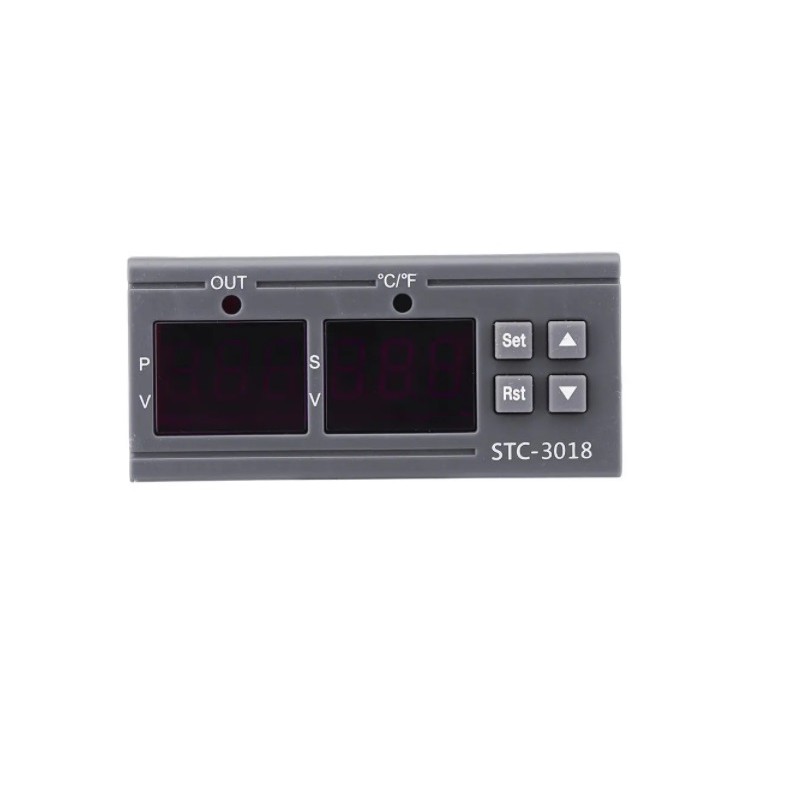

Normal mode: The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature.
Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents.
How to set the start or stop temperature:
- Press the SET button once and the screen flashed, Press the up and Down button to set the temperature.
- Long press SETbutton for 5 seconds to enter set Mode:
Features:
1.Heating or cooling control. Red and blue dual led display
2.Control mode of return difference; Temperature display resolution 0.1
3.Multiple alarm mode selection; Switch between C and F
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid
Package Includes:
1 x STC- 3018 Dual Digital Temperature Controller Thermostat
1 x Waterproof Sensor
Specifications :-
| Power supply | 110-220VAC 10%, 50/60Hz (or DC12V / DC24V) |
| Measurement temperature range | -55 C ~ +120 C |
| Resolution | 0.1 |
| Accuracy | 1 C |
| Relay output contact capacity(heating) | 10A/240VAC |
| Relay output contact capacity(cooling) | 10A/240VCA |
| Temperature sensor | NTC 10K |
| Senor length | 1.0m |
| Power consumption | <3W |
| Shell material | gray ABS flame retardant plastic shell |
| Shipment Weight | 0.4 kg |
| Shipment Dimensions | 8 8 4 cm |
* Product Images are shown for illustrative purposes only and may differ from actual product.
