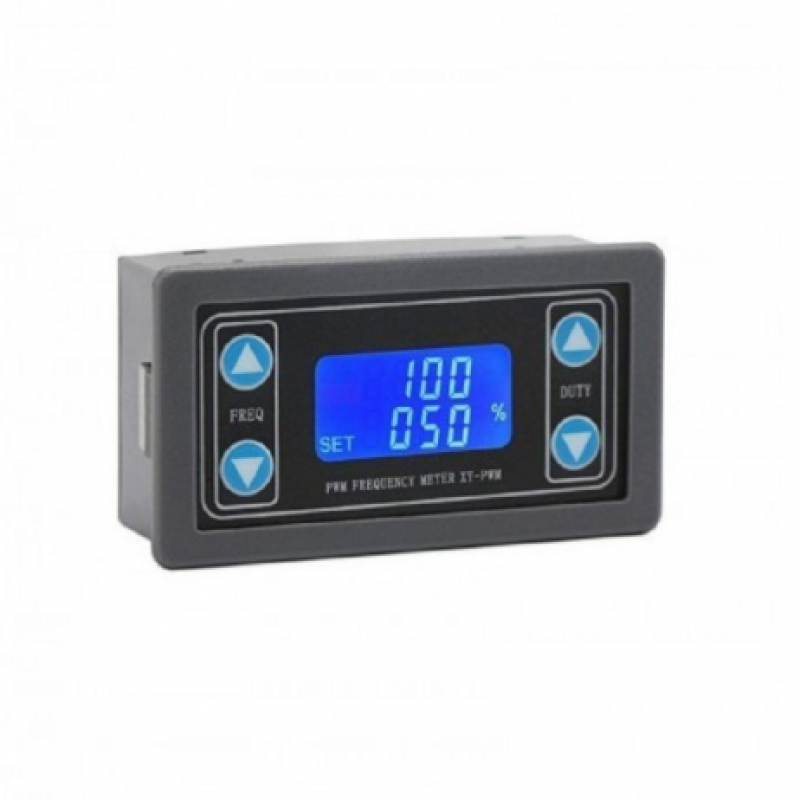

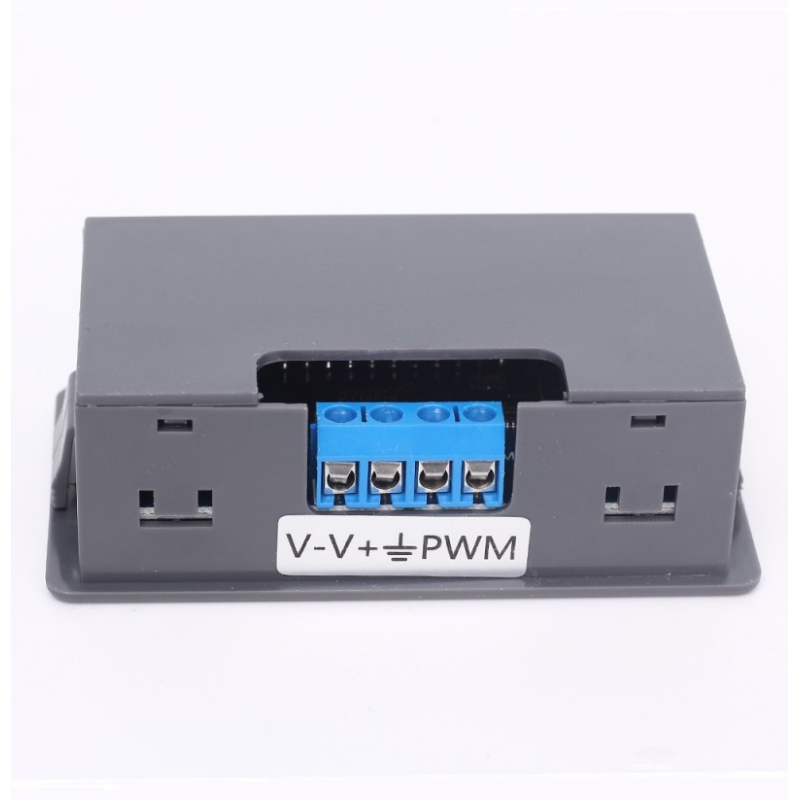

Digital PWM Generator with Display
- Product Code: EPI7746
- Availability: 18
-
Rs.433.06
OR
This is a PWM generator, which is housed in a protective shell. It can generate a PWM frequency from 1Hz to 150KHz. This device can be used where an accurate and reliable source of PWM is required.
Features:
- Bright LCD Display
- Supports UART
- Adjustable Frequency Output
- High Accuracy Detection
- Supporting Power-OFF Memory Function
- Supports Duty Cycle Adjustment
Package Includes:
1 x Digital PWM Generator with Display
Specifications :-
| Model | XY-PWM |
| Microcontroller IC | N76E003AT20 |
| Operating Voltage (VDC) | 3.3 ~ 30 |
| Frequency Range | 1Hz~150KHz |
| Frequency Accuracy | 2% |
| Signal Load Capacity | output current can be around 5~30ma |
| Output Amplitude | PWM amplitude is equal to supply voltage |
| Operating Temperature (C) | -20 to 70 |
| Length (mm) | 79 |
| Width (mm) | 43 |
| Height (mm) | 27 |
| Weight (gm) | 36 |
| Shipment Weight | 0.039 kg |
| Shipment Dimensions | 8 5 3 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
