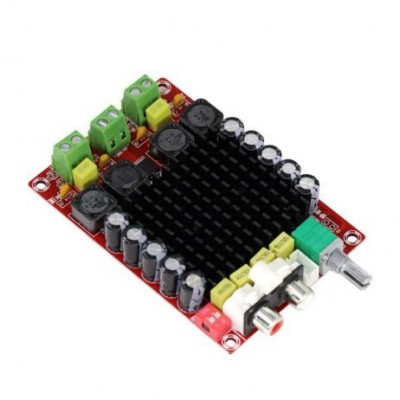

XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
- Product Code: EPI23740
- Availability: 9
-
Rs.819.00
- (Excluding 18% GST)
OR
This amplifier comes with 4 different levels of gain adjustment (21.6dB,27.6dB,31.1dB,33.1dB) to choose the best-suited gain output to your speakers. The module has two stereo channel output with 100w output per channel. It uses differential input to reduce common-mode noise significantly and additionally it has the pattern of the fault and silent mode With intelligent protection function and overheating protection function.
Features:
- Dynamic Operating Voltage: DC 14-32 Volt
- Powerful 200-watt output
- Easy Plug and Play operation
- Intelligent Overcurrent and overheating protection function.
Package Include:
1 x XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
Specifications:
| Model | XH-M510 TDA7498 |
| Input Voltage Range (VDC) | 15 ~ 32 |
| Output power | 100W+100W |
| Output impedance | 4-8Ω |
| Amplifier Type | Class D |
| Harmonic Distortion | Po=1W/0.05% |
| Frequency Response Range | 18-100KHz |
| Switching Frequency | 360KHz |
| Signal to noise ratio | 110 dB |
| Length (mm) | 96 |
| Width (mm) | 70 |
| Height (mm) | 15 |
| Weight (gm) | 90 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 966.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
