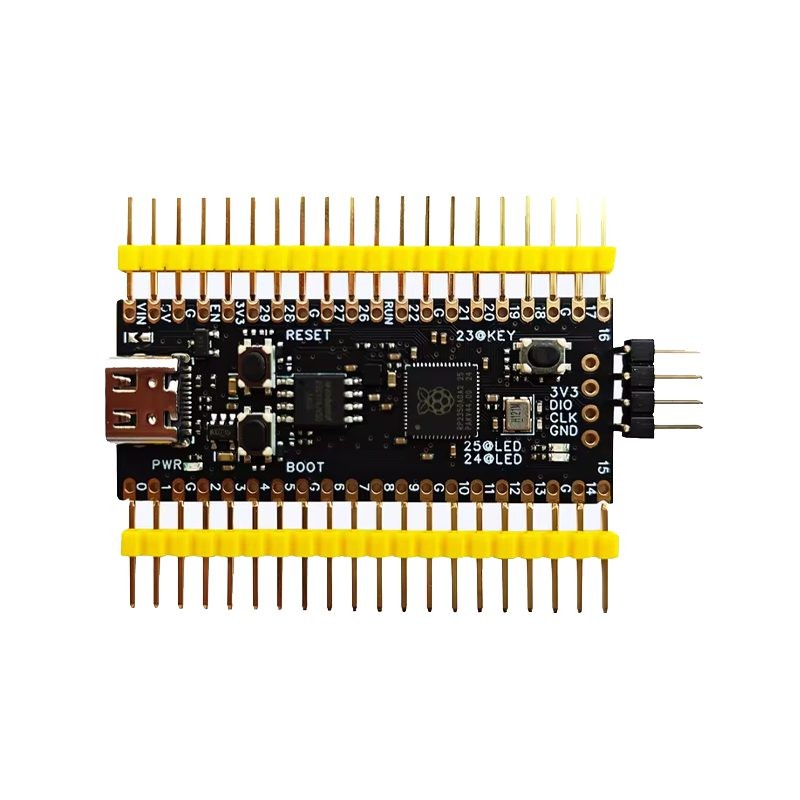

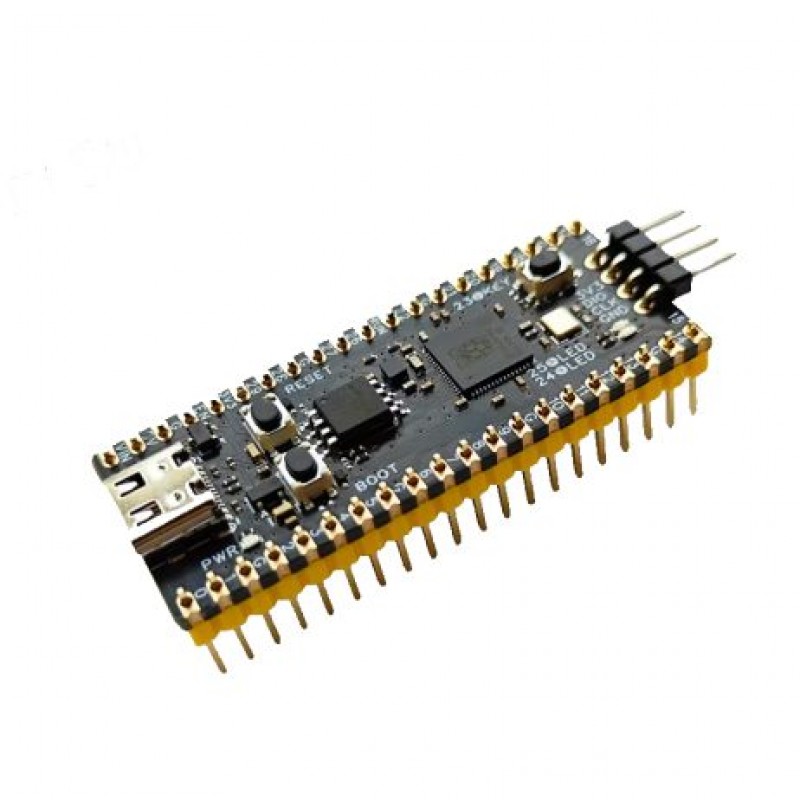

WeAct Studio RP2350A_V10 all pin out Raspberry Pi RP2350 RISC-V Hazard3 520KByte SRAM 4MByte QSPI Flash

The WeAct Studio RP2350A_V10 all pin out Raspberry Pi RP2350 is a compact and versatile development board powered by the Raspberry Pi RP2350 RISC-V microcontroller, featuring a dual-core Hazard3-based architecture. With 520KB of SRAM and 4MB of onboard QSPI Flash, it offers sufficient memory for complex embedded applications. All GPIO pins are fully broken out, allowing easy access to UART, SPI, I2C, PWM, and ADC peripherals. Measuring just 21mm x 51mm, the board is breadboard-friendly and ideal for prototyping, IoT projects, and RISC-V learning. It includes standard 2.54mm pitch pin headers for quick integration and supports standard RISC-V toolchains such as GCC and OpenOCD. The board is open-source with full hardware and firmware resources available on GitHub, making it highly accessible for developers and educators. The package includes the core board and pin headers for soldering and connectivity.

Features:

1. Processor: Raspberry Pi RP2350 RISC-V dual-core MCU based on Hazard3 architecture.
2. Memory: 520KB on-chip SRAM for high-performance applications.
3. Storage: 4MB QSPI Flash memory for code and data storage.
4. Pin Compatibility: All GPIO pins broken out for full access.
5. Form Factor: Compact size (21mm x 51mm), breadboard friendly.
6. Debug Support: On-board debug support via SWD/JTAG.
7. Peripheral Support: Multiple UART, SPI, I2C, PWM, and ADC interface

Package Includes:

1 x WeAct Studio RP2350A_V10 all pin out Raspberry Pi RP2350 RISC-V Hazard3 520KByte SRAM 4MByte QSPI Flash

1 x Header Pin

1 x Connector
