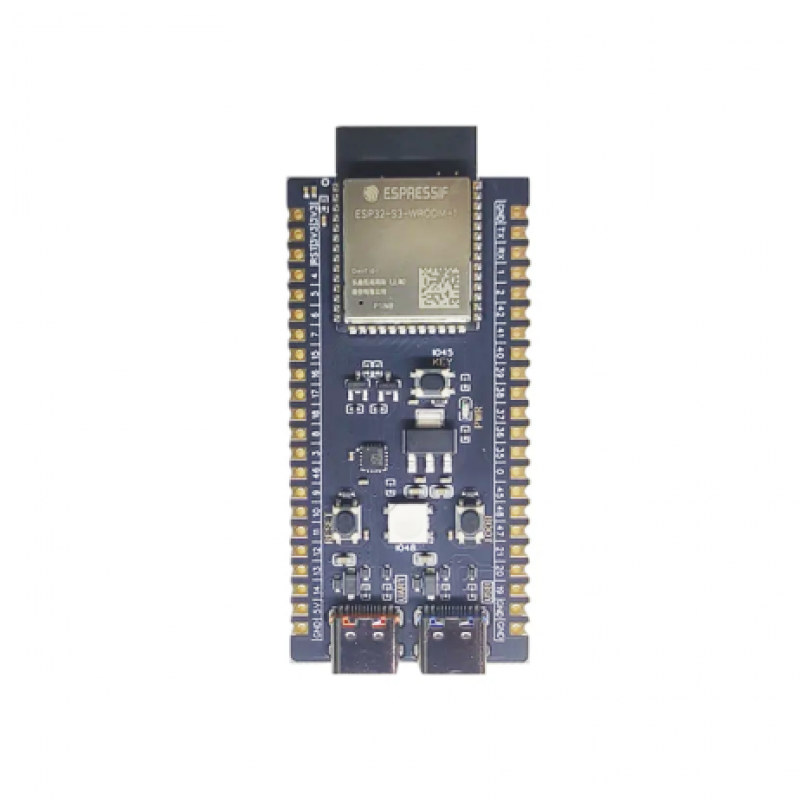

WeAct Studio ESP32-S3-DevKitC-1 ESP32-S3 WiFi Bluetooth-compatible BLE 5.0 Mesh Development Board ESP32 Wireless Module Micropython

Introducing the EWeAct Studio ESP32-S3-DevKitC-1 ESP32-S3 WiFi Bluetooth-compatible BLE 5.0 Mesh Development Board ESP32 Wireless Module Micropython, featuring robust wireless capabilities and versatile integration for various applications.

Features:

1. Supports Wi-Fi 802.11b/g/n in 1T1R mode, with data rates up to 150Mbps.
2. Supports Bluetooth 5.0 and Bluetooth-compatible mesh, with data rates of 125Kbps, 500Kbps, 1Mbps, and 2Mbps.
3. Equipped with Xtensa-R 32-bit LX7 dual-core processor, clocked up to 240MHz, with 512KB SRAM, 384KB ROM, and 16KB RTC SRAM.
4. Offers UART, GPIO, ADC, PWM, I2C, I2S, SPI, LCD, DVP, RMT, SDIO, MCPWM, DMA, USB OTG, USB Serial controller, TWAI controller interfaces, along with temperature sensor, pulse counter, and capacitive sensor GPIO.
5. Available in SMD-40 package for easy integration.
   Integrated Components: Integrates Wi-Fi MAC/BB/RF/PA/LNA and Bluetooth components for seamless operation.
6. Supports multiple sleep modes, with deep sleep current less than 8uA.
7. Supports serial port rates up to 6Mbps.
8. Supports STA, AP, STA+AP, and promiscuous modes for versatile connectivity.
9. Supports Smart Config (APP) and AirKiss (WeChat) for easy network configuration on Android and iOS platforms.
10. Allows for serial port local upgrade and remote firmware upgrade (FOTA) for convenient maintenance.
11. Offers general AT commands for quick setup and supports secondary development with integrated Windows and Linux development environments.

Package Includes:

1 x WeAct Studio ESP32-S3-DevKitC-1 ESP32-S3 WiFi Bluetooth-compatible BLE 5.0 Mesh Development Board ESP32 Wireless Module Micropython
