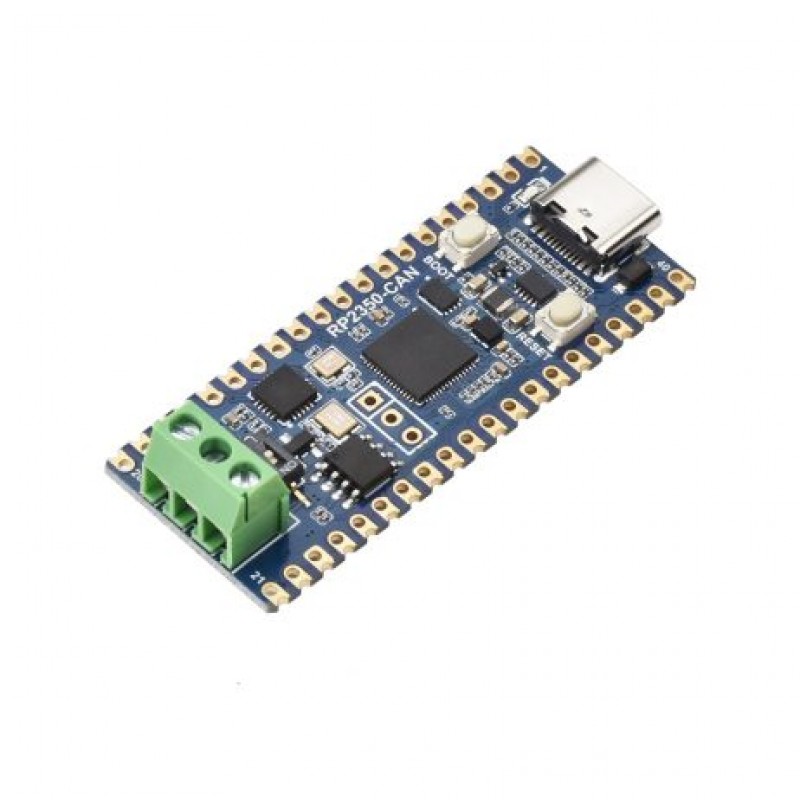

Waveshare RP2350 CAN Development Board Based On Raspberry Pi RP2350A with Onboard XL2515 CAN Controller

The Waveshare RP2350 CAN Development Board is built on the Raspberry Pi RP2350A microcontroller and features an onboard XL2515 CAN controller, providing a robust solution for CAN (Controller Area Network) communication. This development board is designed for easy integration into automotive, industrial, and embedded systems, enabling efficient communication between multiple devices.

The RP2350A microcontroller offers reliable processing power, while the XL2515 CAN controller ensures high-speed data transfer and robust fault tolerance. Ideal for developers working on CAN bus-based applications, this board supports a variety of use cases, making it a versatile tool for embedded and networked projects.

Features:

1. RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
3. 520KB SRAM and 4MB onboard Flash memory
4. Onboard XL2515 CAN controller, fully supports CAN V2.0B specification with communication rate up to 1 Mbps
5. Type-C connector, keeps it up to date, easier to use
6. Castellated module allows soldering directly to carrier boards
7. USB 1.1 with device and host support
8. Low-power sleep and dormant modes
9. Drag-and-drop programming using mass storage over USB
10. 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
11. Accurate clock and timer on-chip
12. Temperature sensor
13. Accelerated floating-point libraries on-chip
14. 12 Programmable I/O (PIO) state machines for custom peripheral support
