Waveshare RP2350 2inch Capacitive Touch Display Development Board, 240320 Pixels, IPS Panel, 262K Color without OV5640 Camera Module

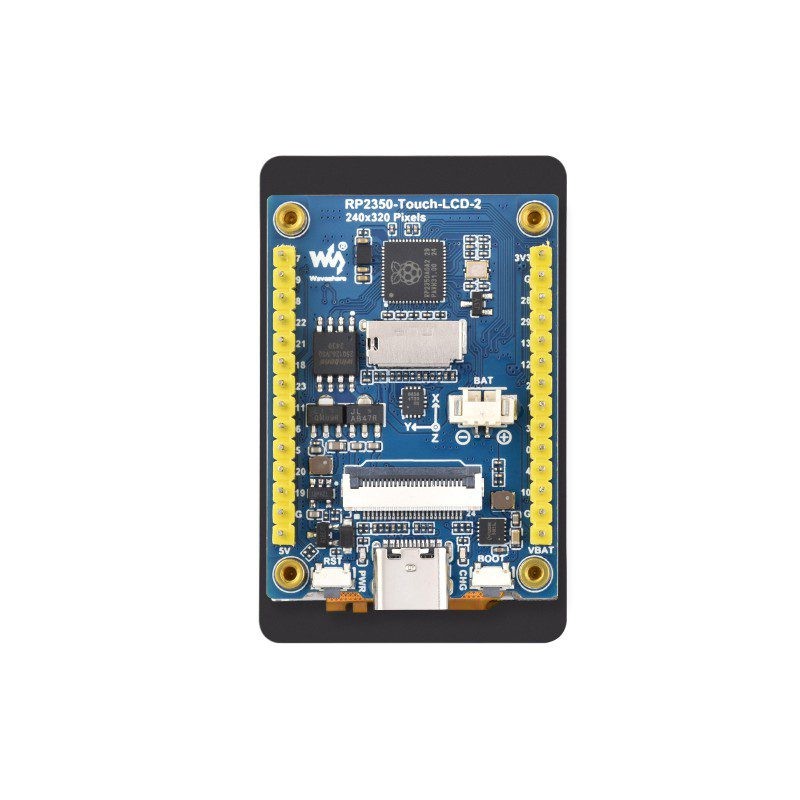

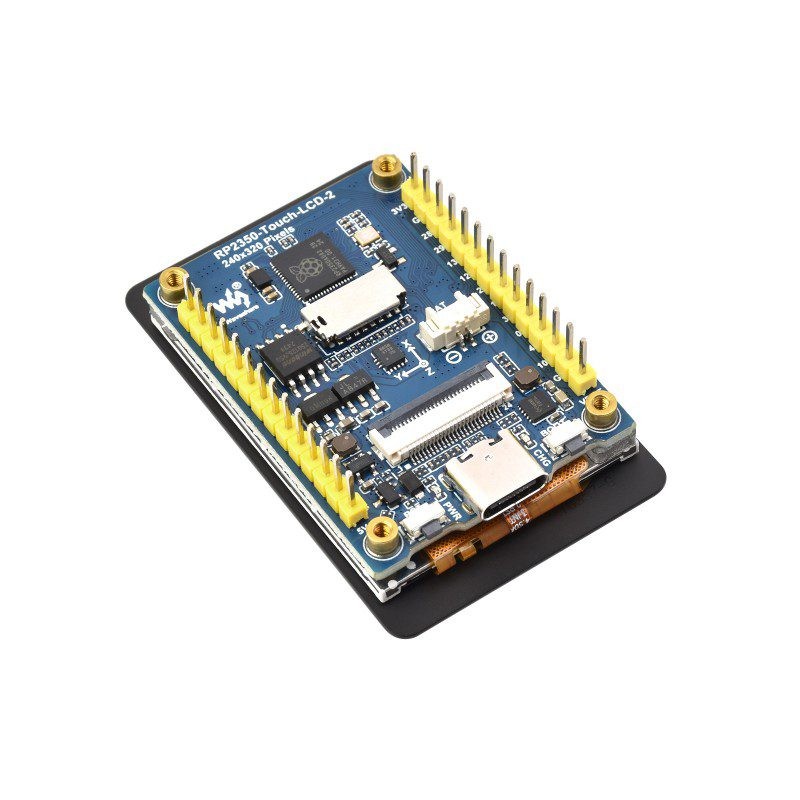

Waveshare RP2350 2inch Capacitive Touch Display Development Board is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch capacitive touch LCD, camera interface, TF card slot, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into the products quickly.

Features:

1. RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
3. 520KB SRAM and 16MB onboard Flash memory
4. Type-C connector, improving device compatibility, easier to use
5. Onboard 2inch capacitive touch display, 240 320 resolution, 262K color
6. Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition
7. Lithium battery recharge/discharge header, suitable for mobile devices
8. USB 1.1 with device and host support
9. Low-power sleep and dormant modes
10. Drag-and-drop programming using mass storage over USB
11. Adapting 22 GPIO pins for flexible configuration of pin function
12. 2 SPI, 2 I2C, 2 UART, 2 12-bit ADC, 14 controllable PWM channels
13. Accurate clock and timer on-chip
14. Temperature sensor
15. 12 Programmable I/O (PIO) state machines for custom peripheral support

Package Includes:

1 x RP2350-Touch-LCD-2
1 x OPTIONS OV5640 camera
