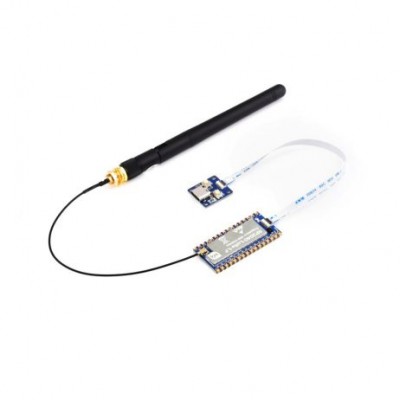

Waveshare RP2040-LoRa-LF Vesion Development Board, Integrates SX1262 RF Chip with USB Type-C adapter board + FPC cable

The Waveshare RP2040-LoRa-LF Version Development Board is a compact and powerful IoT development solution that integrates the RP2040 dual-core microcontroller with the long-range SX1262 LoRa RF chip. Designed for reliable low-frequency (LF) communication, this board supports frequencies in the 433MHz range, making it ideal for remote sensing, telemetry, and wireless data applications. With onboard USB Type-C connectivity, it ensures fast and easy programming while maintaining compatibility with Raspberry Pis RP2040 ecosystem, allowing seamless integration into existing development workflows.

This version includes a USB Type-C adapter board and an FPC cable, enabling flexible installation and versatile usage in tight spaces or custom enclosures. The SX1262 chip offers robust long-range communication with low power consumption, perfect for battery-operated IoT devices. Whether youre developing smart agriculture solutions, environmental monitoring systems, or custom wireless networks, the RP2040-LoRa-LF development board provides the tools and connectivity needed to bring your ideas to life.

Note: HF image is only for reference.

Frequency:

1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
3. 264KB of SRAM, and 2MB of onboard Flash memory.
4. Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board.
5. Castellated module allows soldering directly to carrier boards.
6. USB 1.1 with device and host support.
7. Low-power sleep and dormant modes.
8. Drag-and-drop programming using mass storage over USB, up to 20 multi-function GPIO pins.
9. Supports FSK, GFSK, and LoRa modulation, featuring better anti-blocking and ultra-long distance communication.
10. With -148dBm high reception sensitivity and programmable emit power up to 22dBm.
11. Supports preamble detection, with CRC, up to 256-byte data packet engine.
12. Comes with online resources and manual (example in C).

Package Includes:

1 x Waveshare RP2040-LoRa Development Board
1 x 2DB antenna 423~443MHz ~11cm
1 x IPEX 1 to SMA adapter cable ~17cm
1 x USB Type-C adapter board
