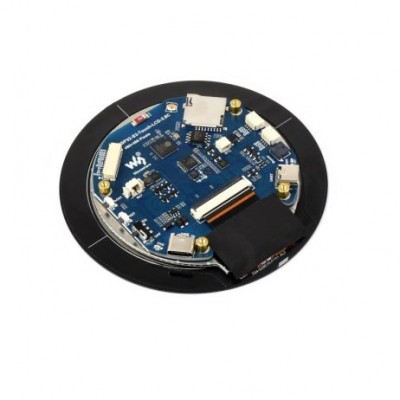

Waveshare ESP32-S3 2.8inch Capacitive Touch Round Display Development Board
- Product Code: EPI27724
- Availability: Out Of Stock
-
Rs.4106.00
- (Excluding 18% GST)
OR
Waveshare ESP32-S3 2.8inch Capacitive Touch Round Display Development Board is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM.
Onboard 2.8inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
Features:
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.81 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Onboard 2.8inch capacitive touch display, 480480 resolution
- Supports touch control via I2C interface, with interrupt support
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
- Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Package Includes:
1 x Waveshare ESP32-S3 2.8inch Capacitive Touch Round Display Development Board
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
