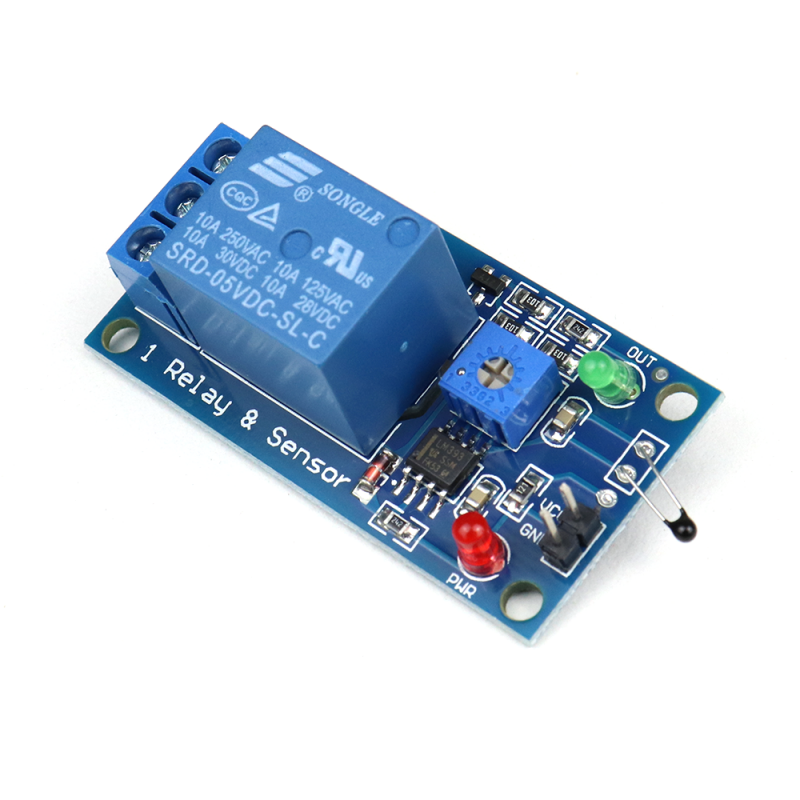

Thermal Sensor Relay Module
- Product Code: EPI21964
- Availability: 14
-
Rs.142.00
- (Excluding 18% GST)
OR
This is a Thermal Sensor Relay Module. It uses a temperature detection via potentiometer adjustment to a valve to control the corresponding temperature with relay output, directly connected to the AC high-power products.
Package Includes:
1 x Thermal Sensor Relay Module.
Specifications :-
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Maximum Voltage(V) | 5V DC |
| Maximum Operating Current (A) | 0.15 |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (C) | -40 to 100 |
| Opt. Relative Humidity(RH) | 20% 85% |
| Storage condition () | -40 to 125 |
| Length (mm) | 50 |
| Width (mm) | 26 |
| Height (mm) | 17 |
| Weight (gm) | 16 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 341.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
