Black WG26/34 125KHz RFID Contactless IP65 Smart Card Reader

This is Black WG26/34 125KHz RFID Contactless IP65 Smart Card Reader, a device used for reading RFID cards or tags in various applications.

Features:

1. 25KHz RFID Reader: Works with RFID cards/tags operating at 125KHz frequency.
2. WG26/34 Interface: Supports Wiegand 26-bit or 34-bit communication protocols.
3. Contactless Smart Card Reader: Allows card reading without physical contact.
4. IP65 Rating: Resistant to dust and water, suitable for outdoor or harsh environments.

Specifications:

1. Type: Card Reader
2. Card Type: ID
3. Material: ABS+PC with texture
4. Frequency: 125KHz (optional 13.56MHz)
5. Support cards: TK4001/ EM4100 etc.
6. Output Format: 26bit/34bit Wiegand (default)
7. LED Indicator: 2 Colour LED Indicators(Red and Green)
8. Beeper: Yes
9. Operating Temperature -25C ~ +75C

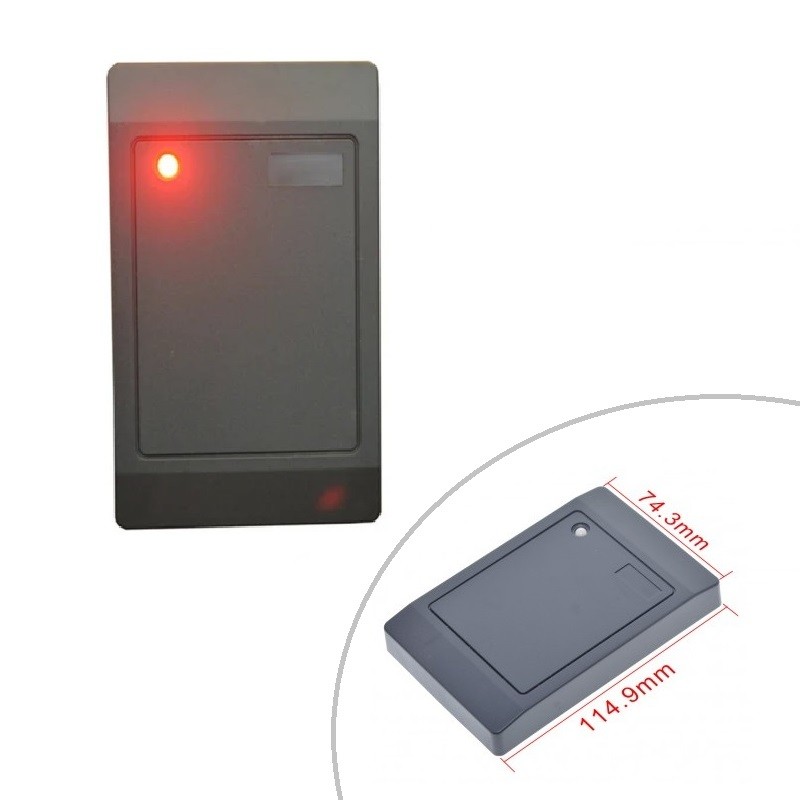

10. Dimension: 115*72*16mm
11. Power / Current: DC 6-14V / Max.70mA
12. Input Port: 2ea (External LED Control, External Buzzer Control)
13. Weight: 130g
14. Index of Protection: IP65

Package Includes:

1 x Black WG26/34 125KHz RFID Contactless IP65 Smart Card Reader
