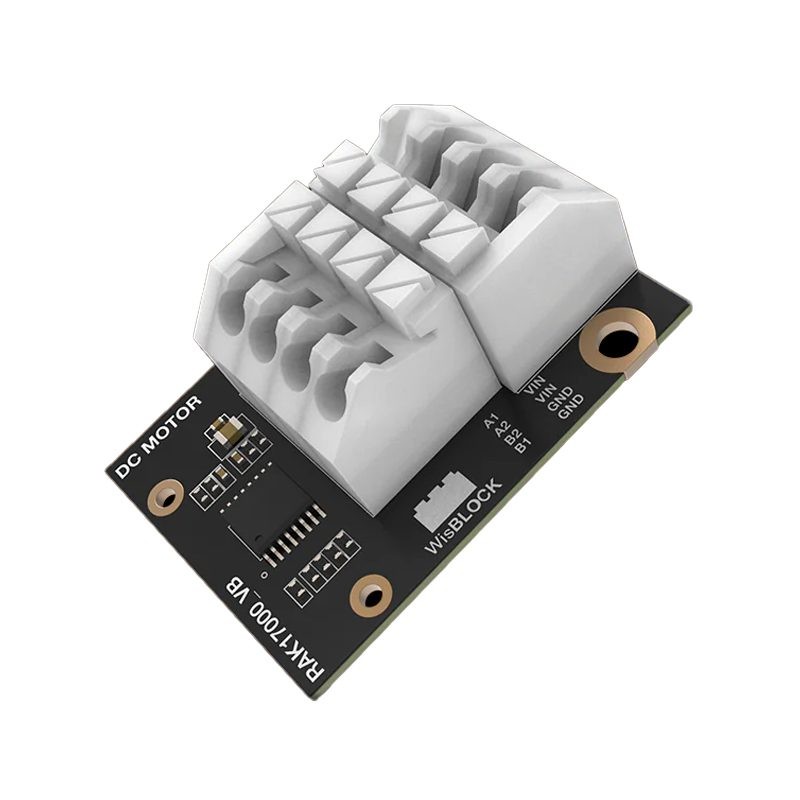

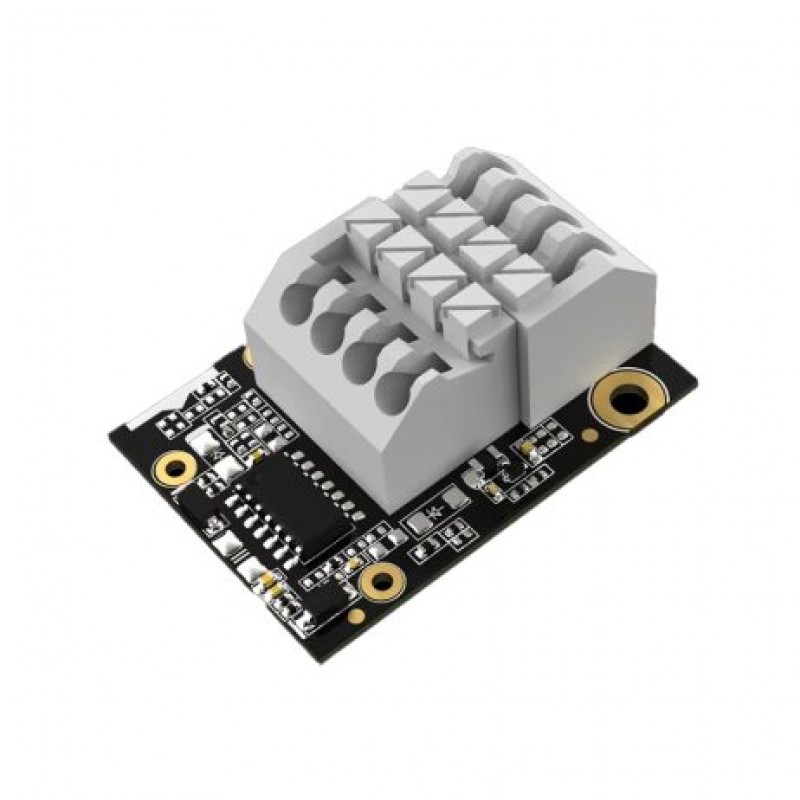

RakWireless WisBlock Motor

The RAK17000 WisBlock Motor Control Module is a compact motor driver module using the Texas Instruments DRV8833 chip. It supports one stepper or two DC motors, operating between 2.7 V and 10.8 V. Designed for robotics and automation, it features current control and dual power sourcing via jumper (external or battery). Compatible with WisBlock Base Boards, it provides a reliable, flexible, and efficient motor control solution in a 2535 mm form factor.

Features:

1. Supports two DC motors or one stepper motor
2. Motor power from external source or WisBlock Base battery
3. Wide input voltage range: 2.7 V to 10.8 V
4. Output current control capability
5. Low power sleep mode (1.62.5 A)
6. DRV8833 IC ensures efficient, reliable operation
7. Easy integration with WisBlock Base Boards
8. Jumper-based power source selection for flexibility

Applications:

1. Battery-Powered Mechanical Devices
2. Automation Machines
3. Robotics
