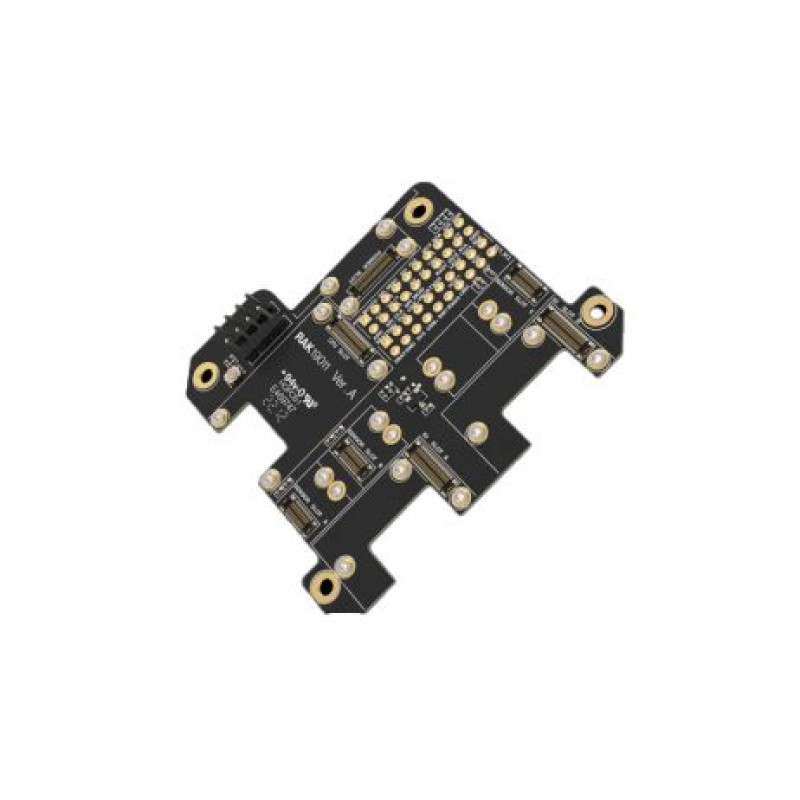

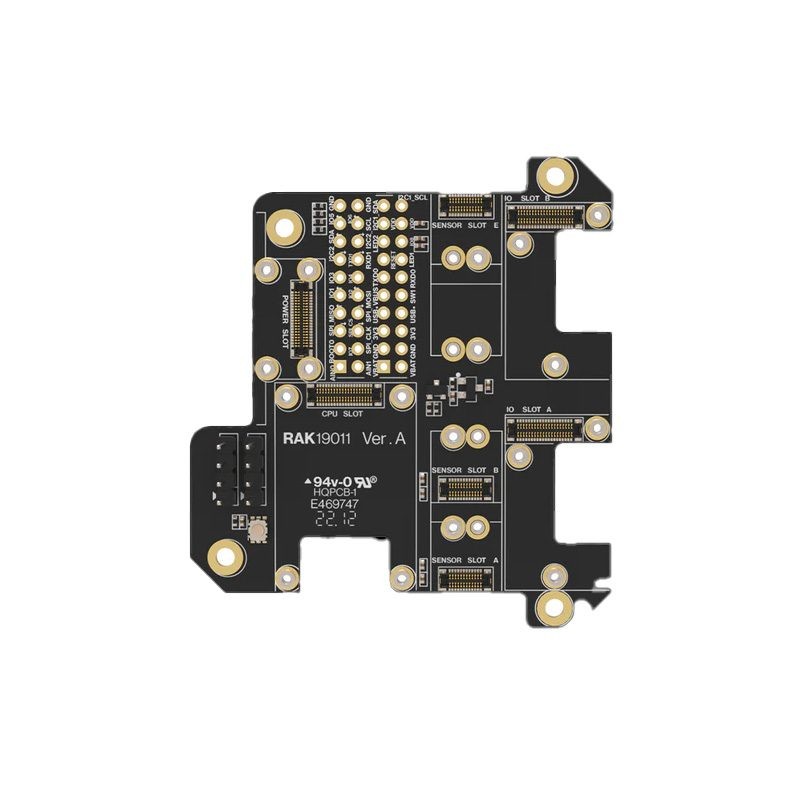

RakWireless Dual IO Base Board with Power Slot RAK19011

The RAKWireless Dual IO Base Board with Power Slot RAK19011 is a compact and highly versatile base board designed as part of the next-generation WisBlock ecosystem. With dimensions of just 60 x 67 mm, it features one WisBlock Core slot, two IO slots, and six sensor slots, making it ideal for building customized, modular IoT and industrial solutions. What sets the RAK19011 apart is its independent power designthe power supply is not integrated into the base board but is provided through dedicated WisBlock Power Boards.

This allows developers to choose the most suitable power configuration for their application, whether its USB-powered, battery-powered (rechargeable or non-rechargeable), solar-powered, PoE, or via a variable 524V DC source. This flexibility makes it perfect for both consumer and industrial environments, especially where secure firmware access control is needed. The RAK19011 supports a variety of low-power MCUs and uses high-speed interconnection connectors to maintain signal integrity, ensuring reliable performance in demanding deployments.

Features :

1. Compact size: 60 x 67 mm
2. Modular design with 1 Core, 2 IO, and 6 sensor slots
3. Separate power board interface for flexible power options
4. Compatible with USB, battery, solar, DC (524V), and PoE power sources
5. Industrial-grade signal integrity and build quality
6. Supports low-power MCU modules
7. High-speed interconnection connectors
8. Power board options for firmware access control
9. Ideal for IoT and industrial applications.

Package Includes :

1 x RakWireless Dual IO Base Board
