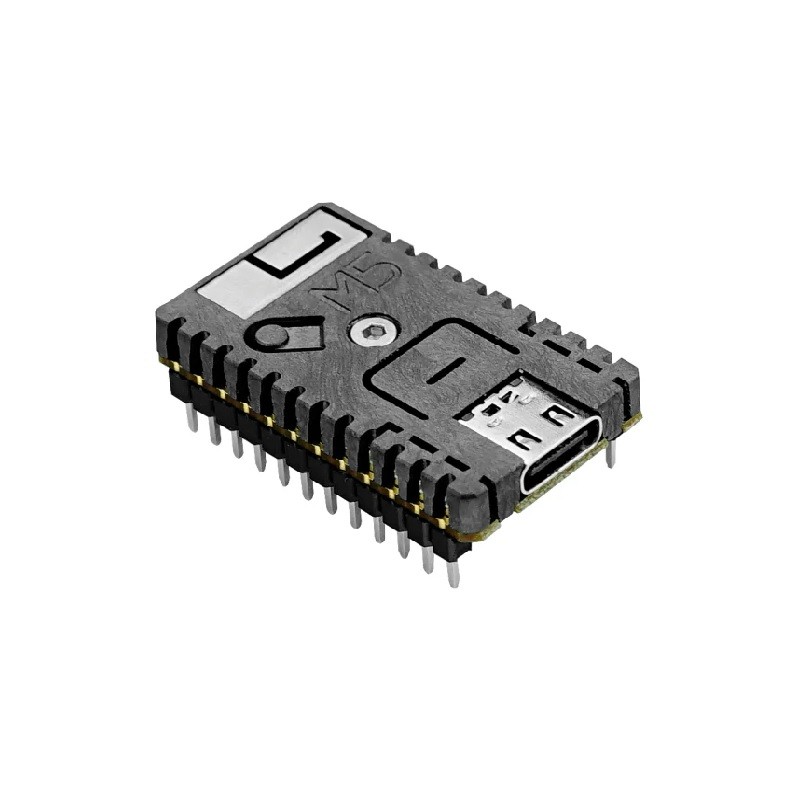

M5Stack C3 Mate with Pin Headers

This is M5Stack C3 Mate with Pin Headers .

M5Stack just added a new family to its popular series of modules with the Stamp-C3. the new Stamp-C3 featuring ESPRESSIF ESP32-C3RISC-VMCU withWi-Ficonnectivity for IoT edge devices such as home appliances and Industrial Automation. By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, while also make it optimal for industrial IoT equipment collecting sensor data within a factory or a building.

The Stamp-C3 is based on32-bit RISC-Vmicrocontroller and operates at a maximum clock frequency of160 MHz. With 400 KB of internal RAM and4 MB Flash, it can facilitate many different use-cases involving connected devices. Furthermore, the exceptional heat resistance plastic enclosure is sustained at a higher operating temperature

Applications:

1. DIY Prototyping
2. Home Appliances
3. Industrial Automation

Driver Installation:

Click the link below to download the driver that matches the operating system. select the installation package corresponding to the number of operating systems to install. During the installation process ofCH9102_VCP_SER_MacOS v1.7, an error may occur, but the installation is actually completed, just ignore it.) When using it, if If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.

Example:

• RGB LED Control

Features:

1. Three types soldering options are available(SMT, DIP, fly wire)
2. With a high-temperature resistant plastic enclosure
3. High Integration
4. Stamp-C3 contains 5V->3.3V DC/DC design
5. GPIOx13
6. programmable RGB LED x1
7. 1 x Reset button
8. 3D antenna, providing stable and reliable wireless communication
9. Stamp-C3 fully compatible with Arduino
10. ESP32-IDF, and other mainstream development platforms to quickly build various applications

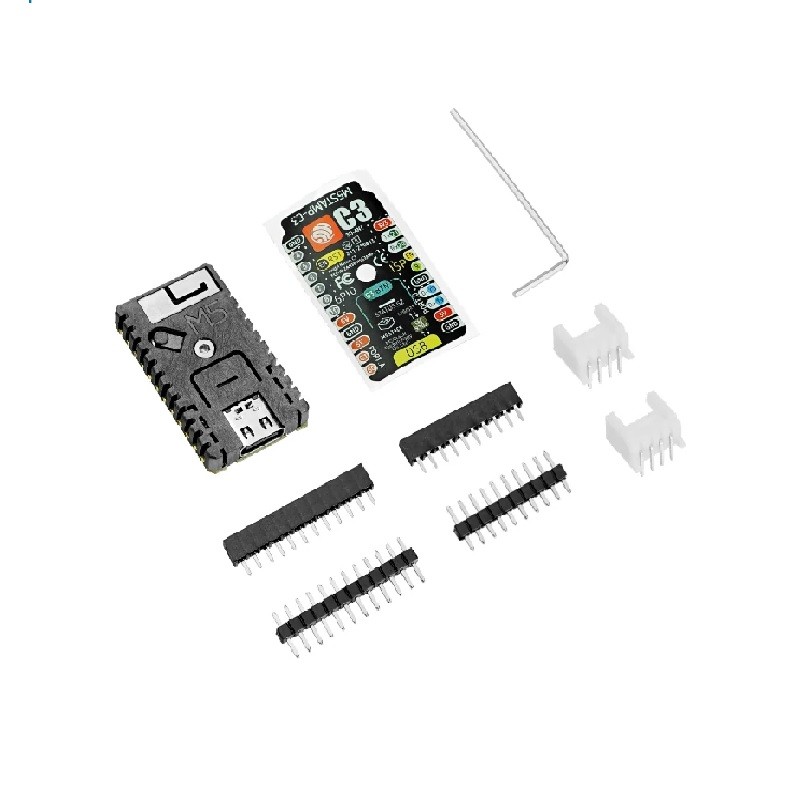

Packages Includes:

1 x M5Stack M5Stamp C3 Mate with Pin Headers
